Toyota COROLLA 挡泥板和扰流板 — Figure 7601

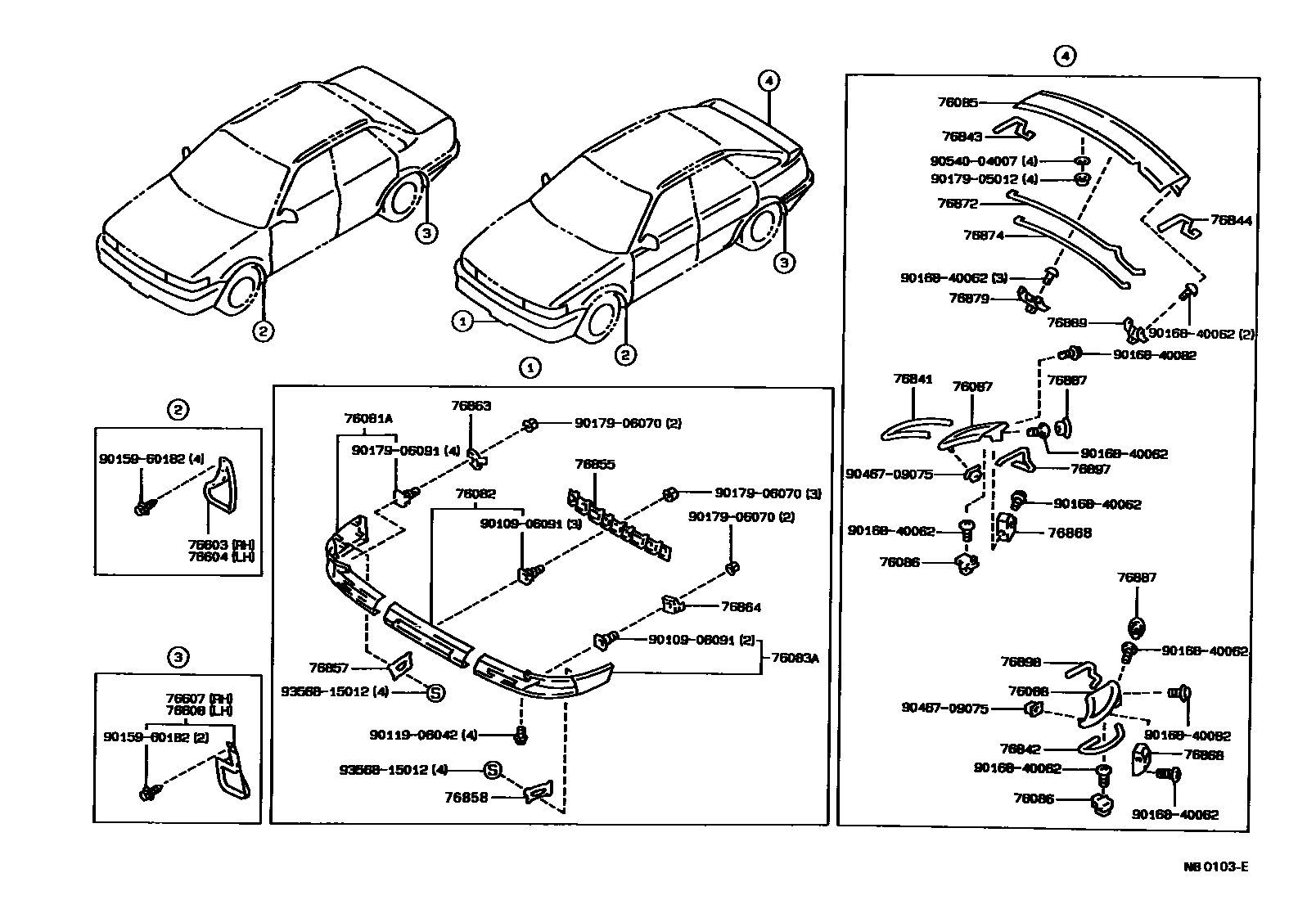

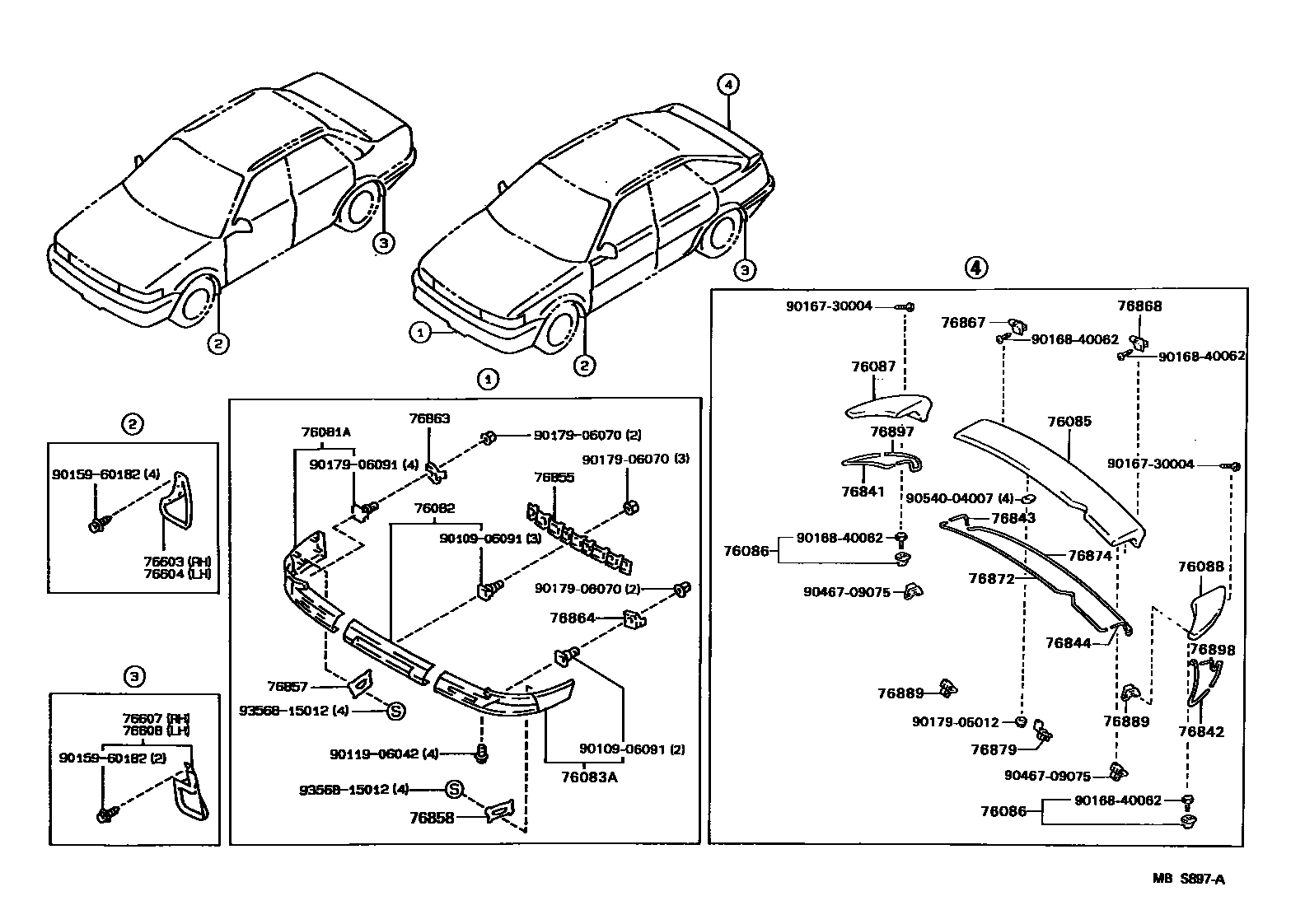

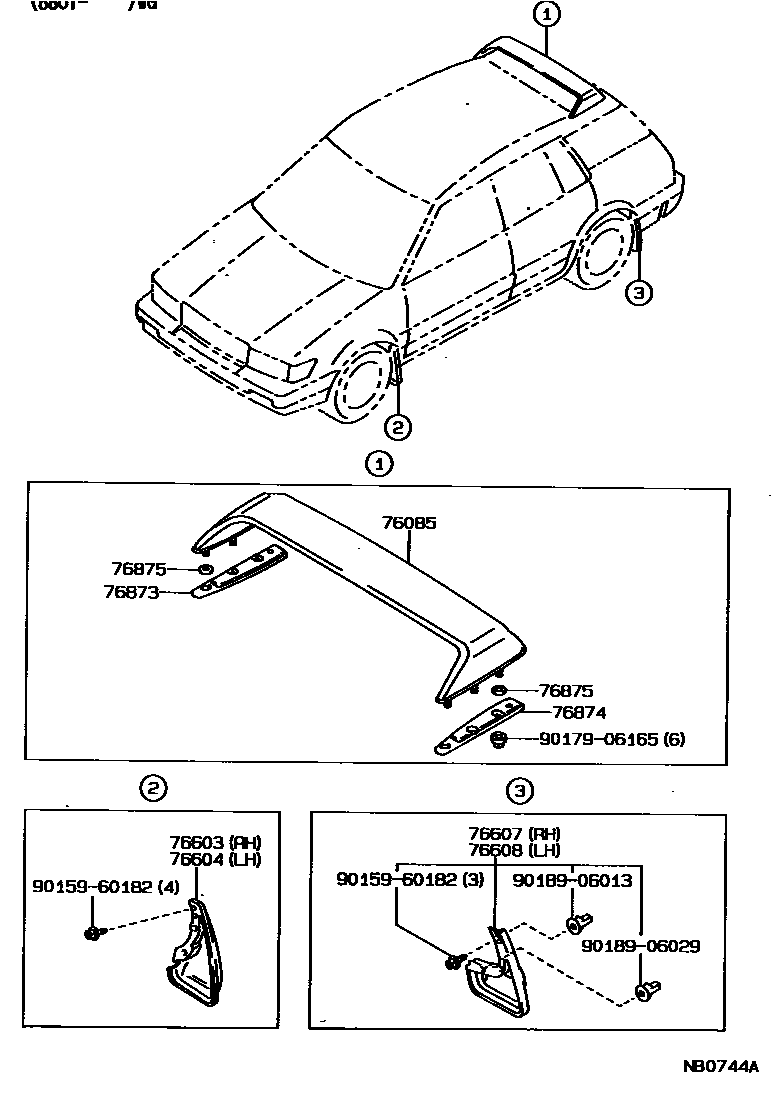

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76081A | Right front spoiler sub-assembly | 76081-12070 |
| 76082 | Front center spoiler sub-assembly | 76082-12030 |
| 76083A | Left front spoiler sub-assembly | 76083-12050 |
| 76085 | Rear spoiler sub-assembly | 76085-12160 · 76085-12901 · 76085-12904 |
| 76086 | Rear spoiler fixing sub-assembly | 76086-12050 |
| 76087 | No. 1 rear spoiler sub-assembly | 76087-12900 · 76087-12901 |
| 76088 | No. 2 rear spoiler sub-assembly | 76088-12900 · 76088-12901 |
| 76603 | Right front fender fender sub-assembly | 76621-12050 |
| 76604 | Left front fender fender sub-assembly | 76622-12050 |
| 76607 | Right rear side fender sub-assembly | 76625-19245 · 76625-19265 |
| 76608 | Left rear side fender sub-assembly | 76626-19255 · 76626-19275 |
| 76841 | No. 5 right rear spoiler protective strip | 76841-12020 · 76841-12030 |
| 76842 | No. 5 left rear spoiler protective strip | 76842-12020 · 76842-12030 |
| 76843 | No. 11 right rear spoiler protective strip | 76843-12010 |
| 76844 | No. 11 left rear spoiler protective strip | 76844-12010 |
| 76855 | No. 1 front center spoiler lower fixing piece | 76855-12070 |
| 76857 | Right front spoiler fixing | 76857-12060 |
| 76858 | Left front spoiler fixing | 76858-12060 |
| 76863 | No. 2 right front spoiler fixing piece | 76863-12060 |
| 76864 | No. 2 left front spoiler fixing piece | 76864-12030 |
| 76867 | Right rear spoiler fixing | 76867-12080 |
| 76868 | Left rear spoiler fixing | 76868-12030 · 76868-12070 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12060 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12080 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12080 · 76874-12090 |
| 76875 | No. 4 rear spoiler protective strip | 76875-17010 |
| 76879 | No. 1 rear spoiler clip | 76879-12010 |
| 76887 | Rear spoiler seal | 76887-12010 |
| 76889 | No. 2 rear spoiler clip | 76889-12010 |
| 76897 | Right rear spoiler protection strip | 76897-12020 · 76897-12030 |
| 76898 | Left rear spoiler protection strip | 76898-12020 · 76898-12030 |
