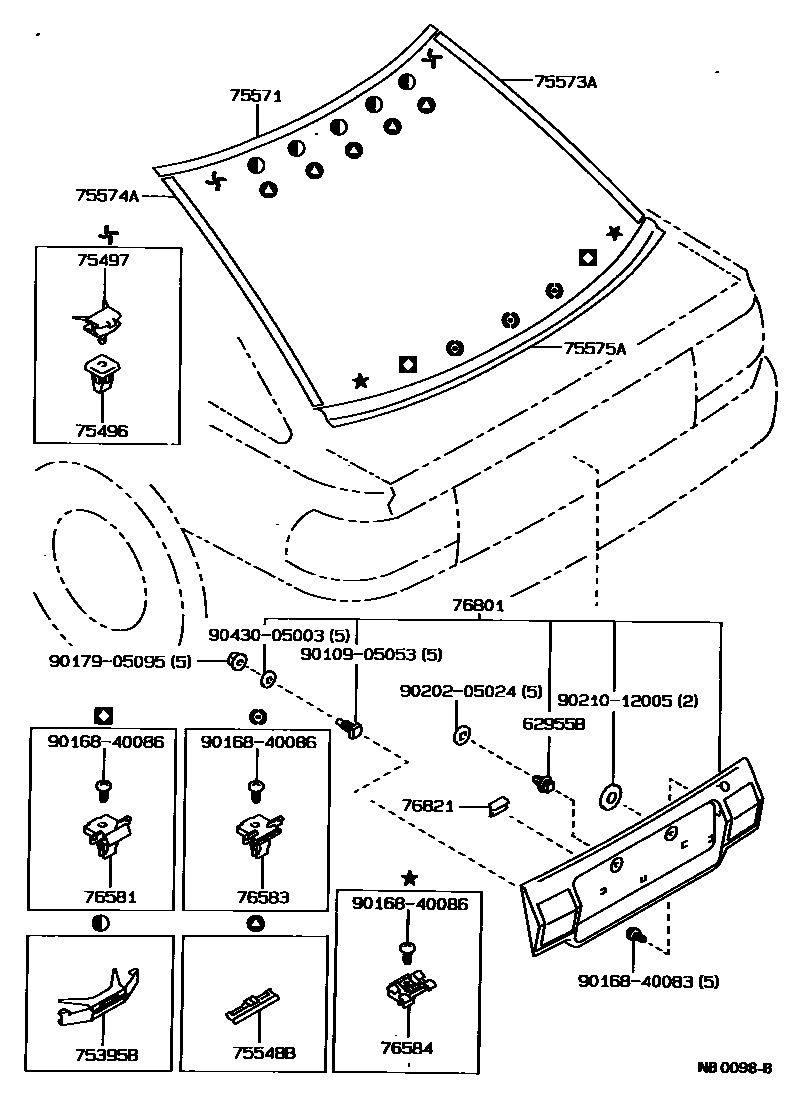

Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62955B | Rear door decorative strip fasteners | 62955-12010 |
| 75395B | No. 1 rear door protective strip clip | 75395-12080 |
| 75496 | No. 1 rear window protective strip clip | 75496-12020 · 76671-12010 |
| 75497 | No. 2 rear window protective strip clip | 75898-12030 · 75898-12040 |
| 75547B | No. 3 windshield outer protective strip clip | 75547-12040 |
| 75548B | Rear window protective strip fasteners | 75548-16030 · 75549-20080 |
| 75571 | Protective strips on the outside of the rear window | 75507-12040 · 75571-12270 · 75571-12280 · 75571-12390 · 75571-12400 |
| 75573A | Right outer protective strip of back window | 75573-12250 · 75573-12260 · 75573-12261 |
| 75574A | Rear window left outer protective strip | 75574-12140 · 75574-12150 · 75574-12151 |
| 75575A | Lower protective strip on the outside of the rear window | 75575-12210 · 75575-12220 · 75575-12250 · 75575-12260 · 75575-12300 · 75575-12301 |
| 76581 | Rear window protective strip fixings | 76581-12010 · 76581-12020 · 76581-12040 |
| 76583 | Fixing piece for the lower right protective strip outside the rear window | 76583-12010 · 76583-12030 · 76583-12040 |
| 76584 | Lower left protective strip fixing piece on the outer side of the rear window | 76584-12010 · 76584-12020 |
| 76671C | Back window protection strip clip | 76671-12010 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-12240 · 76801-12250 · 76801-12260 |
| 76817 | Rear door exterior decorative strip clip | 76817-12040 |
| 76821 | Protective cover for rear door trim strip | 76821-12040 |
