Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

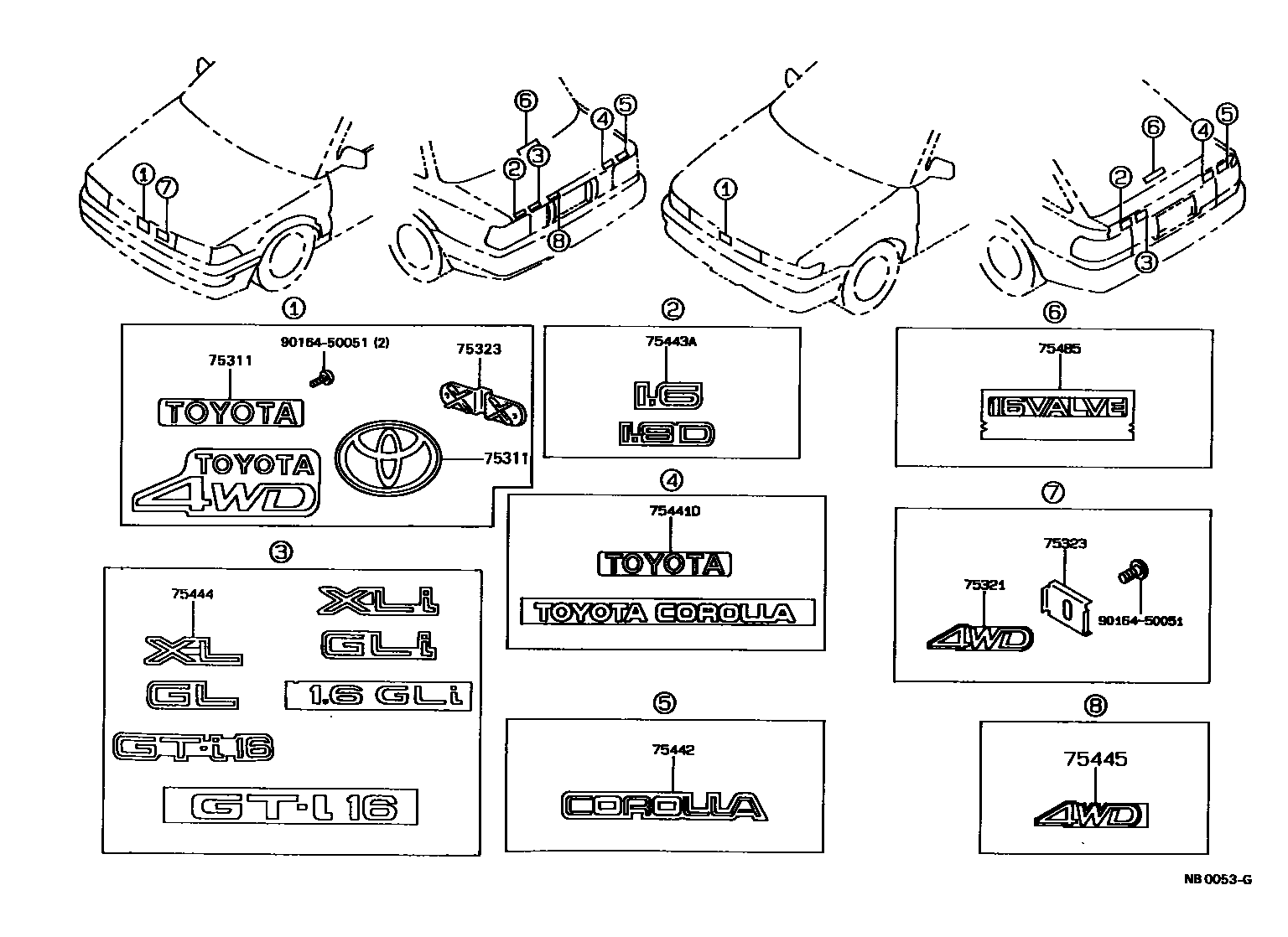

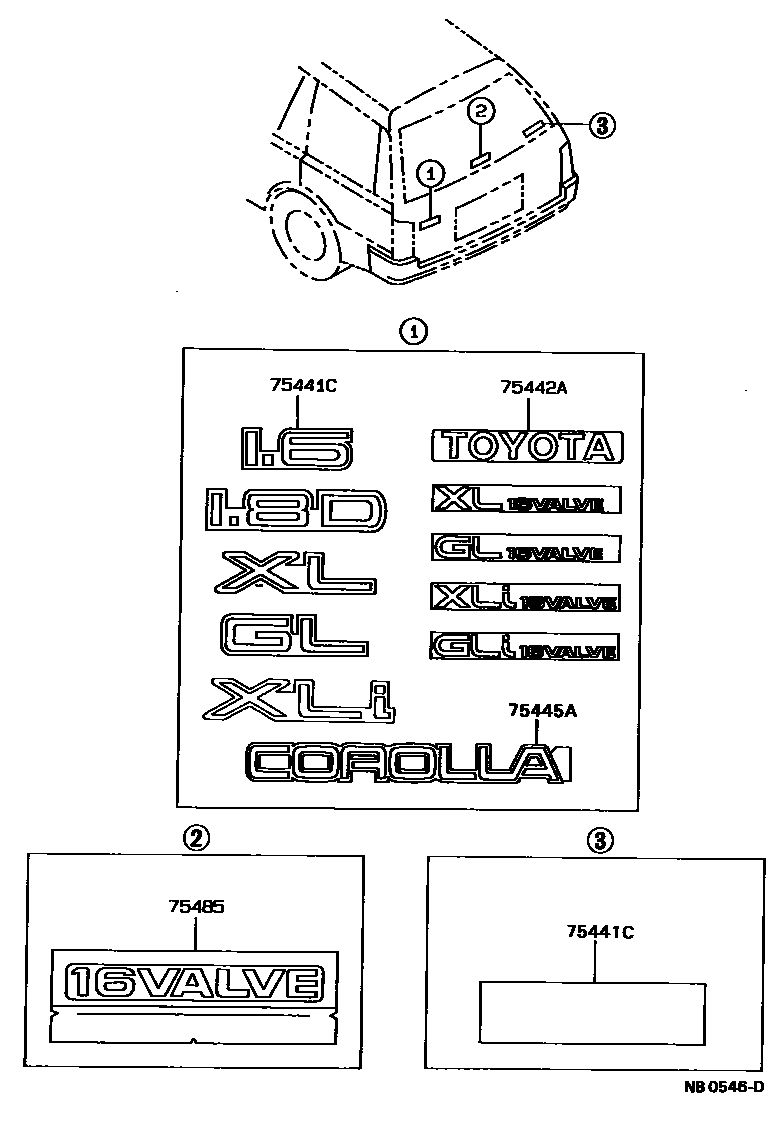

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A460 · 75311-1A461 · 75311-1A500 · 75311-1A570 · 75311-1A680 |
| 75321 | Radiator grille or front plate | 75321-12330 |
| 75323 | Radiator grille fixings | 75324-12170 · 75324-12220 |
| 75441C | Back door nameplate | 75441-12530 · 75441-13040 · 75441-13050 · 75441-13060 · 75441-13070 · 75441-13080 |
| 75441D | Trunk door No. 1 name plate | 75441-12460 · 75441-12490 |
| 75442 | Trunk door number plate No. 2 | 75442-12860 · 75442-12880 |
| 75442A | No. 2 nameplate on back door | 75442-13070 · 75442-1A050 · 75442-1A060 · 75442-1A070 · 75442-1A080 |
| 75443A | Trunk door No. 3 nameplate | 75443-1A200 · 75443-1A210 · 75443-1A220 · 75443-1A230 |
| 75444 | Trunk door No. 4 nameplate | 75444-12280 · 75444-12290 · 75444-12390 · 75444-12400 · 75444-12410 · 75444-12470 · 75444-12480 · 75444-12650 · 75444-12660 |
| 75445 | Trunk door No. 5 name plate | 75445-12110 |
| 75445A | No. 5 nameplate on back door | 75445-13020 |
| 75485 | Back window nameplate | 75485-12080 · 75485-12090 |
