Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

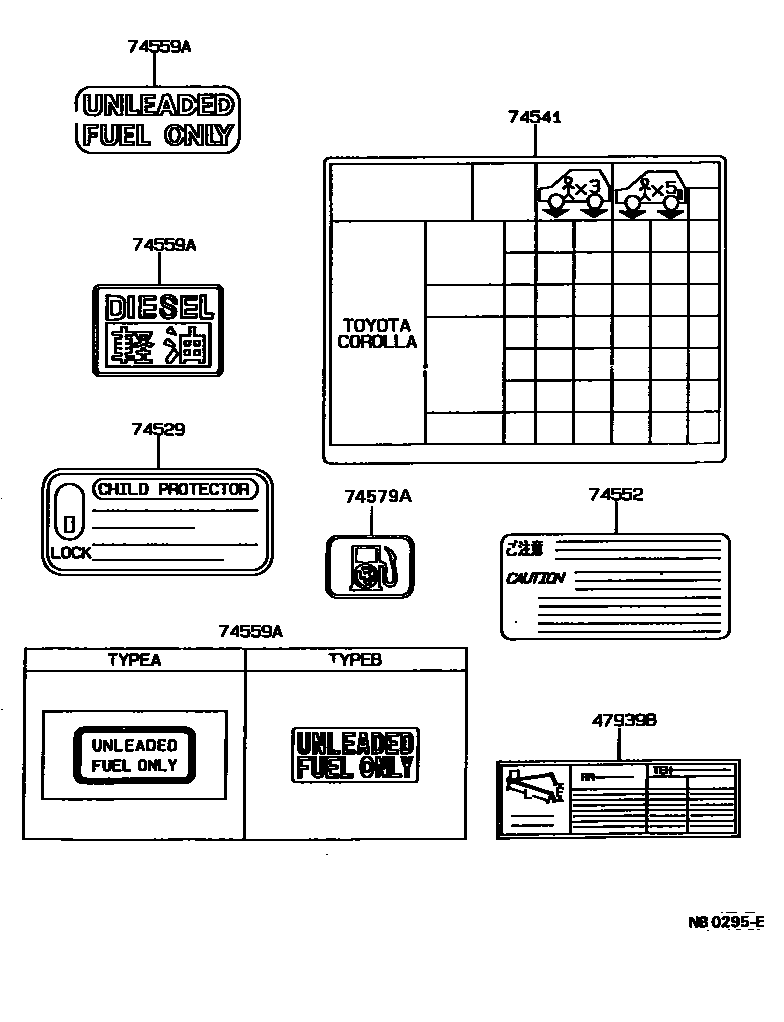

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47939B | Load sensing valve marking information label | 47939-12010 · 47939-12020 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-12890 · 42661-1A010 · 42661-1A020 |
| 74552 | Safety warning nameplate | 74552-12290 |
| 74559A | Fuel warning plate | 74559-12040 · 74559-14030 · 74559-14050 |
| 74579A | Unleaded Fuel Information Label | 74579-95701 |
