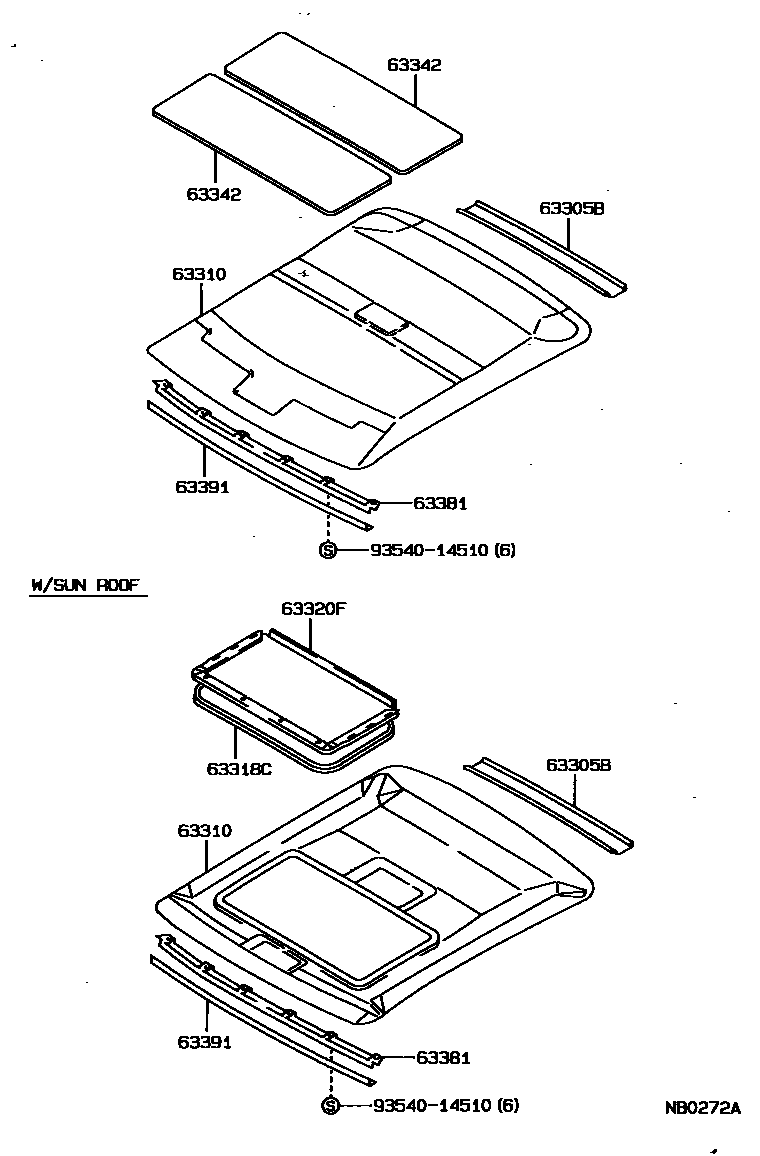

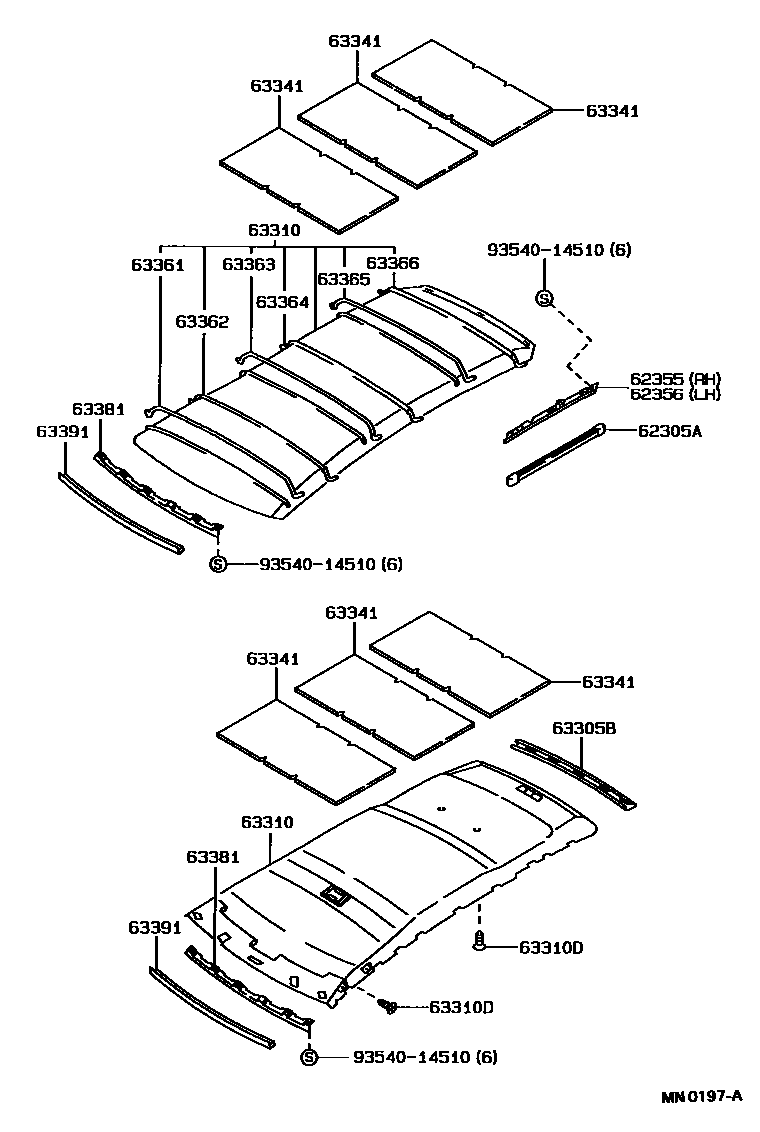

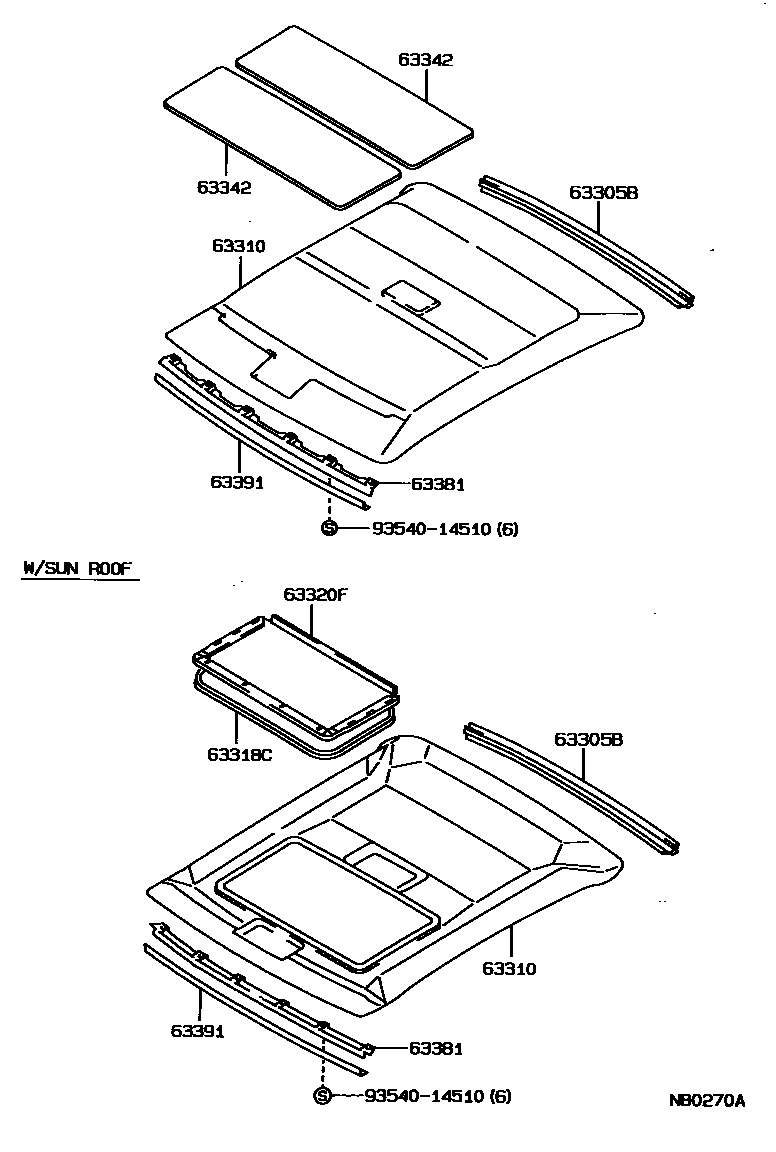

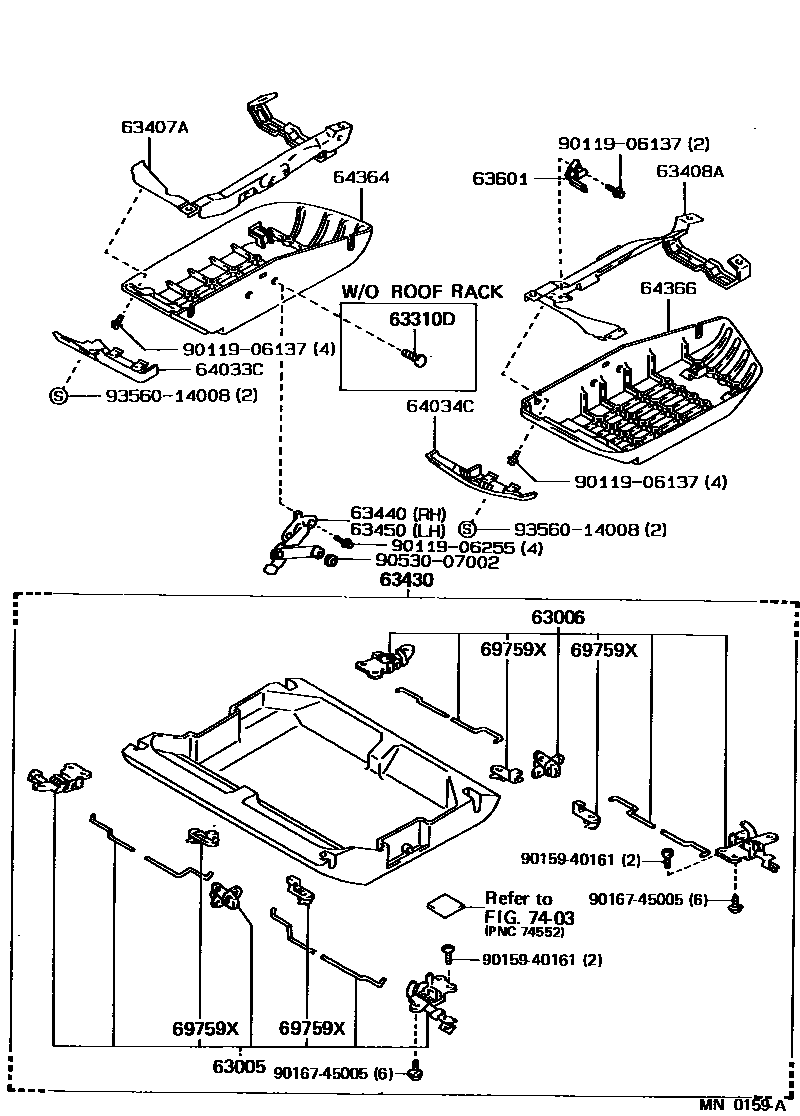

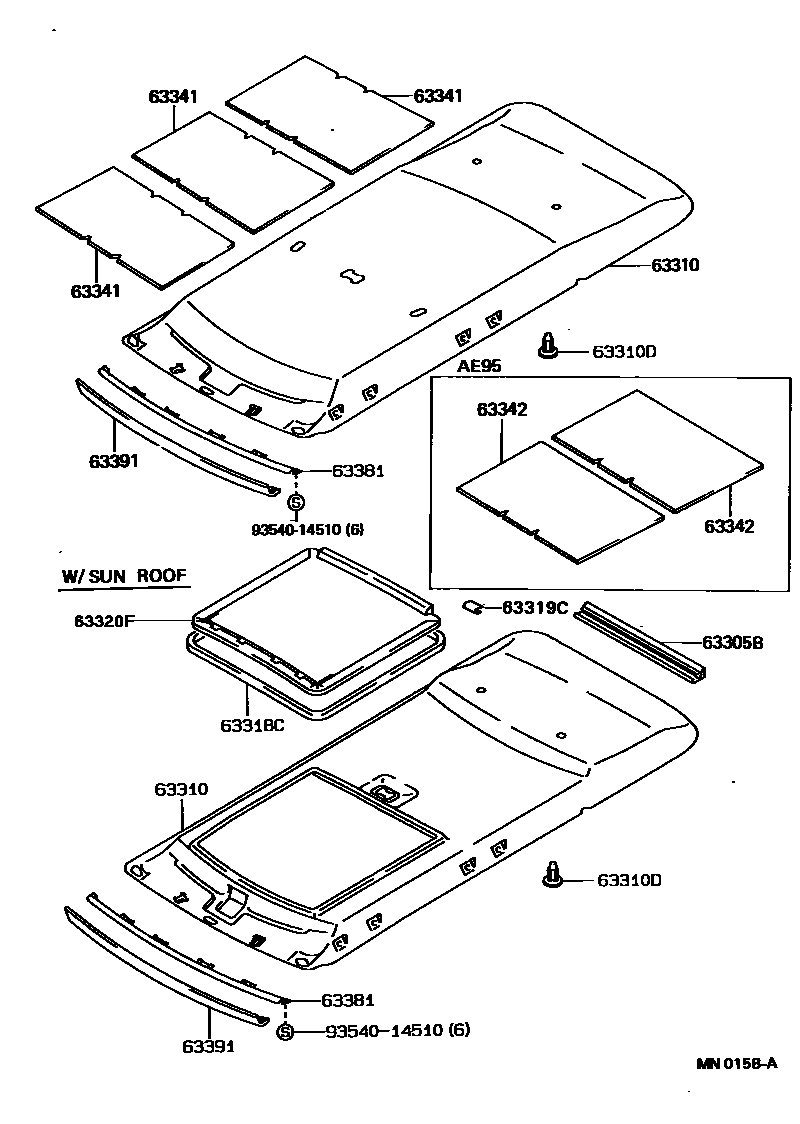

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62355 | Right corner window inner trim strip fixing | 62355-13010 |
| 62356 | Left corner window inner trim strip fixing | 62356-13010 |
| 63341 | No. 1 roof silencer mat | 63341-13090 · 63343-12050 |
| 63342 | No. 2 roof muffler pad | 63343-12050 |
| 63361 | Headlining bracket No. 1 | 63361-13040 |
| 63362 | Headlining bracket No. 2 | 63364-13020 |
| 63363 | No. 3 roof lining bracket | 63362-13030 |
| 63364 | No. 4 roof lining bracket | 63362-13030 |
| 63365 | No. 5 headliner bracket | 63363-13040 |
| 63366 | No. 6 roof lining bracket | 63363-13040 |
| 63381 | Front lining fastener | 63381-12150 · 63381-12190 |
| 63407A | Roof right inner luggage rack bracket sub-assembly | 63407-12010 |
| 63408A | Roof left inner luggage rack bracket sub-assembly | 63408-12010 |
| 63440 | Roof right inner luggage rack hinge assembly | 63440-12010 |
| 63450 | Roof left inner luggage rack hinge assembly | 63450-12010 |
| 63601 | Roof rack latch sub-assembly | 63601-12010 |
| 69759X | Inner roof rack lock buckle | 69759-30040 |
