Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 4 images and 3 PNC and OE references.

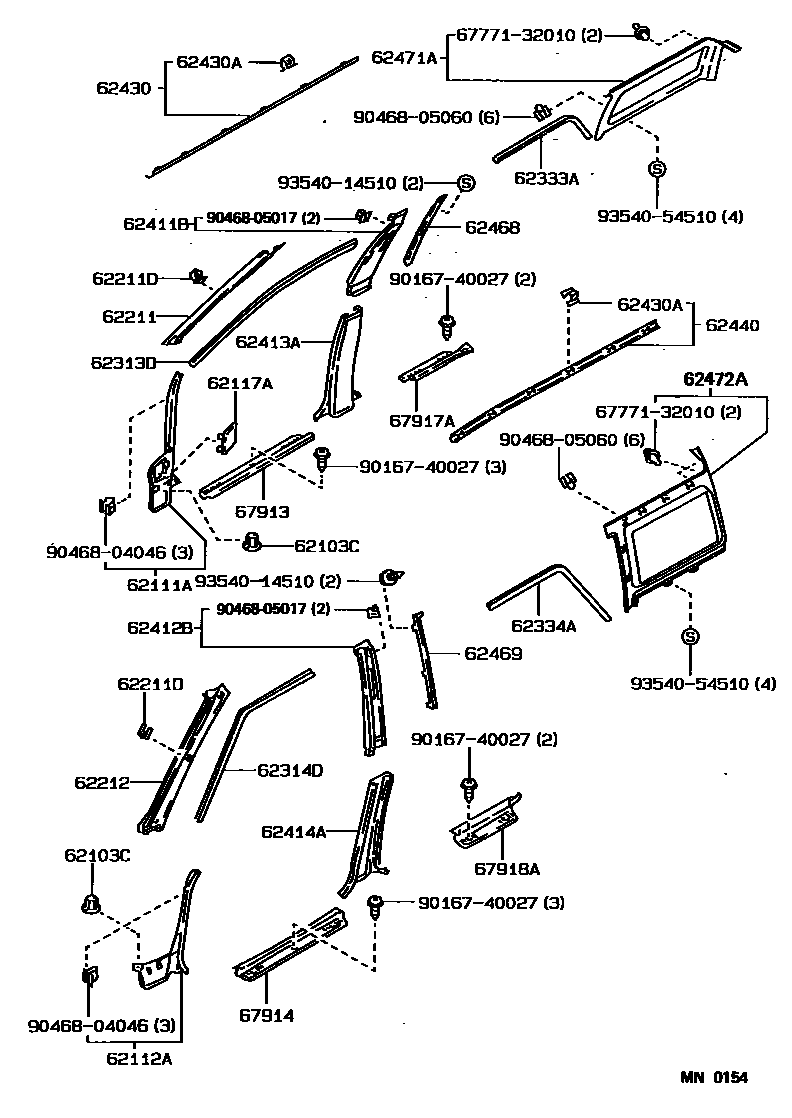

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MN0154
内饰板和车门防水胶条 — MN0154 (198802 – 999999)

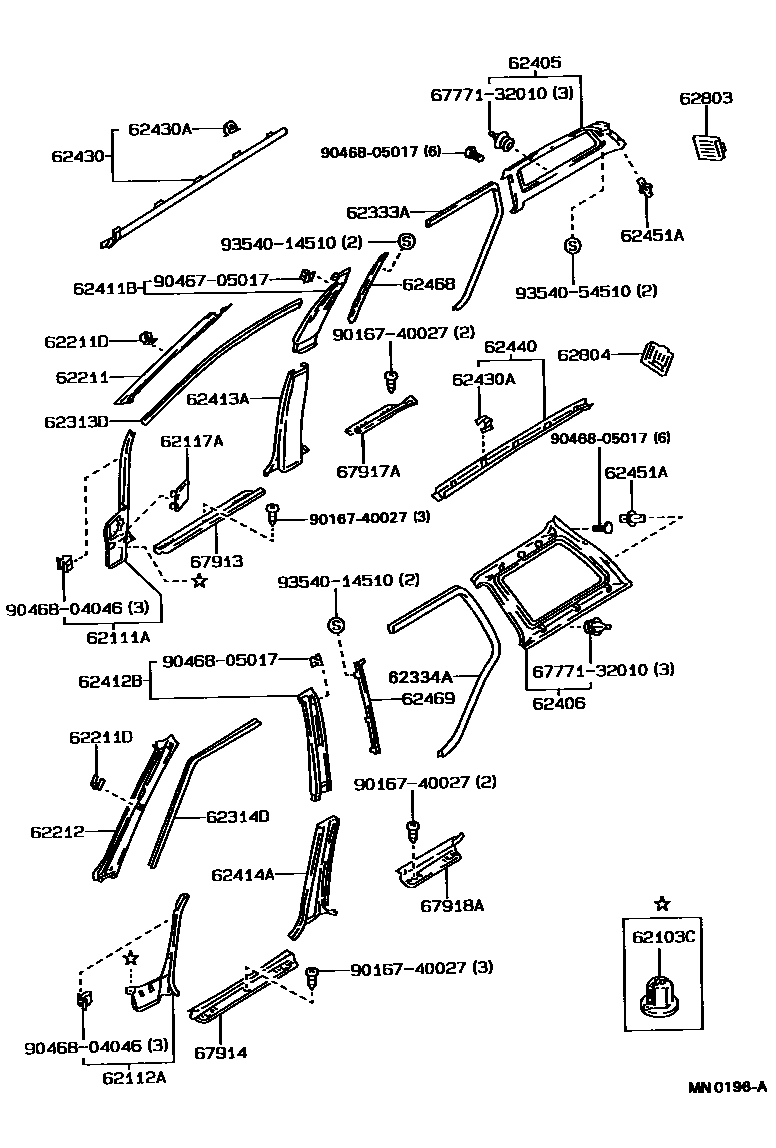

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MN0196A
内饰板和车门防水胶条 — MN0196A (198708 – 999999)

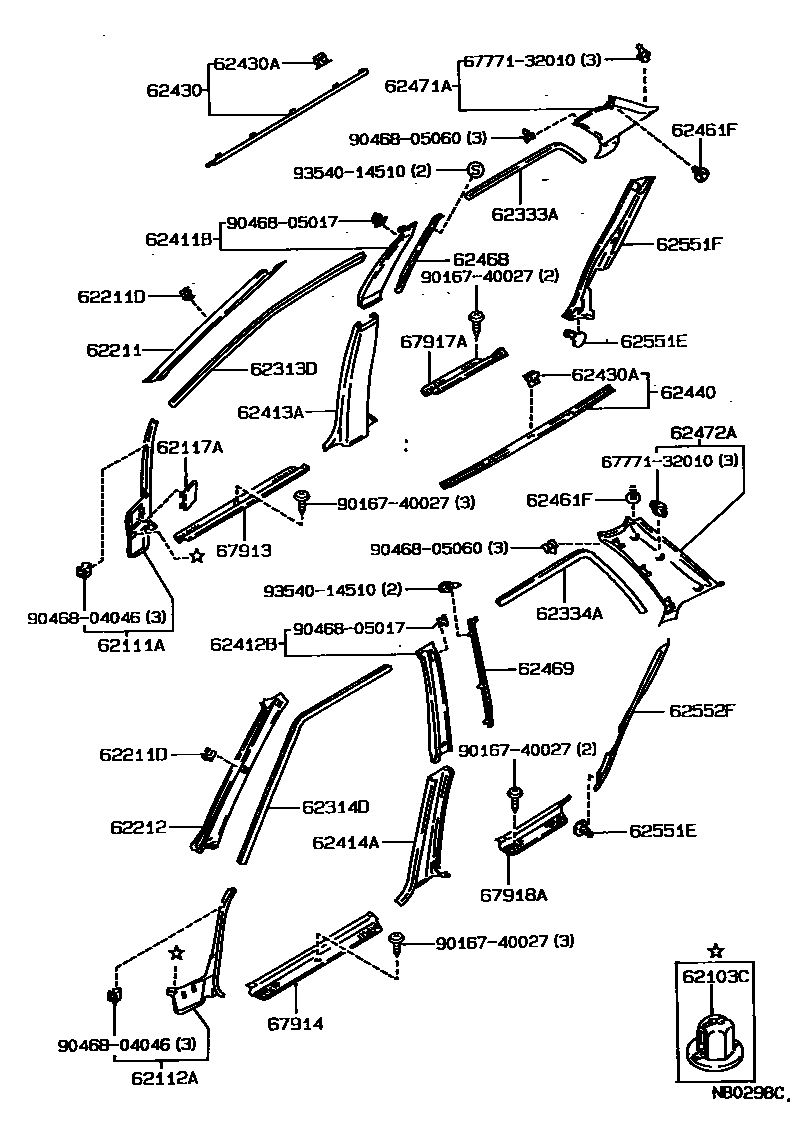

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — NB0298C
内饰板和车门防水胶条 — NB0298C (198705 – 999999)

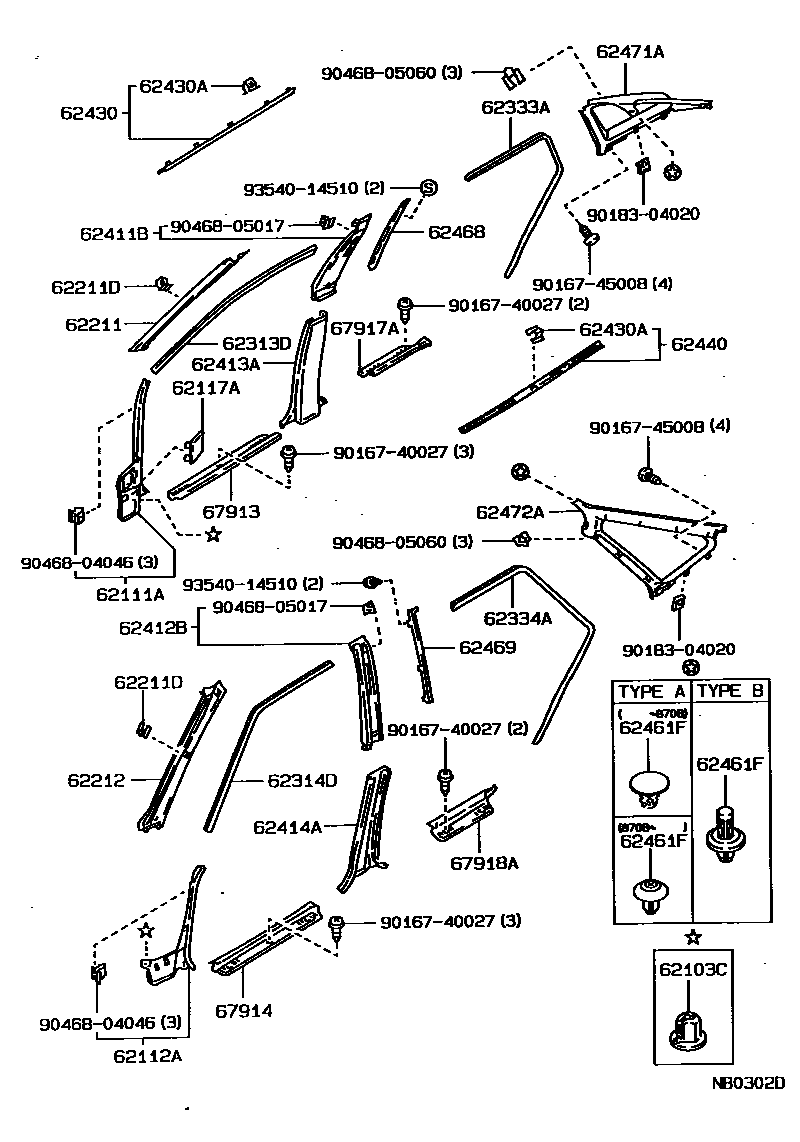

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — NB0302D
内饰板和车门防水胶条 — NB0302D (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
62103CFront wall side trim panel fixing clips90467-08160
62211DClip (for body front pillar decorative panel)90468-05060
62430ARoof rail decorative strip clip90468-05017
