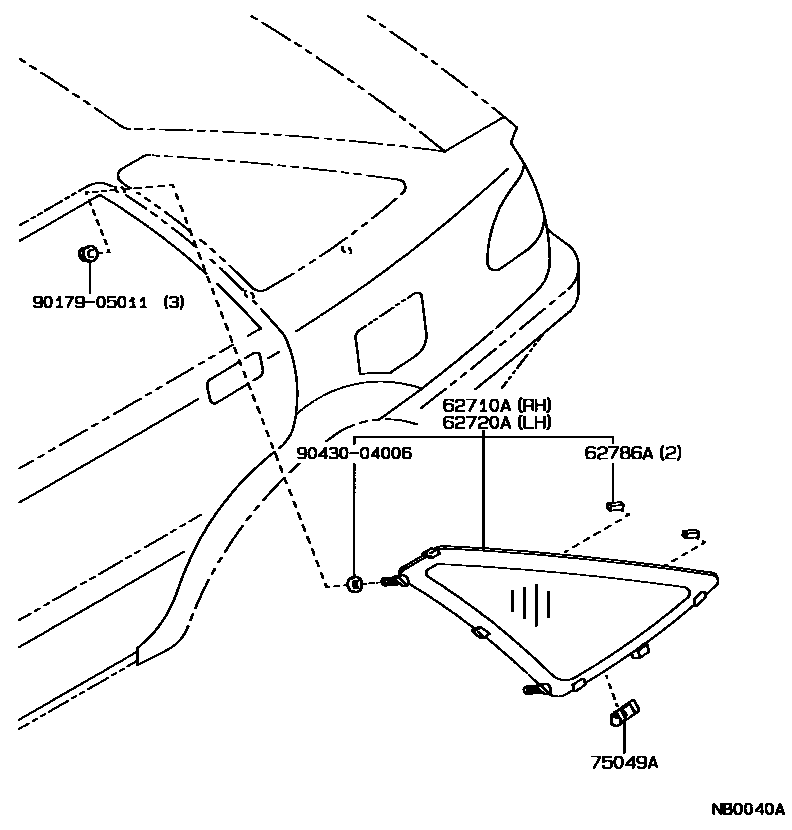

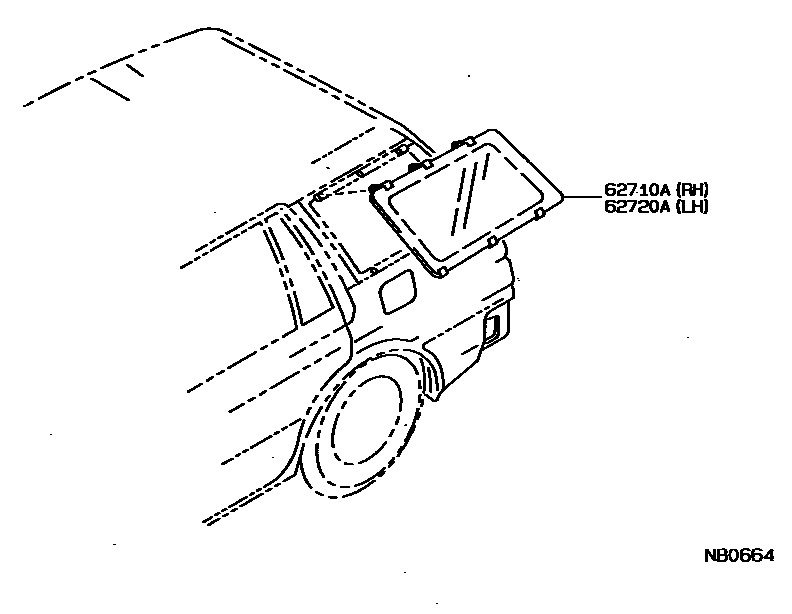

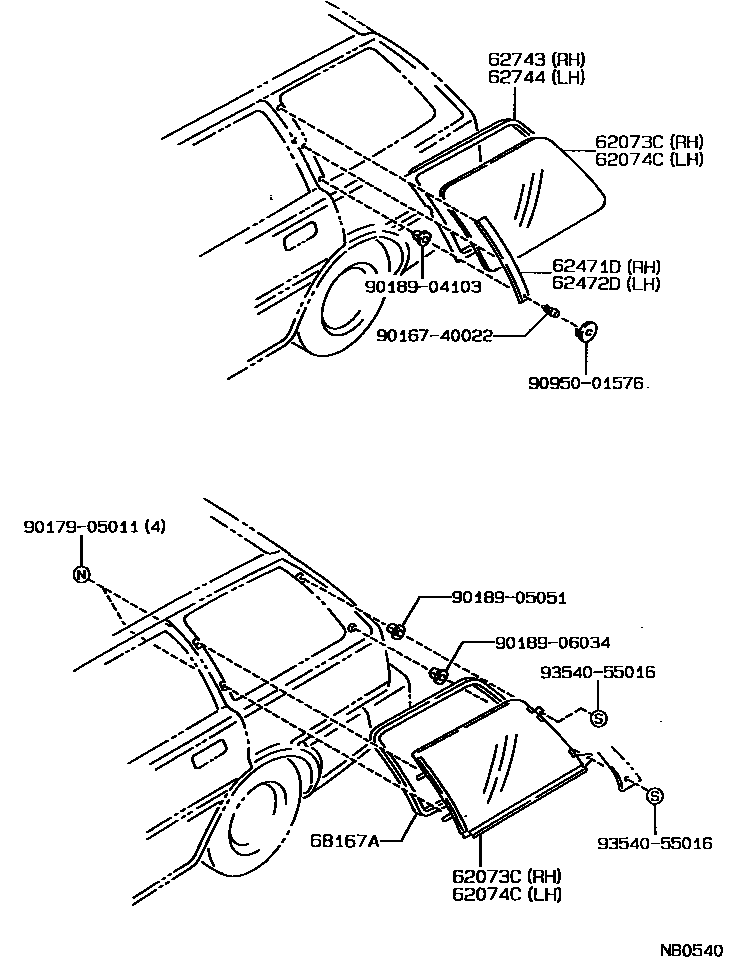

Toyota COROLLA 角窗 — Figure 6103
Toyota COROLLA EPC diagram 6103, 角窗, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62073C | Right rear corner window glass sub-assembly | 62073-13030 · 62073-13050 · 62073-13060 · 62073-13070 · 68133-13030 · 68133-13040 |
| 62074C | Left rear corner window glass sub-assembly | 62074-13030 · 62074-13050 · 62074-13060 · 62074-13070 · 68134-13030 · 68134-13040 |
| 62471D | Decorative panel on right rear pillar | 62471-13020 |
| 62472D | Decorative panel on left rear pillar | 62472-13020 |
| 62710A | Right corner window assembly | 62710-12490 · 62710-12500 · 62710-12620 · 62710-12621 · 62710-12650 |
| 62720A | Left corner window assembly | 62720-12490 · 62720-12500 · 62720-12620 · 62720-12621 · 62720-12650 |
| 62743 | Right rear corner window sealing strip | 62743-13060 |
| 62744 | Left rear corner window sealing strip | 62744-13060 |
| 62786A | 2nd corner window glass spacer | 62786-12010 |
| 68167A | Corner window No. 2 glass sealing strip | 68167-13010 |
| 75049A | No. 2 clip sub-assembly of outer protective strip | 75049-12040 |
