Toyota COROLLA 侧梁 — Figure 6101

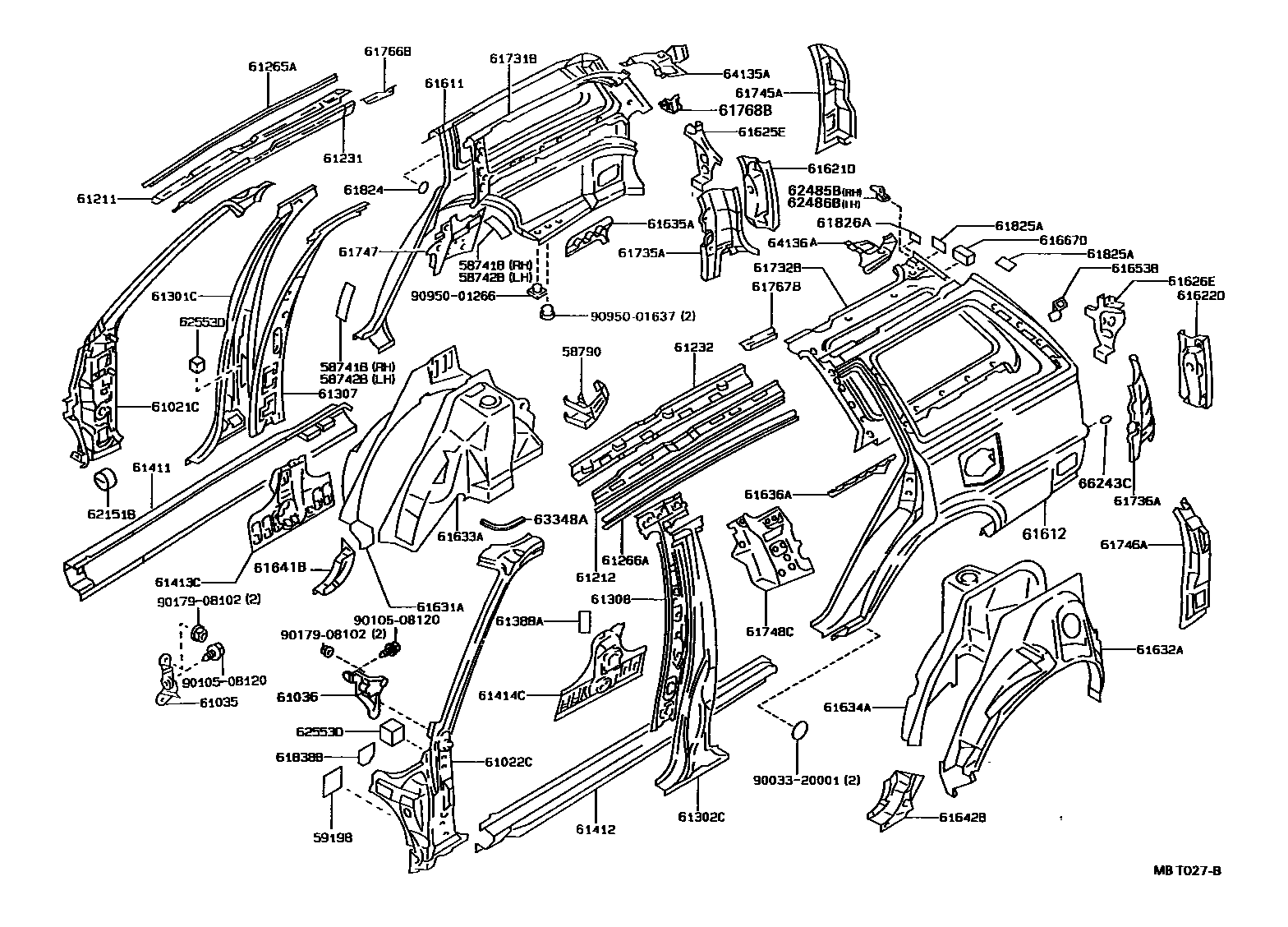

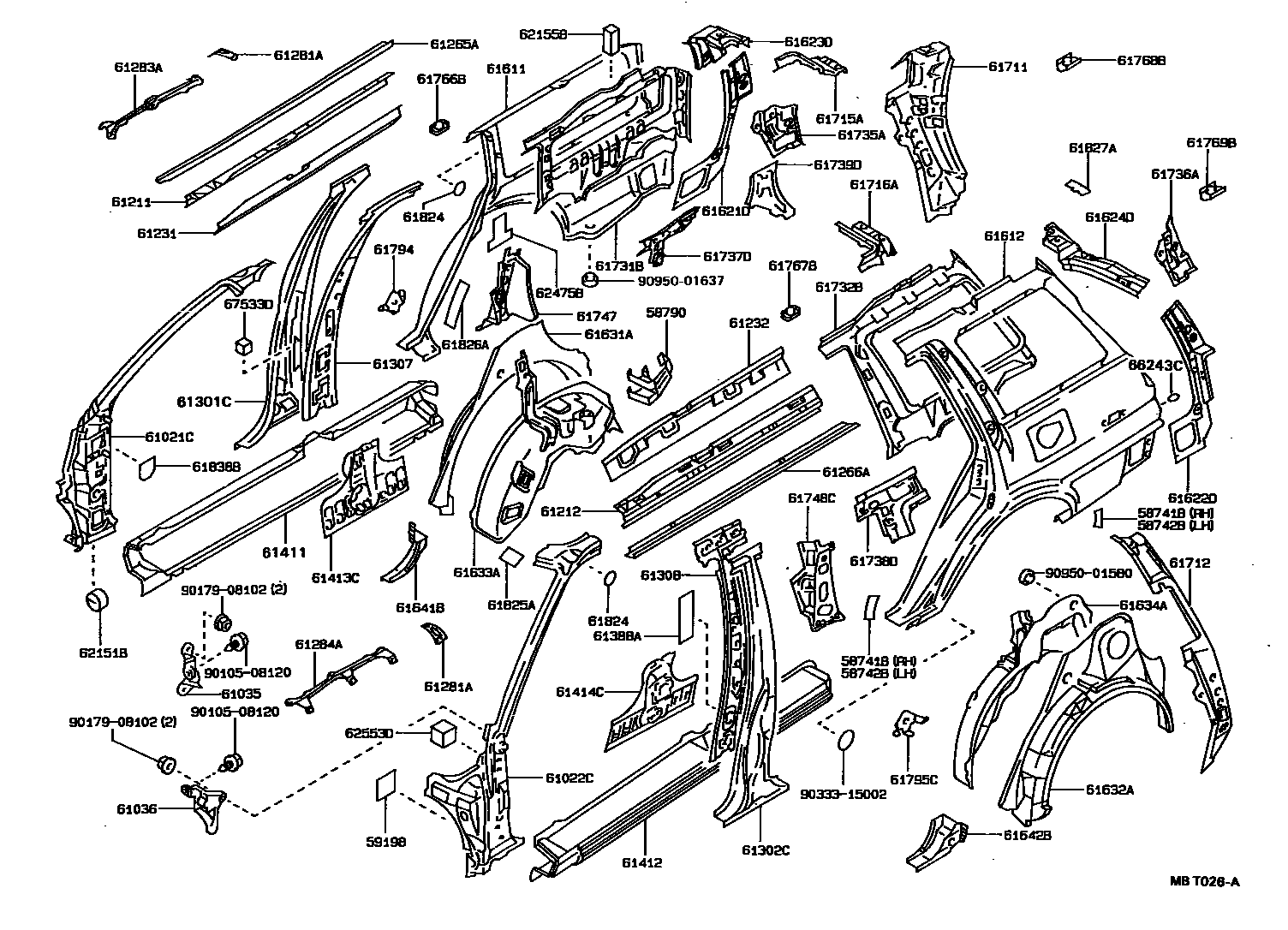

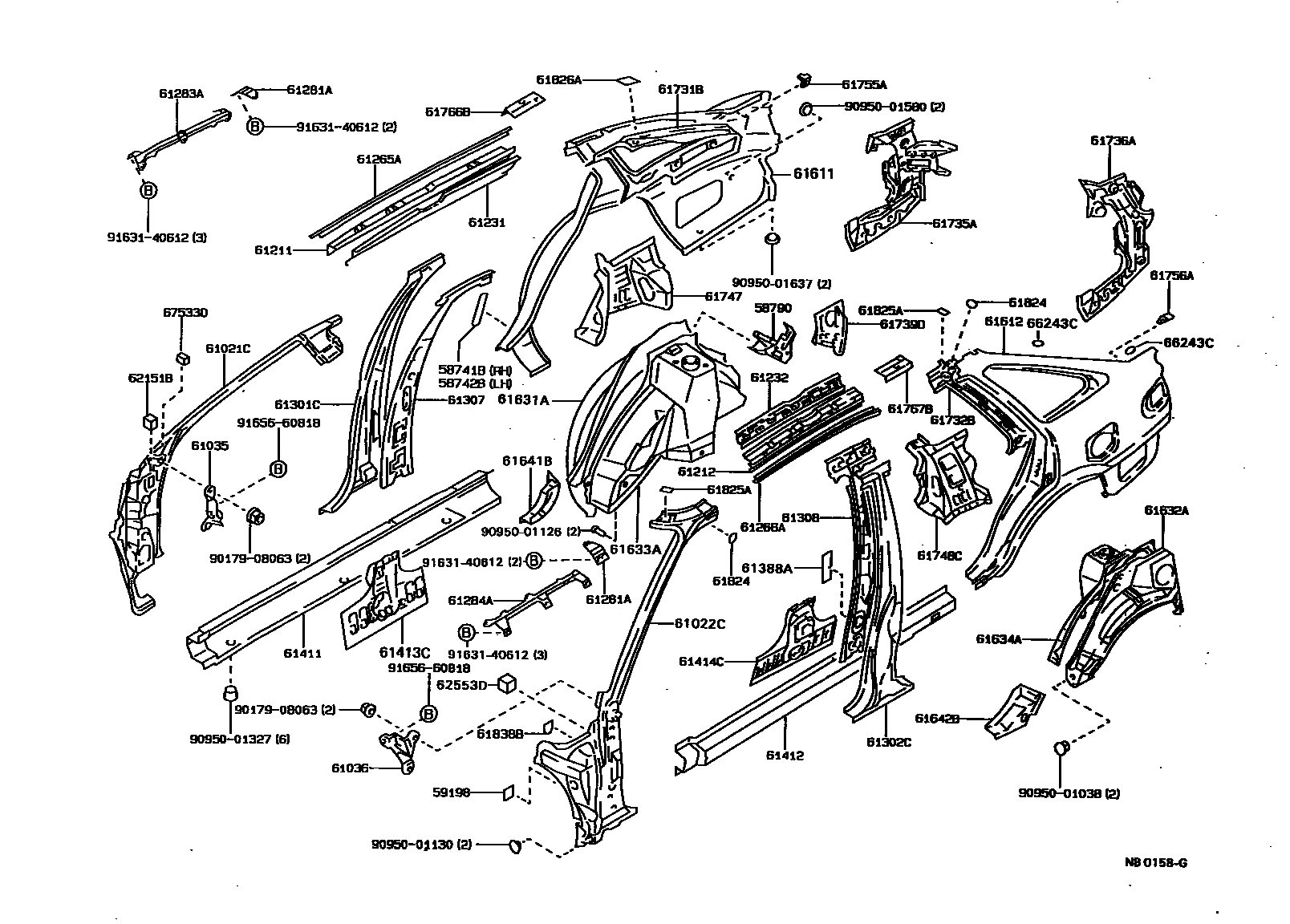

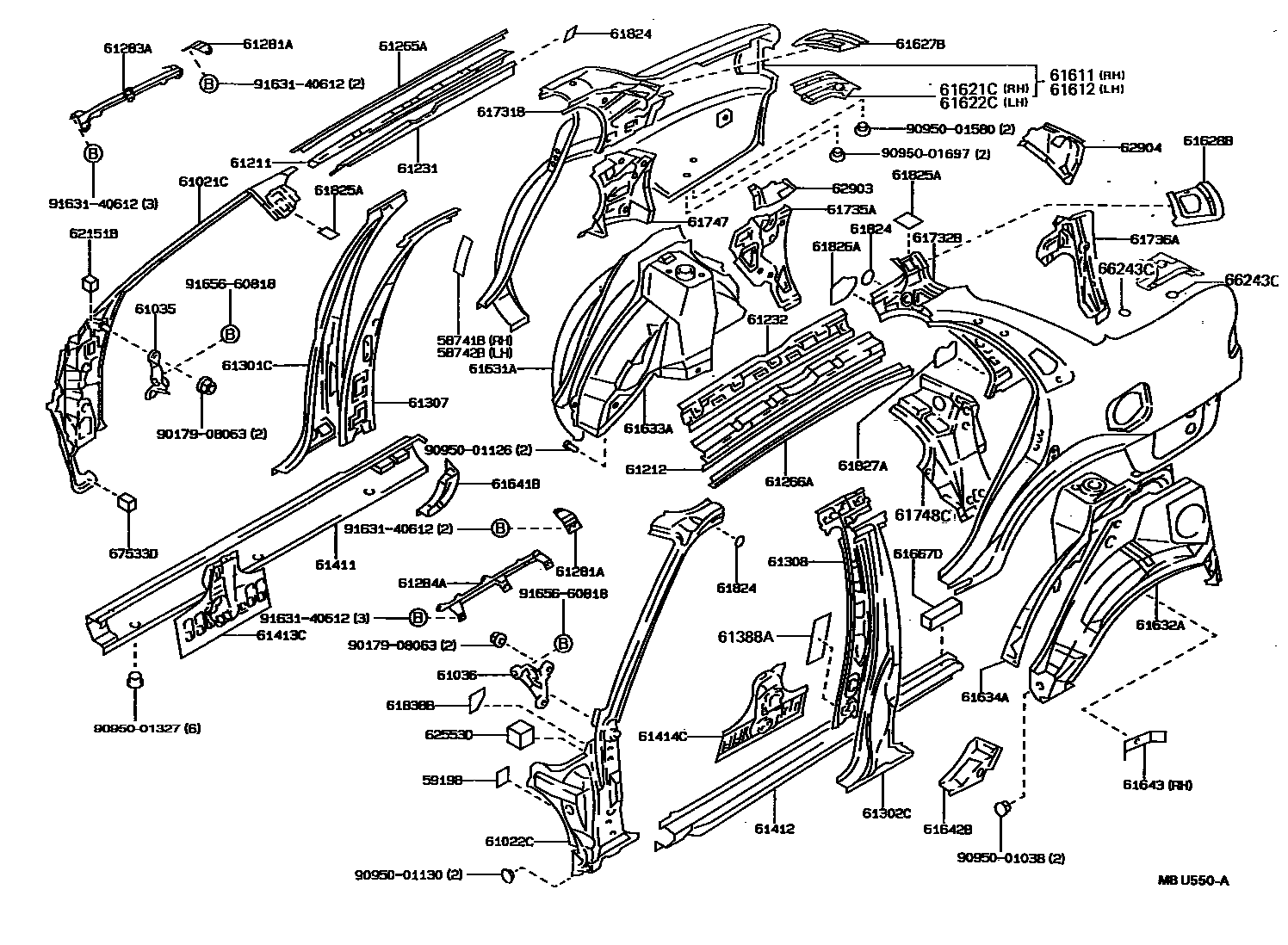

Toyota COROLLA EPC diagram 6101, 侧梁, with 4 images and 90 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-12040 · 58741-12060 · 58741-13010 |
| 58742B | Left side enclosure protection panel | 58741-12060 · 58742-12040 · 58743-12010 |
| 58790 | Jack bracket assembly | 58790-12040 · 58790-13010 |
| 59198 | Silencer panel seal | 59198-12010 |
| 61021C | Right body front pillar sub-assembly | 61021-12640 · 61021-12780 · 61021-12820 · 61021-12840 · 61021-13050 · 61021-13110 · 61021-13120 · 61021-1A020 · 61021-1A030 |
| 61022C | Left body front pillar sub-assembly | 61022-12650 · 61022-12790 · 61022-12830 · 61022-12850 · 61022-13050 · 61022-13110 · 61022-13120 · 61022-1A020 · 61022-1A040 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-12040 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12040 |
| 61211 | Roof right outer longitudinal beam | 61211-12220 · 61211-12230 · 61211-12270 · 61211-13040 |
| 61212 | Roof left outer longitudinal beam | 61212-12220 · 61212-12230 · 61212-12270 · 61212-13040 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12430 · 61231-12450 · 61231-12660 · 61231-13060 · 61231-13080 |
| 61232 | Roof left inner longitudinal beam | 61232-12330 · 61232-12360 · 61232-12530 · 61232-13040 · 61232-13060 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12110 · 61265-12160 · 61265-12170 · 61265-13020 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12110 · 61266-12160 · 61266-12170 · 61266-13020 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-12030 · 61281-12050 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-12030 · 61283-12060 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-12030 · 61284-12060 |
| 61301C | Right body outer center pillar sub-assembly | 61301-12190 |
| 61302C | Left body outer center pillar sub-assembly | 61302-12250 |
| 61307 | Right body inner center pillar sub-assembly | 61307-12020 · 61307-13010 |
| 61308 | Left body inner center pillar sub-assembly | 61308-12020 · 61308-13020 |
| 61388A | Right body center pillar end plate | 61388-12010 |
| 61411 | Right door outer sill panel | 61411-12370 |
| 61412 | Left door outer sill panel | 61412-12360 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-12040 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-12060 |
| 61611 | Right side hoarding | 61601-13905 · 61601-13906 · 61601-13908 · 61601-1A900 · 61601-1E900 · 61601-1E901 · 61601-1E909 |
| 61612 | left side panel | 61602-13905 · 61602-13908 · 61602-13909 · 61602-1E901 · 61602-1E903 · 61602-1E910 · 61602-1E911 · 61602-1E916 |
| 61621C | Luggage right opening slot | 61621-12280 · 61621-12281 |
| 61621D | Back door right opening slot | 61621-12902 · 61621-12904 · 61621-13010 |
| 61622C | Luggage trunk left opening slot | 61622-12280 · 61622-12281 |
| 61622D | Rear door left opening slot | 61622-12902 · 61622-12904 · 61622-13010 |
| 61623D | Right front side panel extension | 61623-12080 |
| 61624D | Left front side panel extension | 61624-12080 |
| 61625E | Right rear side panel inner panel extension | 61625-13050 |
| 61626E | Left rear side panel inner panel extension | 61626-13050 |
| 61627B | Right rear side panel extension | 61627-12020 |
| 61628B | Extension on left rear side panel | 61628-12020 |
| 61631A | Right wheel cover outer panel | 61631-12230 · 61631-13060 |
| 61632A | Left side wheel cover outer panel | 61632-12230 · 61632-12270 · 61632-12280 · 61632-13050 |
| 61633A | Right wheel housing lining panel | 61607-12190 · 61607-12400 · 61607-12909 · 61607-12911 · 61607-12913 · 61607-13050 |
| 61634A | Left side wheel housing lining panel | 61608-12200 · 61608-12420 · 61608-12907 · 61608-12909 · 61608-12911 · 61608-13050 |
| 61635A | Right wheel cover bracket | 61635-13100 |
| 61636A | Left side wheel cover bracket | 61636-13100 |
| 61641B | Right wheel housing corner panel | 61641-12040 |
| 61642B | Left side wheel housing corner panel | 61642-12040 |
| 61643 | Right wheel housing center corner panel | 61643-12040 |
| 61653B | Bottom panel side trim bracket | 61653-13010 |
| 61667D | Side panel seals | 61667-12050 |
| 61711 | Roof right side outer panel | 61711-12300 |
| 61712 | Roof left outer panel | 61712-12330 |
| 61715A | Roof right inner upper extension | 61715-12030 |
| 61716A | Roof left inner upper extension | 61716-12030 |
| 61731B | Roof right inner panel | 61731-12420 · 61731-12440 · 61731-12490 · 61731-13240 · 61731-13250 · 61731-13270 |
| 61732B | Roof left inner panel | 61732-12380 · 61732-12400 · 61732-12450 · 61732-13240 · 61732-13250 · 61732-13270 |
| 61735A | Right rear roof inner panel | 61705-12949 · 61735-12290 · 61735-12902 · 61735-13050 |
| 61736A | Left rear roof inner panel | 61706-12954 · 61736-12260 · 61736-12902 · 61736-12904 · 61736-13050 |
| 61737D | Roof right inner reinforcement | 61737-12110 |
| 61738D | Roof left inner reinforcement | 61738-12120 |
| 61739D | Jack bracket bracket reinforcement | 61739-12100 · 61739-12110 |
| 61745A | Back door opening lower right reinforcement | 61745-13060 |
| 61746A | Rear door opening lower left reinforcement | 61746-13060 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12100 · 61747-12140 · 61747-12160 · 61747-13010 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12100 · 61748-12140 · 61748-12160 · 61748-13040 |
| 61755A | Upper fixing piece for the decorative part on the right side of the base plate | 61755-12050 |
| 61756A | Upper fixing piece for the decorative part on the left side of the floor panel | 61755-12050 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-12180 · 61766-12220 · 61766-13050 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-12170 · 61767-12180 · 61767-13040 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-13040 · 61768-32010 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61768-32010 · 61769-13040 |
| 61794 | No. 1 radio speaker stand | 61794-12010 |
| 61795C | No. 2 radio speaker bracket | 61795-12030 |
| 61824 | Noise Control Panel No. 1 | 61824-12020 · 61824-12040 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 61826A | Noise Control Panel No. 3 | 61826-12010 · 61826-12020 · 61826-12040 |
| 61827A | Noise Control Panel No. 4 | 61827-12010 · 61827-12020 |
| 61838B | No. 5 Noise Control Panel | 61838-12010 |
| 62151B | Front cowl side silencer pads | 62151-12100 · 62151-12130 |
| 62155B | Side panel lining | 62155-12010 |
| 62475B | Roof inner seal | 62475-12050 |
| 62485B | Roof right interior panel fixing | 62485-13010 |
| 62486B | Roof left interior panel fixing | 62486-13010 |
| 62553D | No. 3 column pad | 62553-12120 |
| 62903 | Right side ventilation duct sub-assembly | 62903-12120 |
| 62904 | Left side ventilation duct sub-assembly | 62904-12130 |
| 63348A | Roof rail inner cover | 63348-13010 |
| 64135A | Outer right rear corner panel reinforcement | 64135-13010 |
| 64136A | Outer left rear corner reinforcement | 64136-13010 |
| 66243C | Rear body protection piece No. 1 | 53393-12020 · 66243-20010 |
| 67533D | Right front door lower door frame decorative pad | 67533-12010 |
