Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

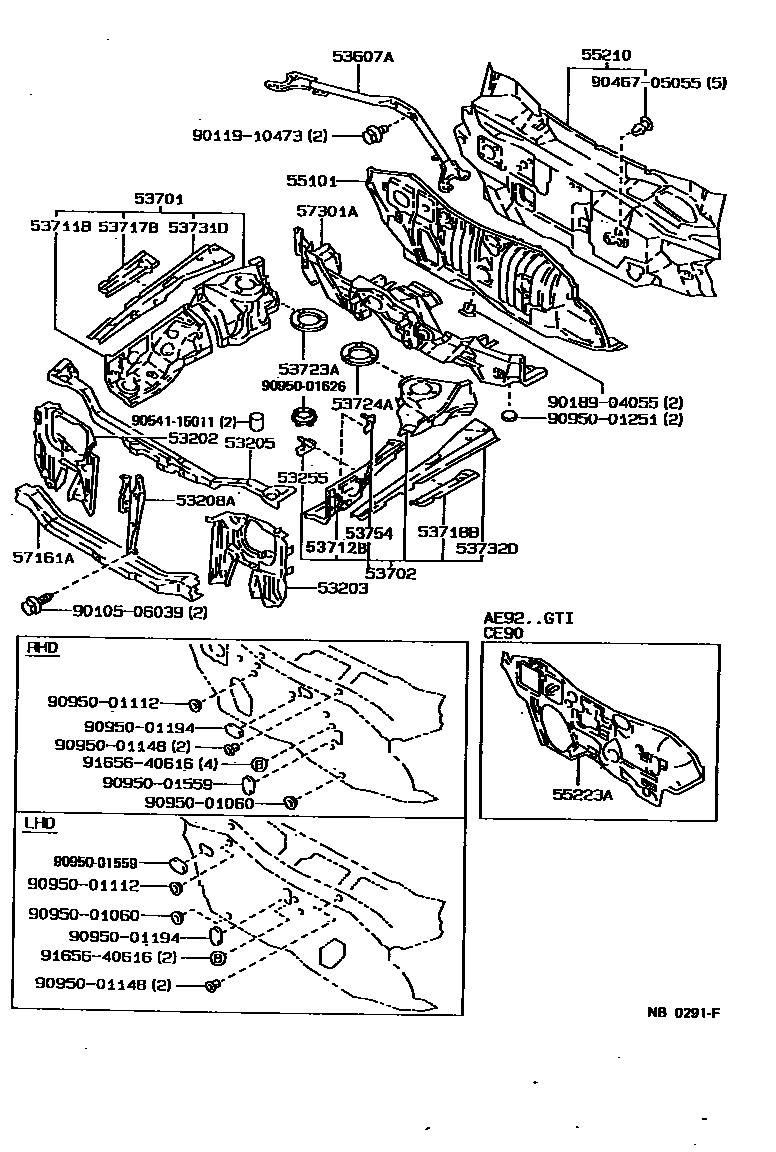

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-12290 · 53202-12310 |
| 53203 | Radiator left bracket sub-assembly | 53203-12250 |
| 53205 | Radiator upper bracket sub-assembly | 53216-12928 · 53216-12929 · 53216-12930 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-12350 · 53208-12360 |
| 53255 | Relay box mounting bracket | 53255-12010 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-12020 |
| 53701 | Right front fender fender sub-assembly | 53701-1A010 |
| 53702 | Left front fender fender sub-assembly | 53702-1A030 |
| 53711B | Right front fender front fender | 53711-12210 |
| 53712B | Left front fender front fender | 53712-12170 |
| 53717B | Right fender fender corner panel | 53717-12040 |
| 53718B | Left fender fender corner panel | 53718-12040 |
| 53723A | Front spring bracket right side reinforcement | 53723-12070 |
| 53724A | Front spring bracket left reinforcement | 53723-12070 |
| 53731D | Right front fender to cowl side upper beam | 53731-12130 · 53731-12140 |
| 53732D | Left front fender to cowl side upper beam | 53732-12110 · 53732-12120 |
| 53754 | No. 2 relay box mounting bracket | 53754-12010 |
| 55101 | Front apron sub-assembly | 55101-1A150 · 55101-1A210 · 55101-1A250 · 55101-1A310 · 55101-1A410 · 55101-1A500 · 55101-1A620 · 55101-1A630 |
| 55210 | Front wall insulation pad assembly | 55210-12350 · 55210-12370 |
| 55223A | Front wall outer heat insulation pad | 55223-12050 · 55223-12060 |
| 57161A | Front cross member with rear seal | 57161-12911 |
| 57301A | Steering housing support beam sub-assembly | 57301-12060 · 57301-12100 |
