Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 1 PNC and OE references.

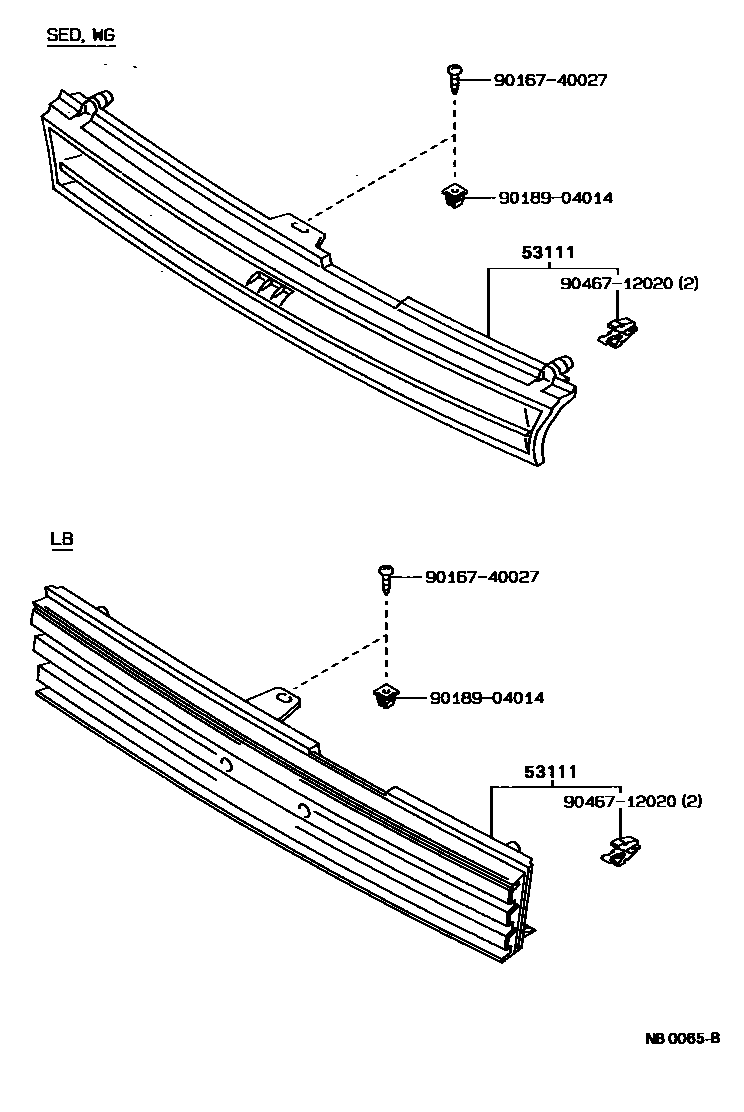

Toyota COROLLA radiator grille EPC diagram — NB0065B
radiator grille — NB0065B (198705 – 999999)

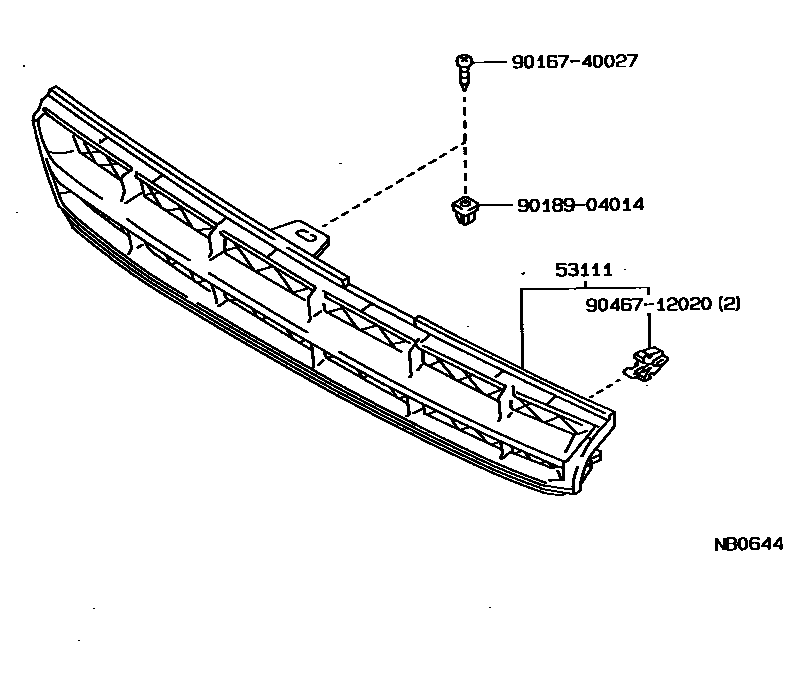

Toyota COROLLA radiator grille EPC diagram — NB0644
radiator grille — NB0644 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-12660 · 53101-12680 · 53101-12690 · 53101-12691 · 53101-12720 · 53101-12850
