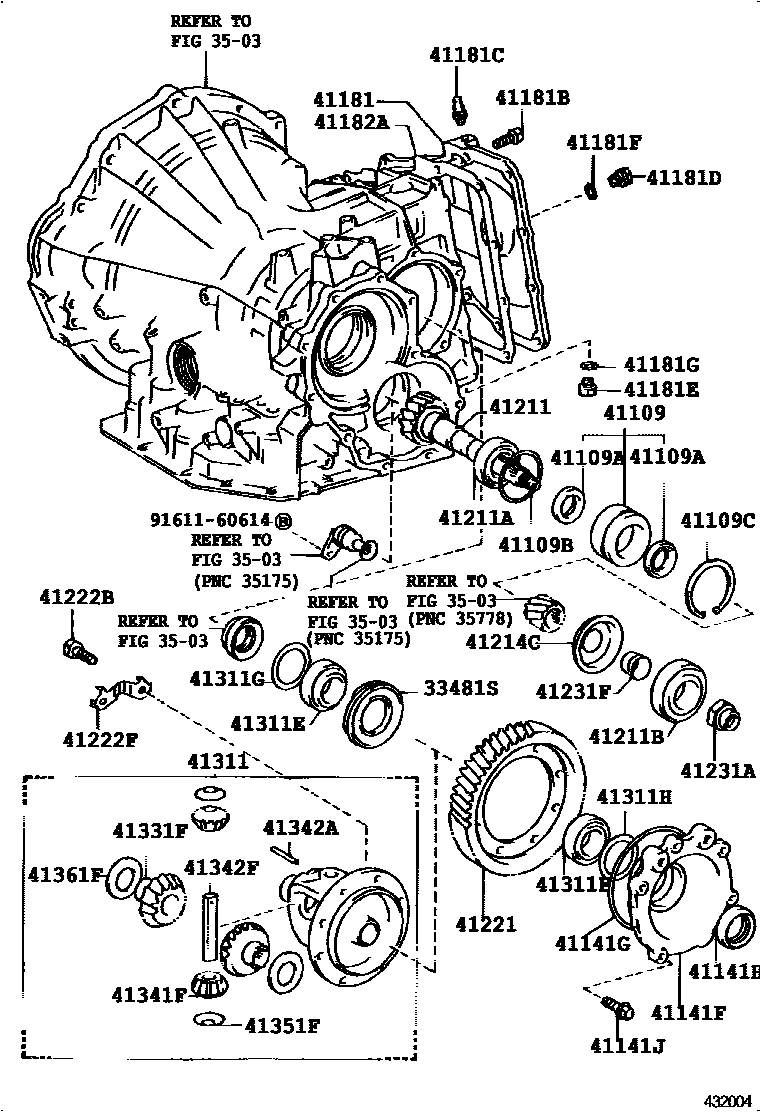

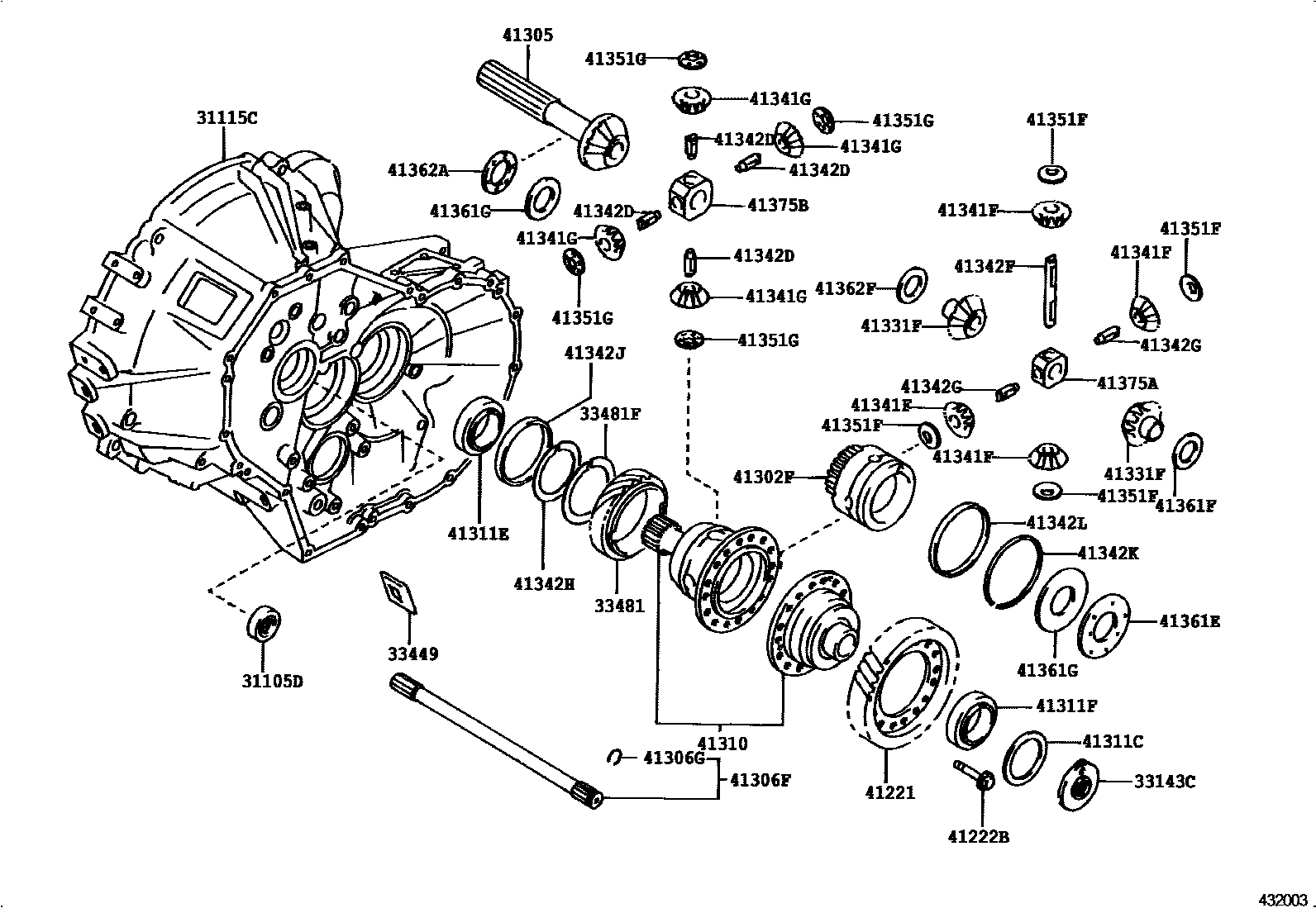

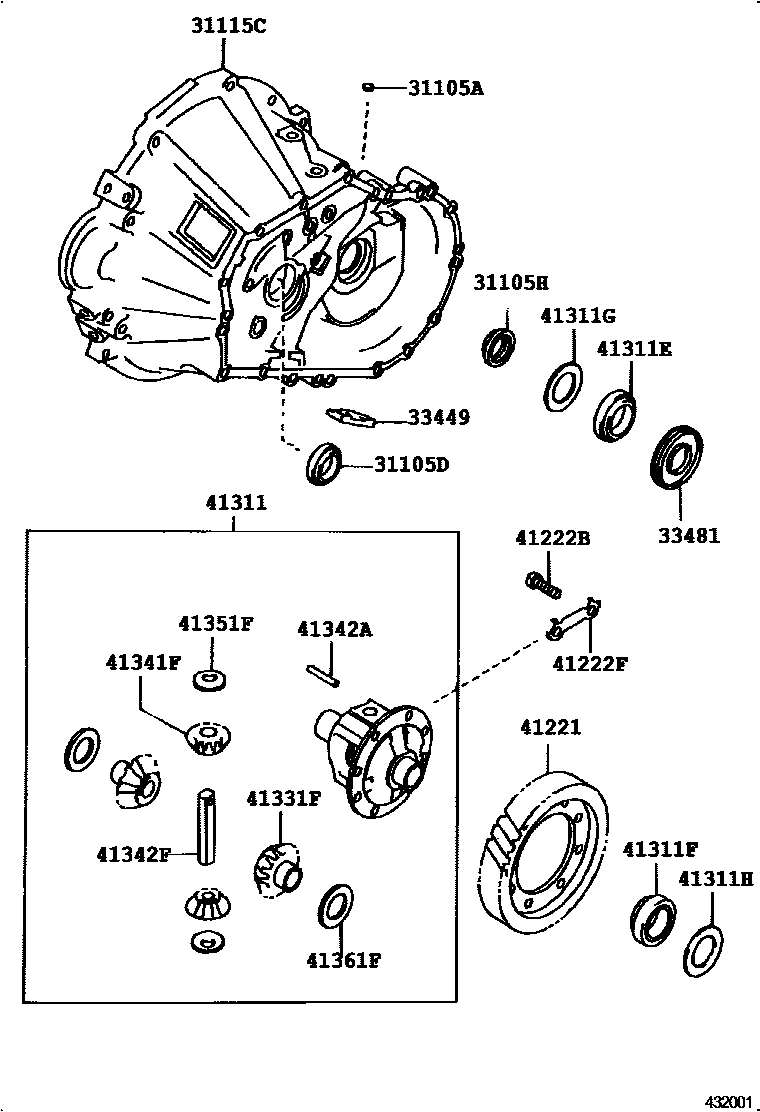

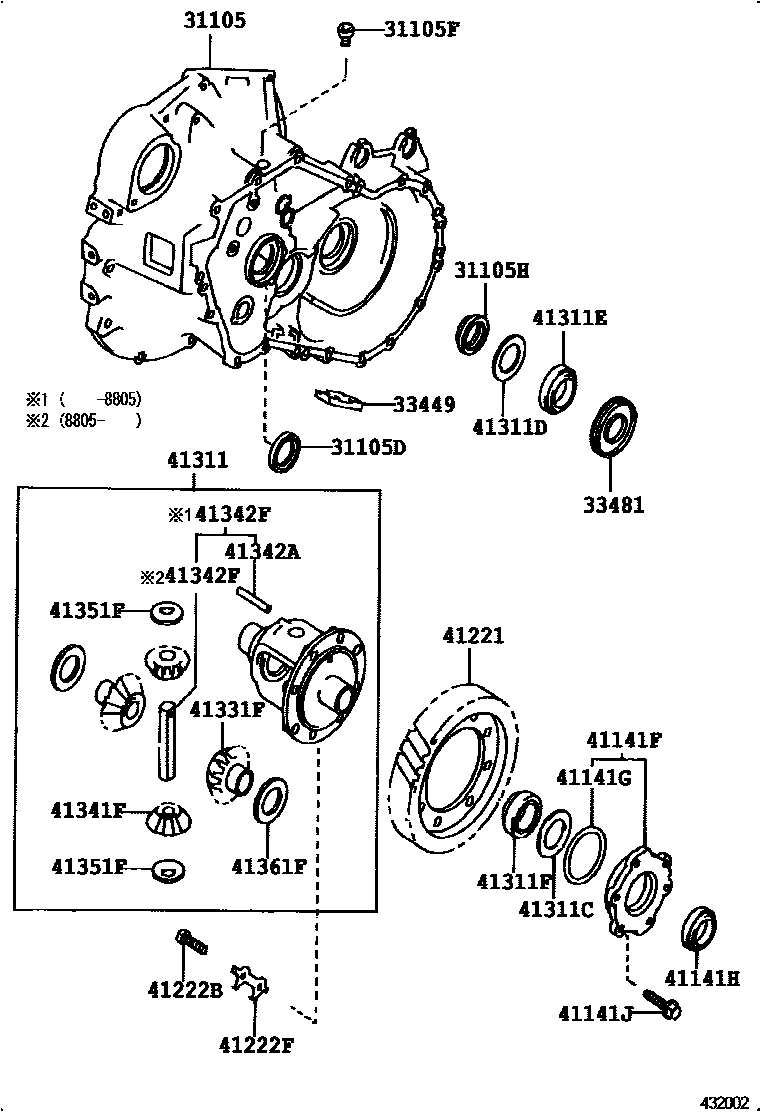

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 4 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-32014 · 31105-32050 · 31105-32051 · 31105-32052 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25016 · 90311-30002 · 90311-30006 |
| 31105F | Screw plug (for transaxle housing) | 90341-10065 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-34007 · 90311-34016 · 90311-35014 · 90311-35026 |
| 31115C | Front transmission axle housing (MTM) | 31115-12040 · 31115-12041 · 31115-12060 · 31115-12070 · 31115-17012 · 31115-17013 |
| 33143C | Front differential oil baffle | 33143-12010 |
| 33449 | derailleur magnet | 33449-12010 · 33449-12020 · 33449-20010 · 33449-32010 · 33449-32020 |
| 33481 | Speedometer driving gear (MTM) | 33481-10080 · 33481-12040 · 33481-12060 · 33481-12090 · 33481-32010 · 33481-32060 |
| 33481F | Shaft snap ring (for MTM speedometer driving gear) | 90520-99003 · 90520-99008 |
| 33481S | Speedometer driving gear (ATM) | 33481-12050 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-20010 · 41109-20011 · 41109-32010 |
| 41109A | Oil seal (for differential drive pinion bearing housing) | 90310-34005 |
| 41109B | O-ring (for differential drive pinion bearing housing) | 90301-65003 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-76002 |
| 41141F | Front differential side bearing retainer | 41101-32010 · 41141-12010 · 41141-12020 |
| 41141G | O-ring (for front differential side bearing retainer) | 90301-63004 · 90301-99026 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-34005 · 90311-34012 · 90311-35014 · 90311-35026 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08061 · 91611-60825 |
| 41181 | front differential case cover | 41181-12020 |
| 41181B | Bolts (for securing front differential case cover) | 90119-08369 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 |
| 41181D | Plug (for front differential oil fill port) | 90341-18002 · 90341-18006 · 90341-18049 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181F | Gasket (for front differential oil plug) | 90430-18008 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41182A | Differential case cover gasket | 41182-12010 |
| 41211 | Differential drive pinion | 41211-12160 · 41211-20200 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35013 · 90366-35050 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-40010 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32010 |
| 41221 | Front differential ring gear | 41221-10221 · 41221-10231 · 41221-12160 · 41221-12180 · 41221-12210 · 41221-12260 · 41221-12270 · 41221-12310 · 41221-12330 · 41221-12340 · 41221-12360 · 41221-17010 · 41221-32030 · 41221-32080 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90101-11353 · 90105-12100 · 90105-12150 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-12040 · 41222-12050 · 41222-32010 |
| 41231A | Drive pinion lock nut | 90179-20004 |
| 41231F | Front differential drive pinion bearing spacer | 41231-32010 |
| 41302F | Front differential housing sub-assembly | 41302-12020 · 41302-12030 |
| 41305 | Differential side gear sub-assembly | 41305-12010 · 41305-12030 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-12010 · 41306-20010 |
| 41306G | Hole snap ring (for differential side gear countershaft) | 90521-26004 |
| 41310 | Differential case assembly | 41310-12070 · 41310-12090 |
| 41311 | front differential case | 41301-10060 · 41301-12040 · 41301-12050 · 41301-12051 · 41301-12100 · 41301-12101 · 41301-32010 · 41301-32060 |
| 41311C | Rear gasket (for front differential case) | 90564-45001 · 90564-45002 · 90564-45003 · 90564-45004 · 90564-45005 · 90564-45006 · 90564-45007 · 90564-45008 · 90564-45009 · 90564-45010 · 90564-45011 · 90564-45012 · 90564-45013 · 90564-45014 · 90564-45015 · 90564-45016 · 90564-45017 · 90564-45018 · 90564-45019 · 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 |
| 41311D | Front gasket (for front differential case) | 90564-45011 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-38004 · 90366-40016 · 90366-57001 · 90368-38006 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40023 · 90366-50014 · 90368-38006 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90201-41002 · 90201-41003 · 90201-41004 · 90201-41005 · 90201-41006 · 90201-41007 · 90201-41008 · 90201-41009 · 90201-41010 · 90201-41011 · 90201-41012 · 90201-41013 · 90201-41014 · 90201-41015 · 90201-41016 · 90201-41017 · 90201-41018 · 90201-41019 · 90201-41020 · 90201-41021 · 90201-41022 · 90201-41023 · 90201-41045 |
| 41311H | Rear flat washer (for front differential case) | 90201-41012 · 90201-41046 · 90201-41047 · 90201-41048 · 90201-41049 · 90201-41050 · 90201-41051 · 90201-41052 · 90201-41053 · 90201-41054 · 90201-41055 · 90201-41056 · 90201-41057 · 90201-41058 · 90201-41059 · 90201-41060 · 90201-41061 · 90201-41062 · 90201-41063 · 90201-41064 |
| 41331F | Front differential side gear | 41331-10042 · 41331-12011 · 41331-12030 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-10030 · 41341-12030 · 41341-20011 · 41341-22030 · 41341-30011 |
| 41341G | Center differential planetary gear | 41341-12040 · 41341-20020 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-04053 · 90250-06058 |
| 41342D | Center differential planetary gear shaft | 41342-12030 · 41342-12120 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-10040 · 41342-10041 · 41342-12020 · 41342-12040 · 41342-12110 · 41342-12140 · 41342-20050 · 41342-32010 · 41342-39025 |
| 41342G | No. 2 front differential planetary gear shaft | 41342-12050 |
| 41342H | Shaft snap ring (for center differential planetary gear shaft) | 90520-99002 · 90520-99007 |
| 41342J | Spacer (for center differential planetary gear shaft) | 90560-99001 · 90560-99002 |
| 41342K | Shaft snap ring (for front differential planetary gear shaft) | 90520-94001 |
| 41342L | Spacer (for differential planetary gear shaft) | 90560-97001 |
| 41351F | Front differential planetary gear thrust washer | 41351-10030 · 41351-12010 · 41351-12020 · 41351-32010 |
| 41351G | Center differential planetary gear thrust washer | 41351-12060 · 41351-20010 |
| 41361E | No. 1 center differential side gear thrust washer | 41362-20020 · 41362-20030 · 41362-20040 · 41362-20050 · 41362-20060 · 41362-20070 · 41362-20080 · 41362-20090 · 41362-20100 · 41362-20110 · 41362-20120 · 41362-20130 · 41362-20140 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-10070 · 41361-10080 · 41361-10090 · 41361-10100 · 41361-10110 · 41361-10120 · 41361-12330 · 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41361-12400 · 41361-12410 · 41361-12420 · 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-36001 · 90208-41001 |
| 41362A | No. 2 center differential side gear thrust washer | 41362-20150 · 41362-20160 · 41362-20170 · 41362-20180 · 41362-20190 · 41362-20200 · 41362-20210 · 41362-20220 · 41362-20230 · 41362-20240 · 41362-20250 · 41362-20260 · 41362-20270 |
| 41362F | No. 2 front differential side gear thrust washer | 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 |
| 41375A | Front differential planetary gear shaft support | 41375-12020 |
| 41375B | Center differential planetary gear shaft support | 41375-12010 · 41375-12050 |
