Toyota COROLLA 节气阀连杆和阀杆(ATM) — Figure 3513

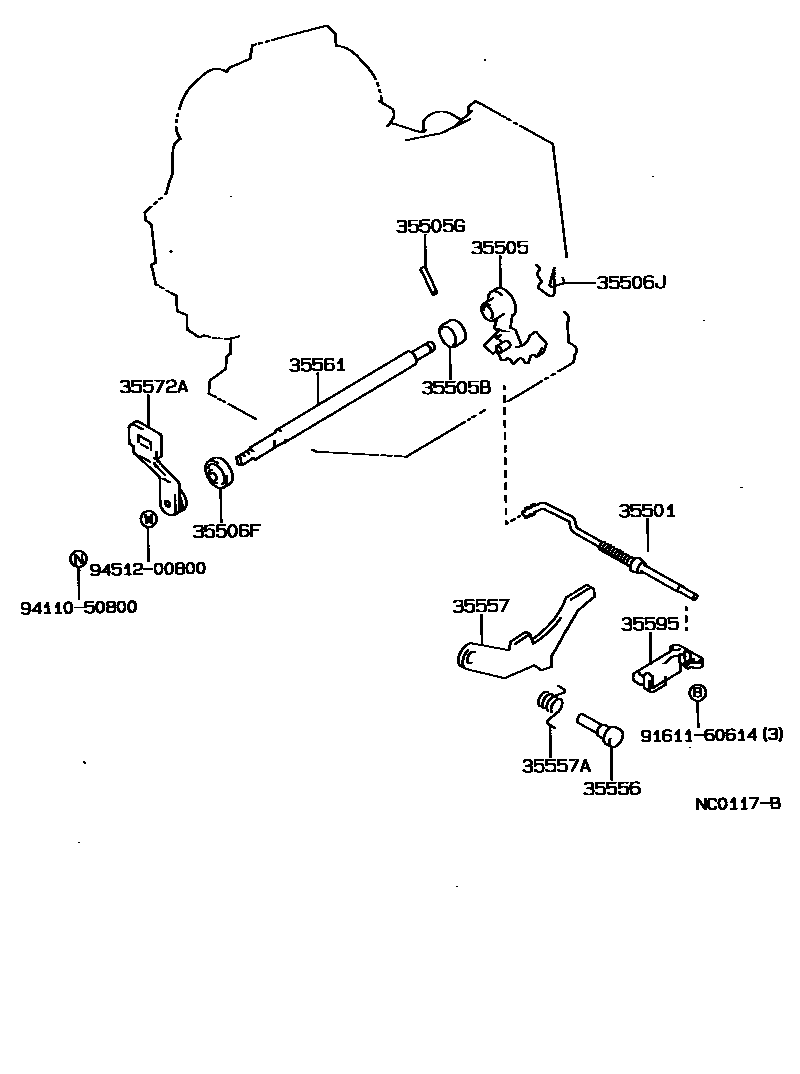

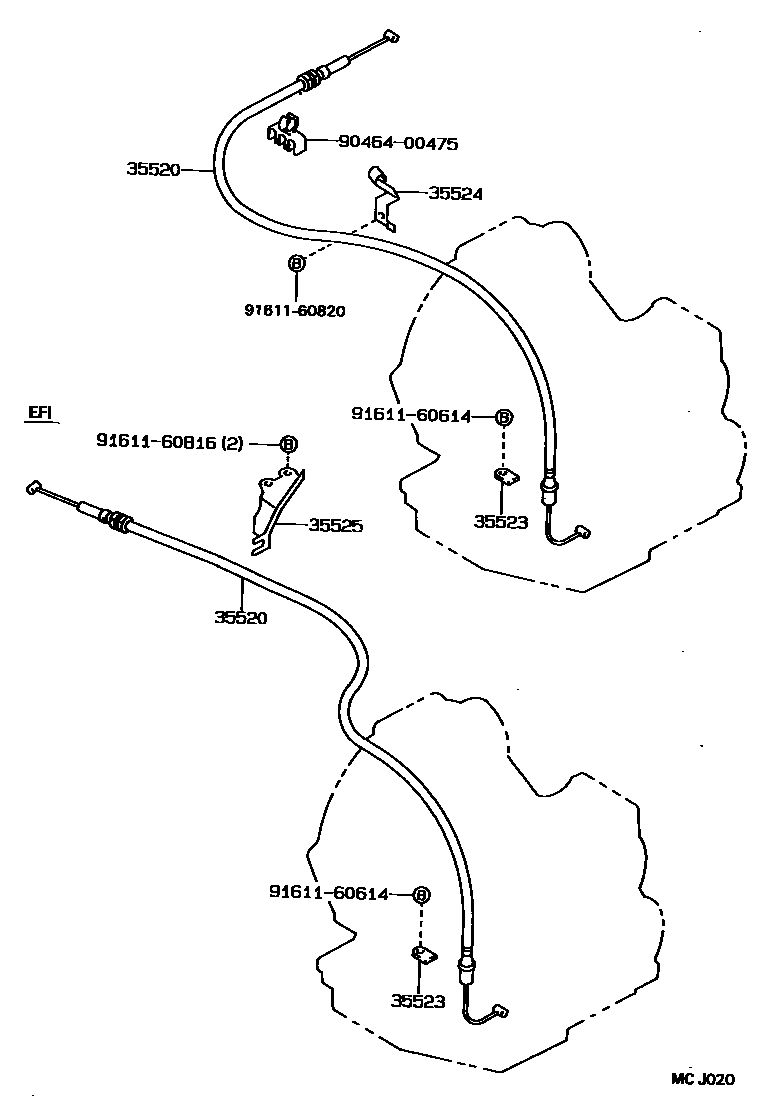

Toyota COROLLA EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35501 | Parking lock lever sub-assembly | 35501-32010 · 35501-32030 |
| 35505 | Manual valve stem sub-assembly | 35505-20010 · 35505-32011 · 35505-32030 |
| 35505B | Spacer (for manual valve stem) | 90560-20006 |
| 35505G | Slotted spring pin (for manual valve stem) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35506J | Stop spring (for manual valve stem shaft) | 90524-09001 |
| 35520 | Throttle valve cable assembly | 35520-12210 · 35520-12240 · 35520-12280 · 35520-12330 · 35520-20210 |
| 35523 | Throttle valve cable clamp | 35523-12080 · 35523-32010 |
| 35524 | No. 2 throttle valve cable clamp | 35523-12150 |
| 35525 | Throttle valve cable bracket | 35525-12090 |
| 35556 | Parking lock pawl shaft | 35556-32010 |
| 35557 | Parking pawl | 35557-32020 |
| 35557A | Torsion spring (for parking pawl) | 90508-26047 |
| 35561 | Manual valve stem shaft | 35561-32010 |
| 35572A | transmission control lever | 35572-12070 · 35572-12090 |
| 35595 | Parking lock pawl bracket | 35595-32010 |
