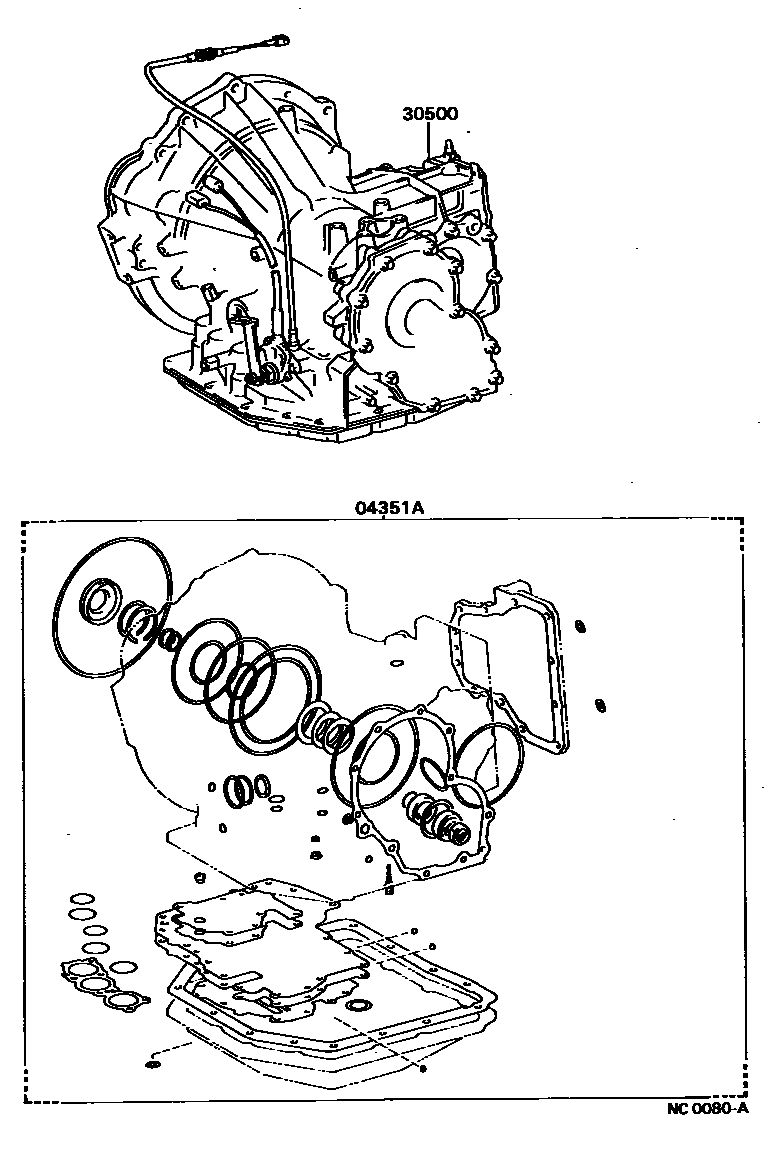

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-10030 · 04351-12050 |
| 30500 | Automatic transmission axle assembly | 30500-12210 · 30500-12350 · 30500-12500 · 30500-12550 · 30500-12551 · 30500-12650 · 30500-12690 · 30500-12791 |
