Toyota COROLLA 燃油喷射系统 — Figure 2211

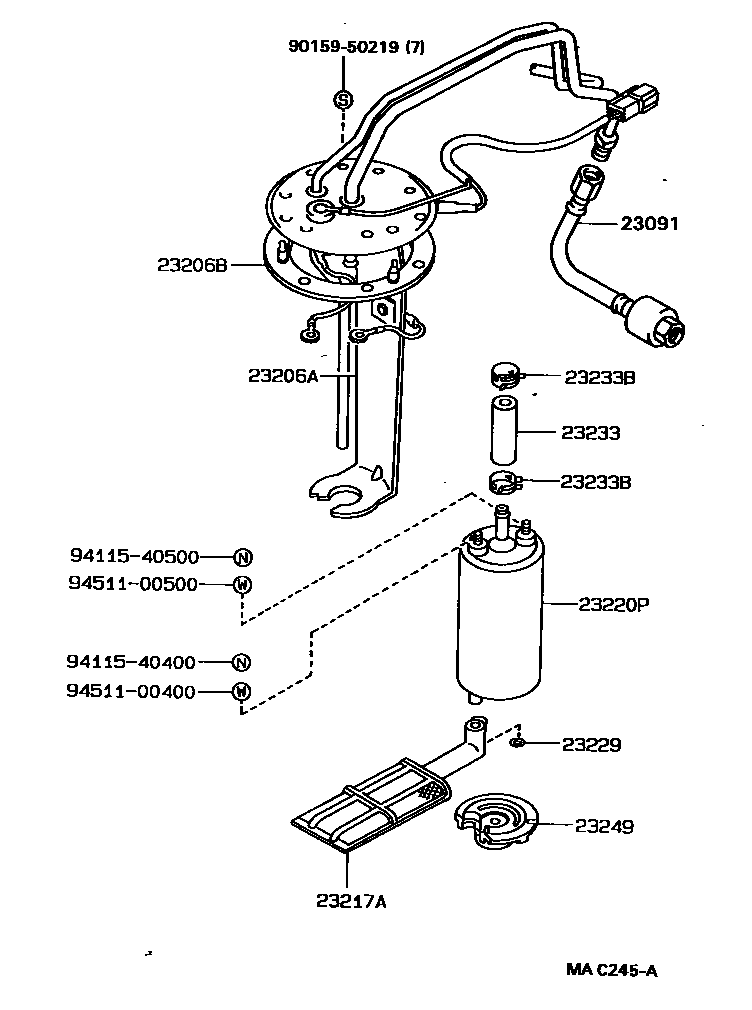

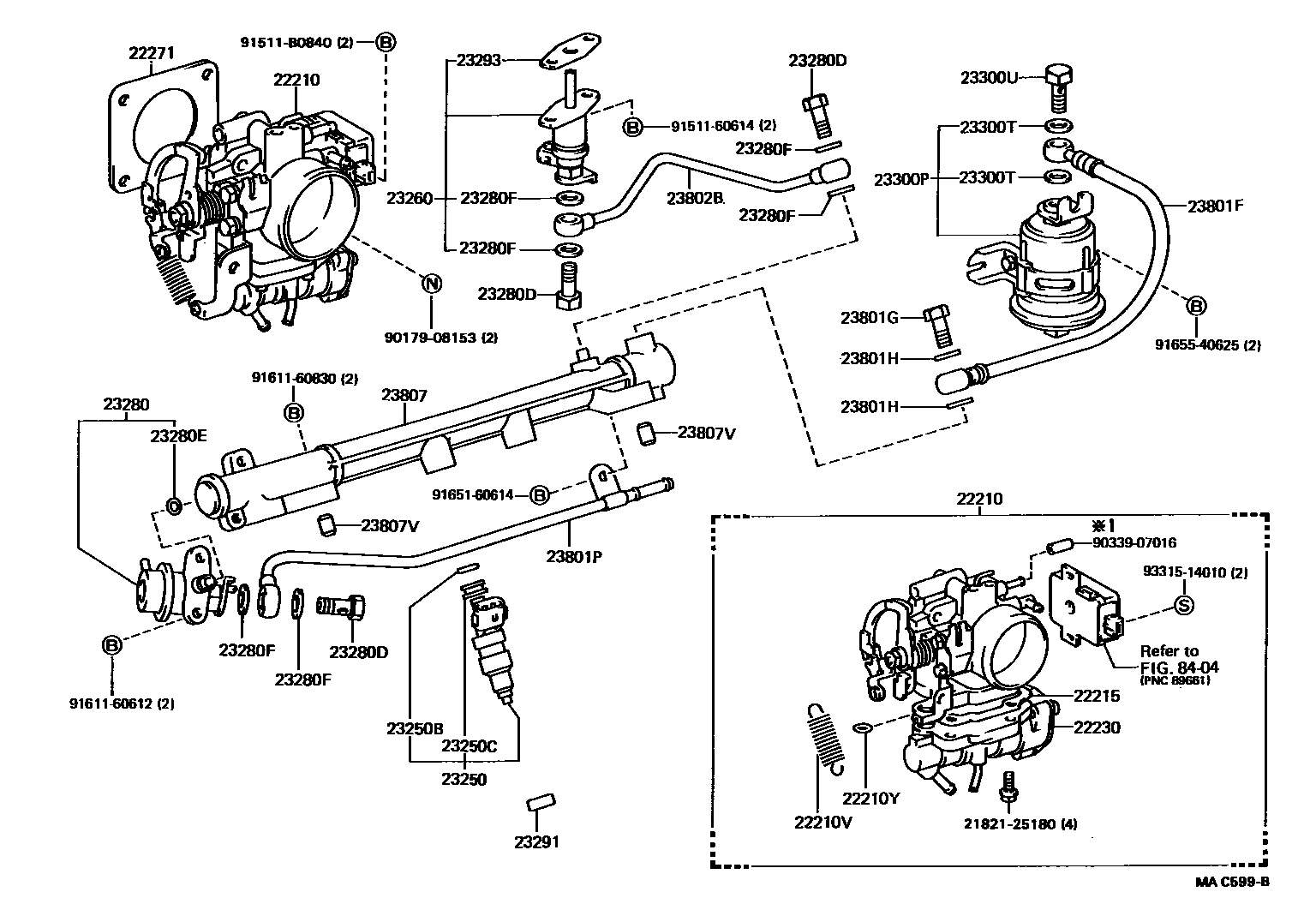

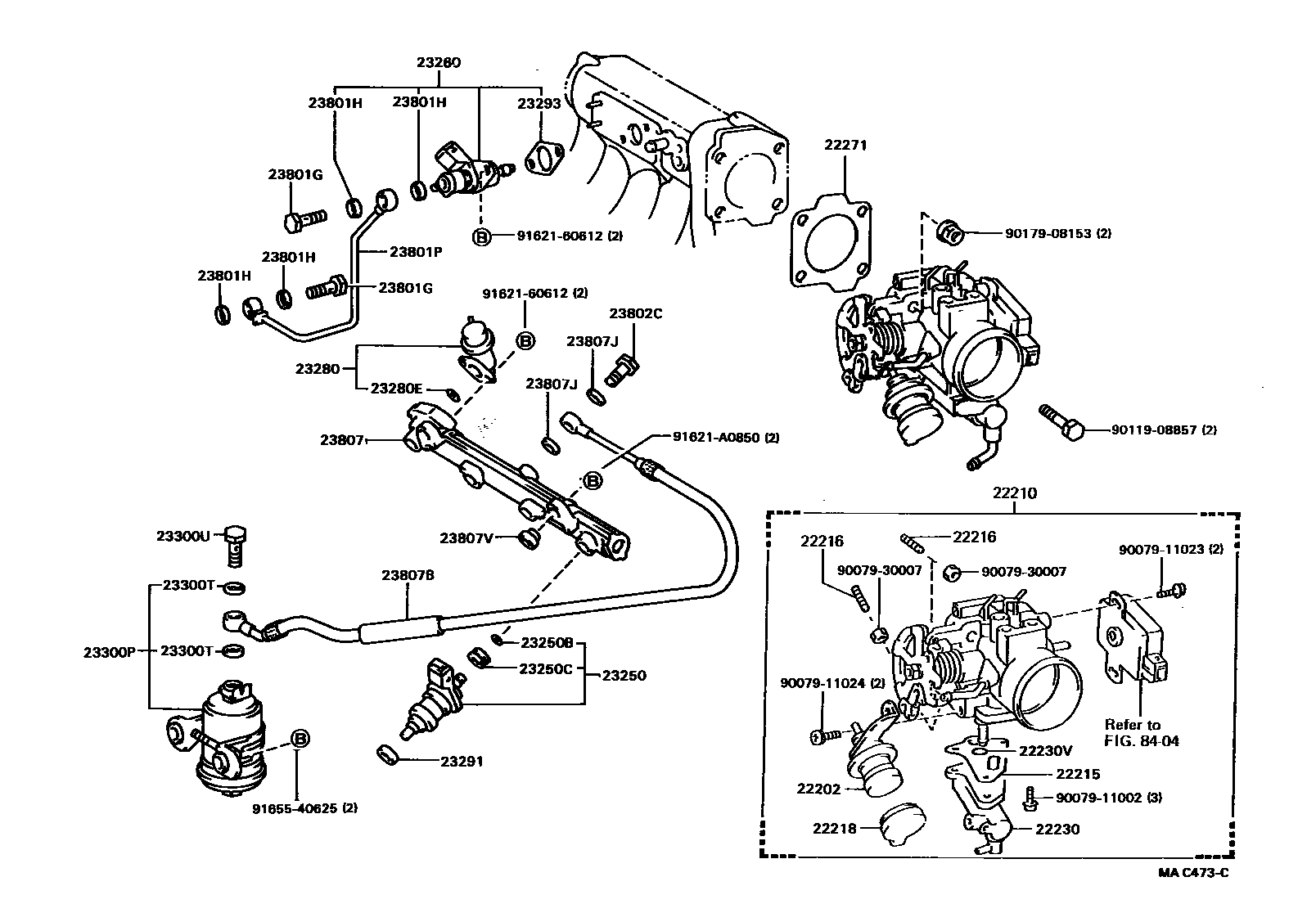

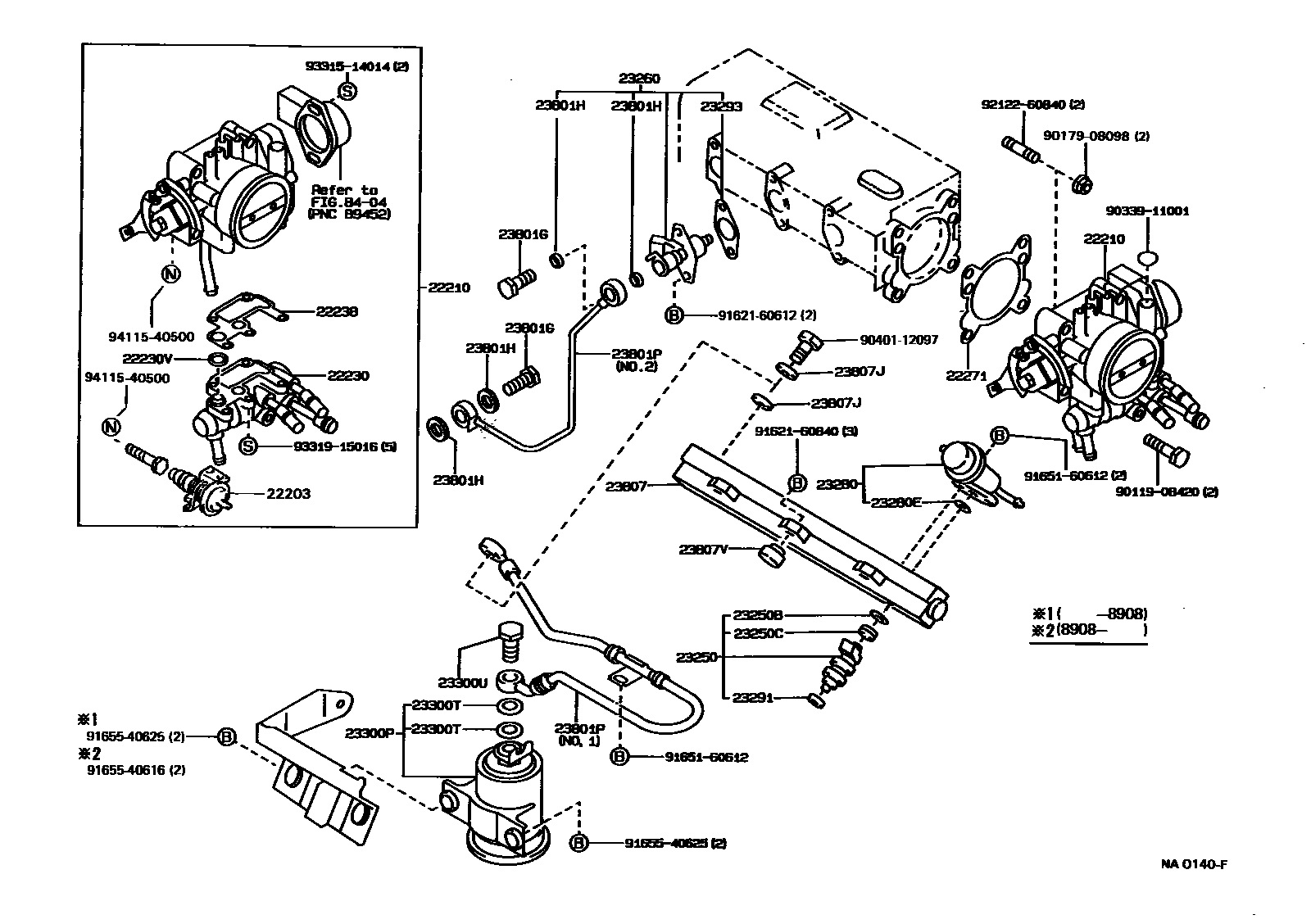

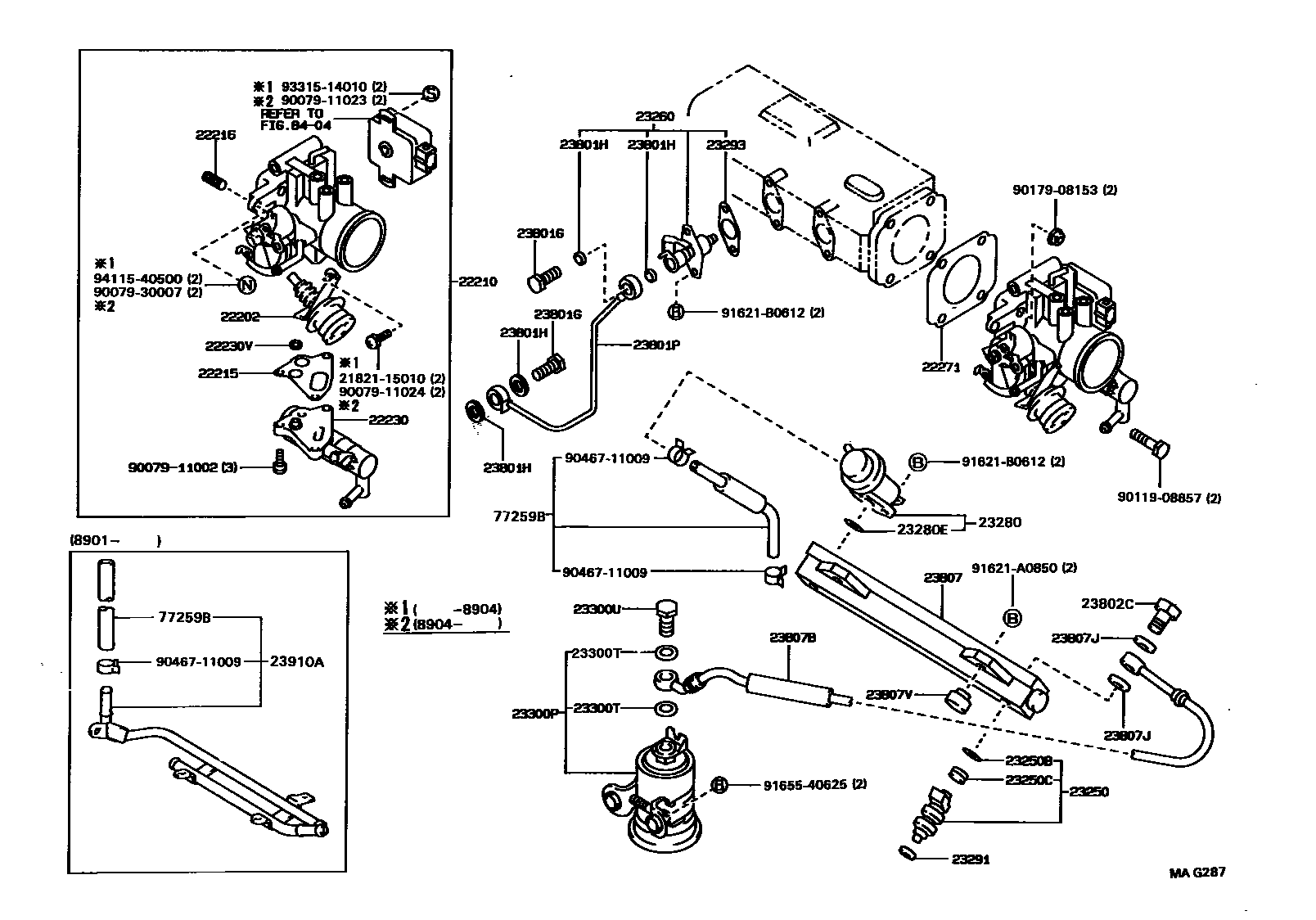

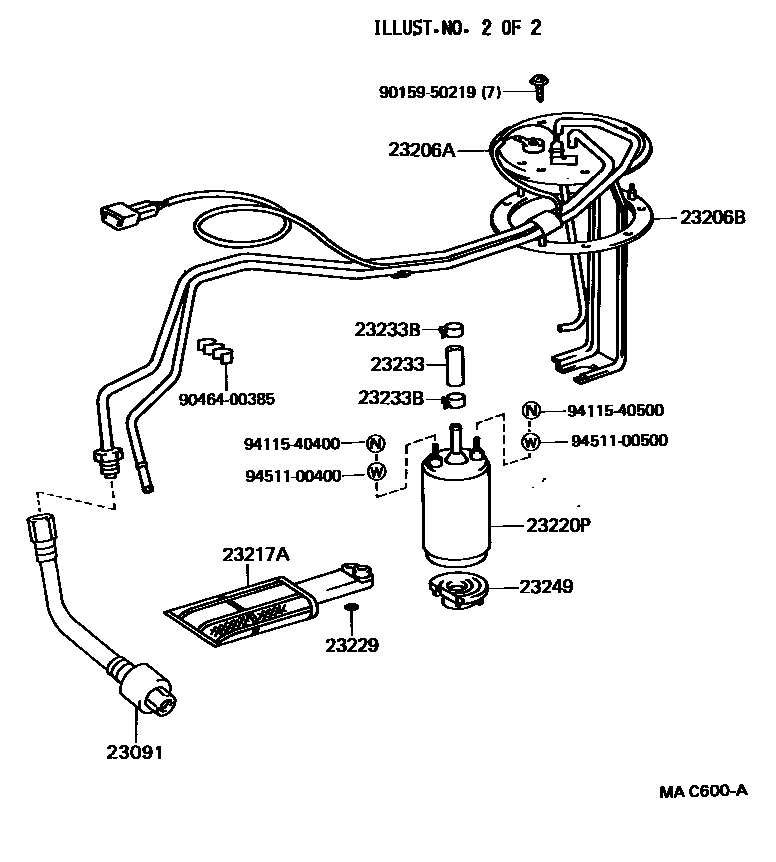

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 6 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22202 | Deceleration buffer sub-assembly | 22202-11022 · 22202-15020 · 22202-15040 |
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22203-16040 |
| 22210 | Throttle body assembly | 22210-11090 · 22210-11290 · 22210-16190 · 22210-16210 · 22210-16270 · 22210-16420 · 22210-16450 · 22210-16460 · 22210-16520 · 22210-16530 |
| 22210V | Tension spring with damper (for throttle return) | 90507-12021 |
| 22210Y | O-ring (for air pipe) | 96711-19009 |
| 22215 | Throttle body cover gasket | 22215-11010 · 22215-11110 · 22215-15010 · 22215-15011 |
| 22216 | Deceleration buffer adjustment screw | 22216-74010 · 22216-74311 |
| 22218 | Cover (for throttle body) | 22218-16330 |
| 22230 | Auxiliary air valve assembly | 22230-11110 · 22230-16110 · 22230-16140 · 22230-16200 · 22230-16210 · 22230-16220 · 22230-16230 |
| 22230V | O-ring (for auxiliary air valve) | 96711-19005 · 96711-19009 |
| 22238 | Auxiliary air valve gasket | 22238-16010 · 22238-16020 |
| 22271 | Throttle body gasket | 22271-11010 · 22271-11011 · 22271-15010 · 22271-15011 · 22271-16020 |
| 23091 | Fuel pump pipe sub-assembly | 23091-16030 · 23091-16050 |
| 23206A | fuel pump bracket | 23206-16280 · 23206-16360 · 23206-16430 · 23206-16490 |
| 23206B | fuel pump bracket gasket | 77169-12020 |
| 23217A | fuel pump filter | 23217-16010 · 23217-16024 · 23217-16030 · 23217-16043 · 23217-16390 |
| 23220P | fuel pump assembly | 23220-16084 · 23220-43070 · 23221-16390 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23239-16010 · 23239-63010 |
| 23233B | Clamp (for fuel pump hose) | 90467-13001 · 90467-13054 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74150 |
| 23250 | Fuel injector assembly | 23209-11040 · 23209-16070 · 23209-16080 · 23209-16100 · 23209-16110 · 23209-16120 · 23209-16130 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23260 | Cold start injector assembly | 23260-19065 · 23260-19066 · 23260-19085 · 23260-19095 · 23260-19105 · 23260-19106 · 23260-19115 |
| 23280 | Fuel pressure regulator assembly | 23280-11030 · 23280-16070 · 23280-16120 |
| 23280D | Connector bolt (for fuel line or hose assembly) | 90401-08003 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 |
| 23280F | Gasket (for fuel pressure regulator) | 90430-08005 |
| 23291 | Injector vibration isolation pad | 23291-16020 · 23291-41010 |
| 23293 | Cold start injector gasket | 23293-16010 · 23293-16020 · 23293-62020 · 23293-74010 |
| 23300P | Fuel filter (for EFI) | 23300-19145 |
| 23300T | Gasket (for fuel filter) | 90430-12005 · 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801F | No. 1 fuel hose | 23271-16140 |
| 23801G | Connector bolt (for fuel pipe) | 90401-08003 · 90401-12097 |
| 23801H | Gasket (for fuel lines) | 90430-08005 · 90430-08012 · 90430-12005 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-11040 · 23801-15050 · 23801-16040 · 23801-16050 · 23901-16070 · 23902-16070 · 23902-16080 · 23902-16170 · 23902-16180 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-11031 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12097 |
| 23807 | Oil pipe sub-assembly | 23807-11020 · 23807-11030 · 23807-16060 · 23807-16070 · 23807-16090 · 23814-16110 |
| 23807B | Fuel line hose | 23271-15200 · 23271-15250 · 23271-16080 |
| 23807J | Oil pipe inlet gasket | 90201-12109 · 90430-12026 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08009 · 90561-08021 · 90561-08036 |
| 23910A | Fuel pipe sub-assembly | 23901-16100 |
| 77259B | fuel hose | 77259-12110 · 95333-06020 |
