Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 8 images and 27 PNC and OE references.

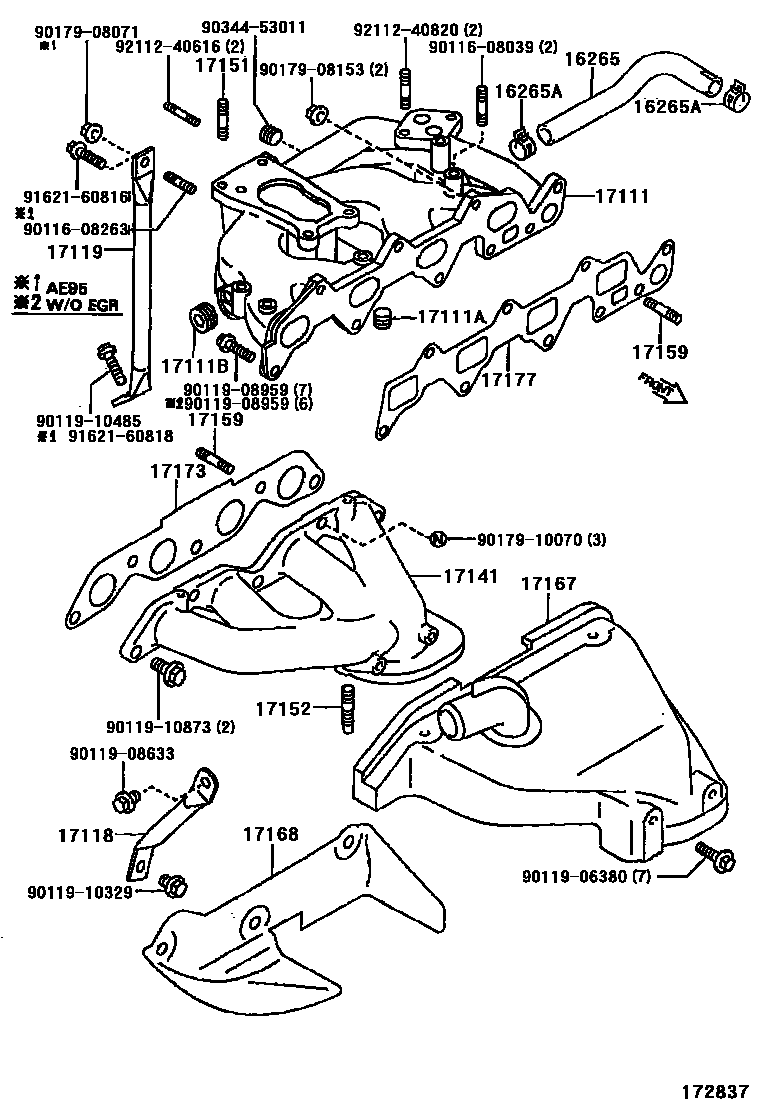

Toyota COROLLA Manifold EPC diagram — 172837 — Manifold — 172837 (198705 – 999999)

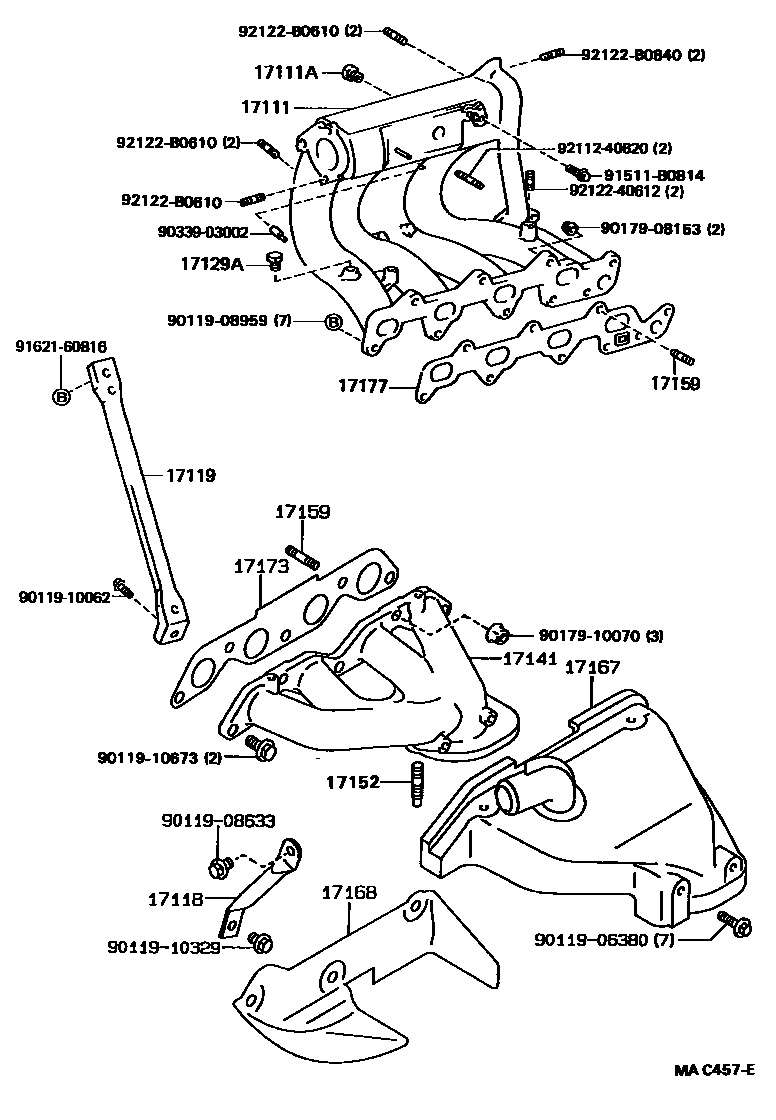

Toyota COROLLA Manifold EPC diagram — MAC457E — Manifold — MAC457E (198908 – 999999)

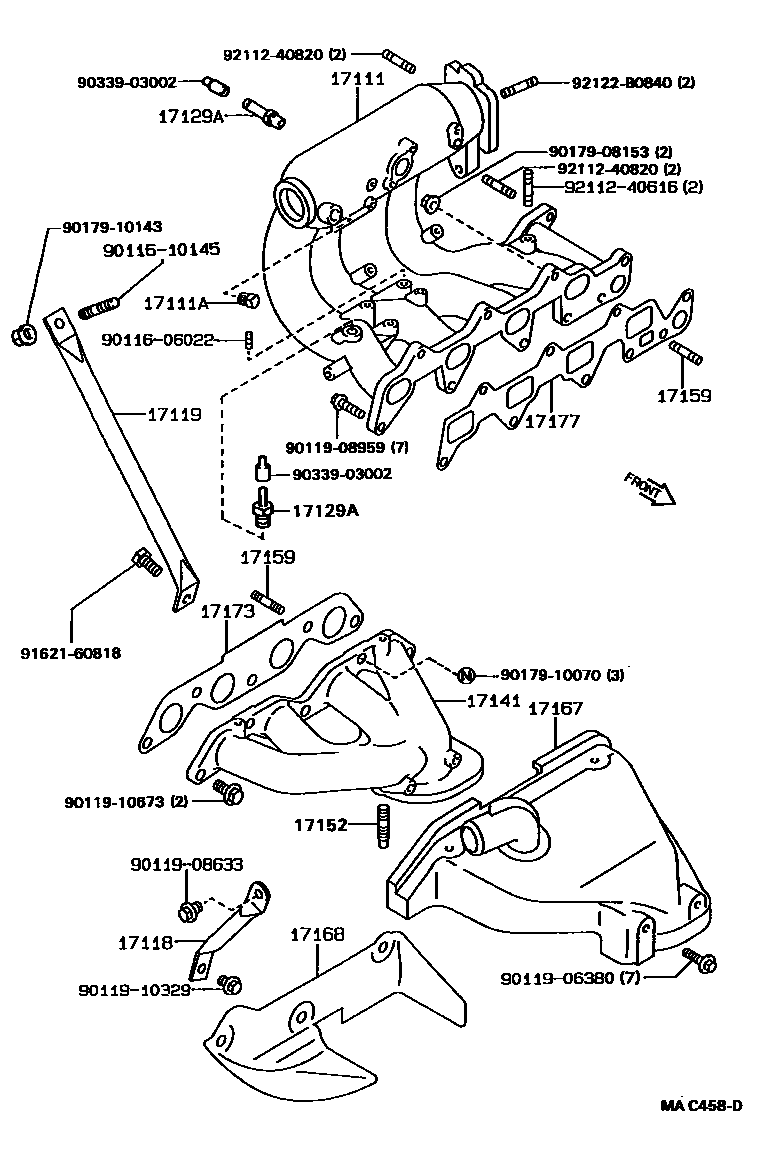

Toyota COROLLA Manifold EPC diagram — MAC458D — Manifold — MAC458D (198710 – 999999)

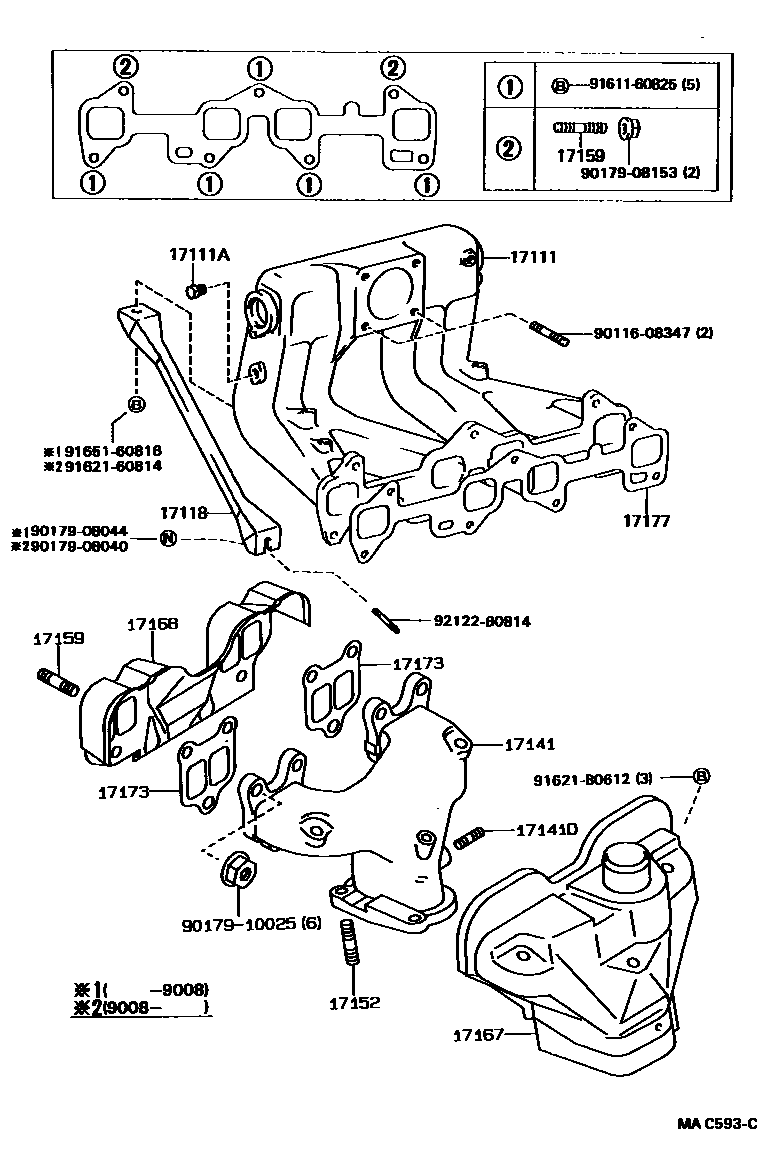

Toyota COROLLA Manifold EPC diagram — MAC593C — Manifold — MAC593C (198908 – 999999)

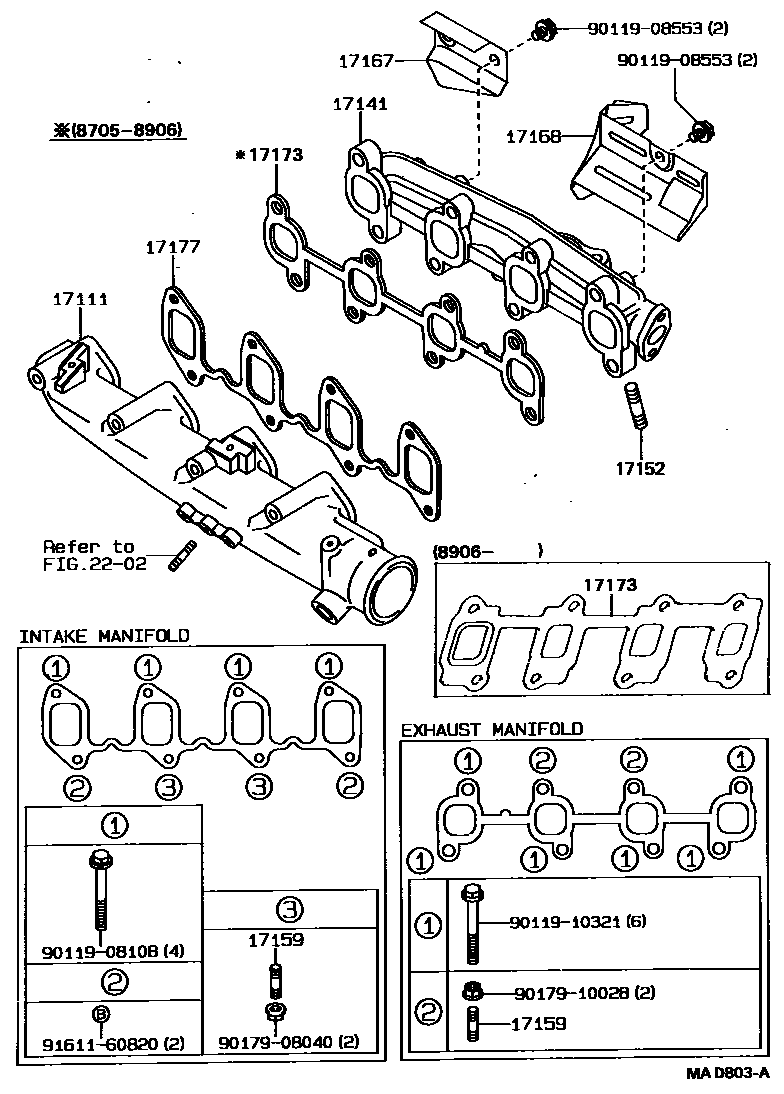

Toyota COROLLA Manifold EPC diagram — MAD803A — Manifold — MAD803A (198705 – 999999)

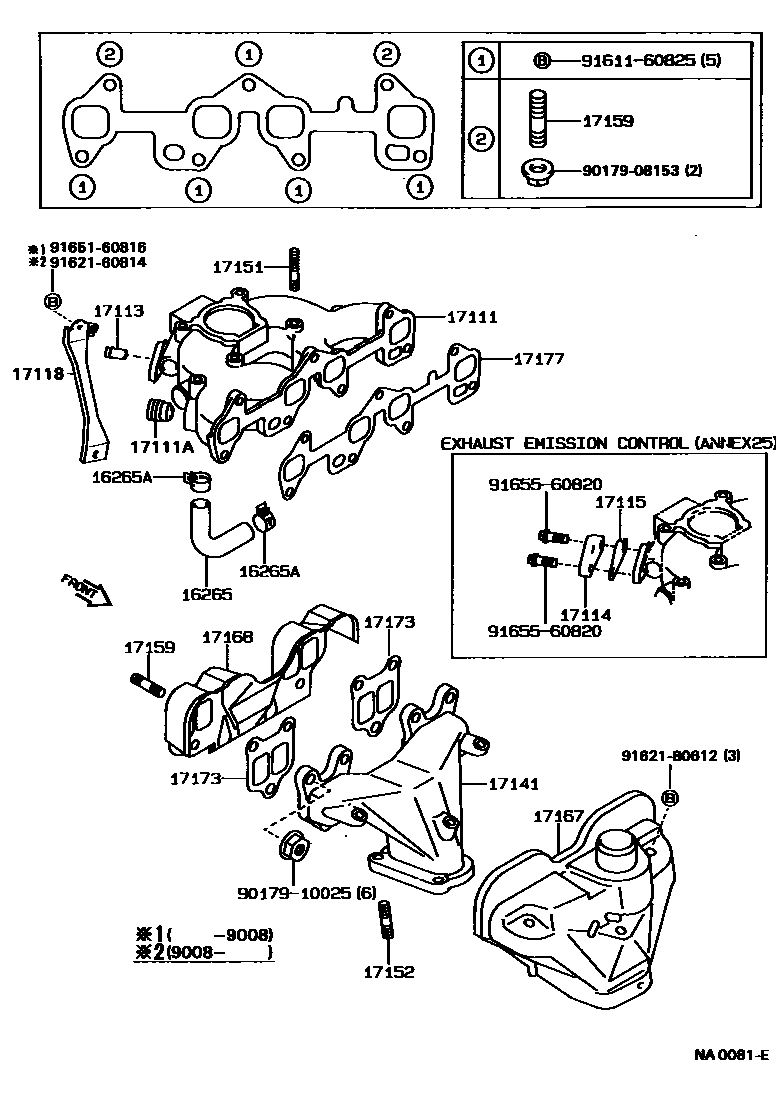

Toyota COROLLA Manifold EPC diagram — NA0081E — Manifold — NA0081E (198705 – 999999)

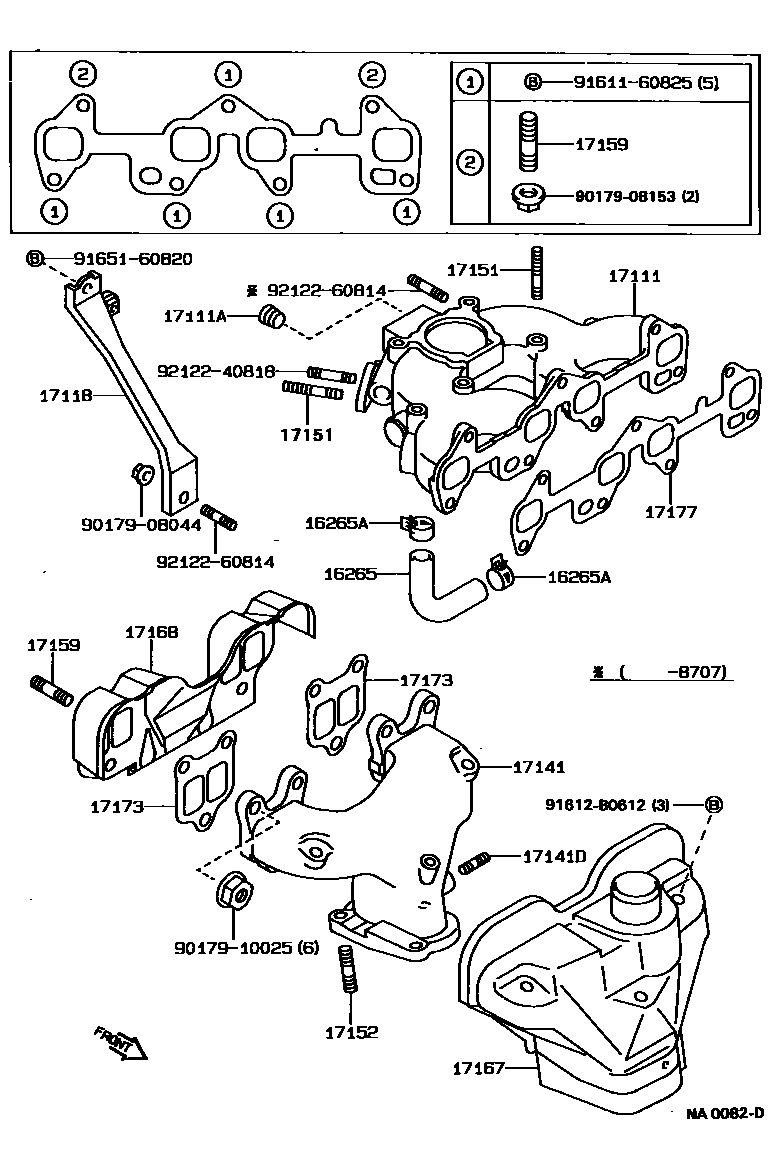

Toyota COROLLA Manifold EPC diagram — NA0082D — Manifold — NA0082D (198705 – 999999)

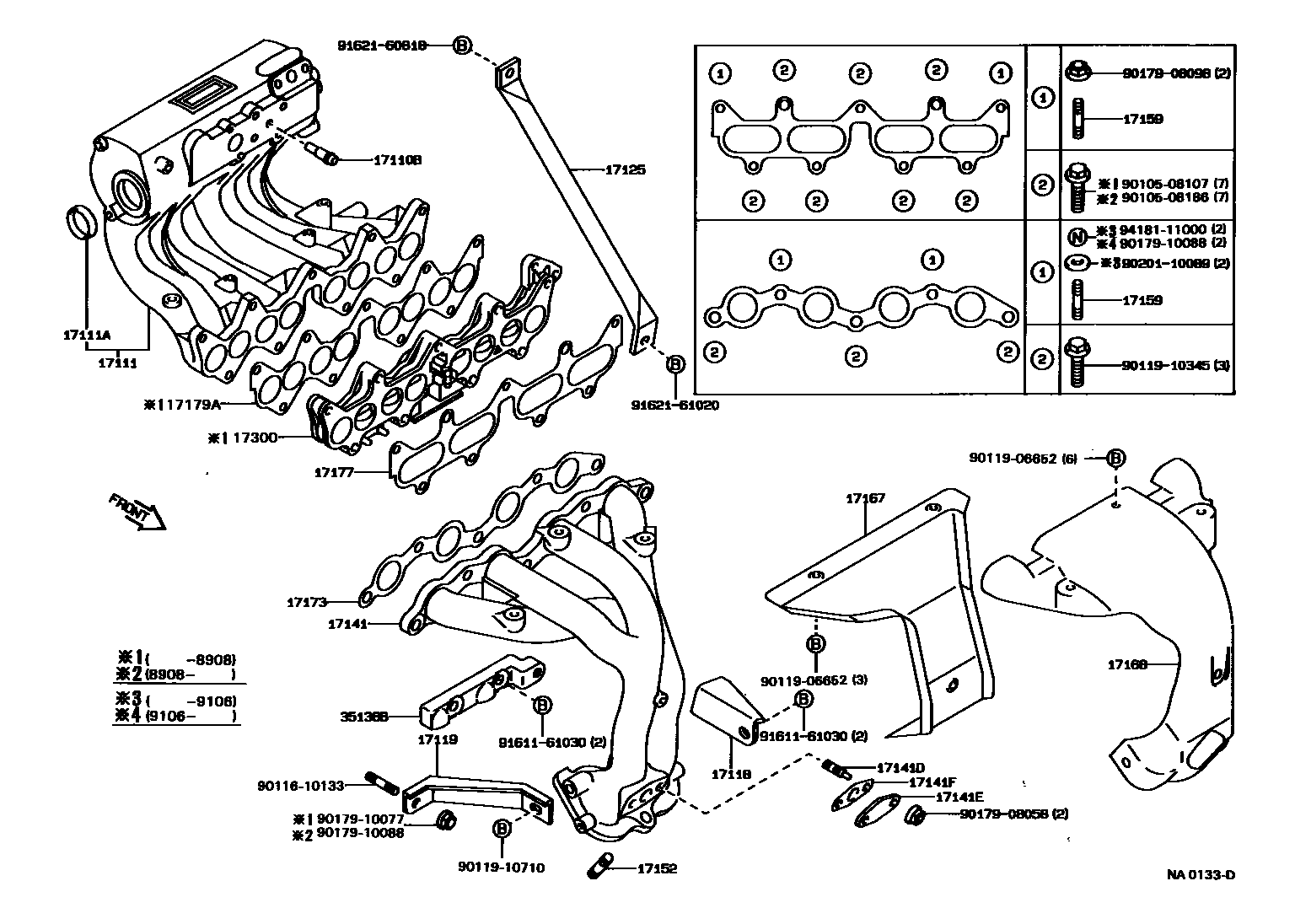

Toyota COROLLA Manifold EPC diagram — NA0133D — Manifold — NA0133D (198705 – 999999)

PNC and OE references

PNC	Part name	OE numbers
16265	Intake manifold water hose	16265-11010 · 16265-15020
16265A	Hose clamp or clip (for intake manifold water hose)	90467-21001 · 90467-21006
17110B	Fitting (for vent hose to manifold)	90405-10009
17111	Intake Manifold	17101-11093 · 17101-11110 · 17101-11130 · 17101-11210 · 17101-16060 · 17101-16070 · 17101-16080 · 17101-16100 · 17101-16110 · 17101-16130 · 17101-16140 · 17101-16160 · 17101-16210 · 17101-16220 · 17111-64090 · 17111-64150
17111A	No. 1 screw plug	90341-22006 · 90344-53011 · 90344-53015 · 90345-51005 · 90345-51006 · 90345-51008 · 96411-43500
17111B	No. 2 screw plug	90344-54003
17113	intake pipe	25541-11010
17114	Intake manifold hole cover	11495-11010
17115	Intake manifold hole cover gasket	25627-11010
17118	Manifold stays	17118-11070 · 17118-11100 · 17118-11130 · 17118-16050 · 17139-16040
17119	No. 2 manifold stay	17118-16040 · 17139-15020 · 17139-16020 · 17139-16050
17125	No. 1 pressure tank stay	17125-16031 · 17125-16050
17129A	Connector No. 1	90345-51006 · 90404-51010
17141	exhaust manifold	17141-11030 · 17141-11040 · 17141-11041 · 17141-11110 · 17141-16180 · 17141-16190 · 17141-16200 · 17141-16260 · 17141-16270 · 17141-64100 · 17141-64101
17141D	Studs (for oxygen sensor)	90116-08128 · 90116-08168
17141E	Exhaust manifold plate	17148-41010
17141F	Gasket (for exhaust manifold plate)	89466-20020 · 89466-30010
17151	Studs (for manifold to carburetor)	90116-08204 · 92112-40832 · 92112-60832 · 92122-40828
17152	Studs (for manifold to exhaust)	90116-10017 · 90116-10058 · 90116-10146 · 90126-10003
17159	Studs (for manifold to cylinder head)	90116-08218 · 90116-08317 · 90116-10037 · 90116-10095 · 92112-60825 · 92112-61028 · 92112-61032 · 92122-60820 · 92122-61028 · 92132-60825
17167	Exhaust manifold No. 1 heat shield	17107-11030 · 17107-11090 · 17107-11100 · 17107-16070 · 17167-11190 · 17167-16050 · 17167-16090 · 17167-64031
17168	Exhaust manifold No.2 insulation pad	17168-10011 · 17168-16050 · 17168-16060 · 17168-64050
17173	Gasket (exhaust manifold to cylinder head)	17173-10020 · 17173-10021 · 17173-15010 · 17173-15011 · 17173-15040 · 17173-16010 · 17173-16011 · 17173-64020 · 17173-64060
17177	No. 1 gasket (intake manifold to cylinder head)	17171-15020 · 17171-15021 · 17171-16030 · 17171-16031 · 17171-16040 · 17177-10010 · 17177-10011 · 17177-10020 · 17177-16012 · 17177-64010 · 17177-64020
17179A	No. 2 intake manifold gasket	17171-16012
17300	Intake control valve assembly	17300-16011
35138B	Reinforcement plate connector	35138-12020
