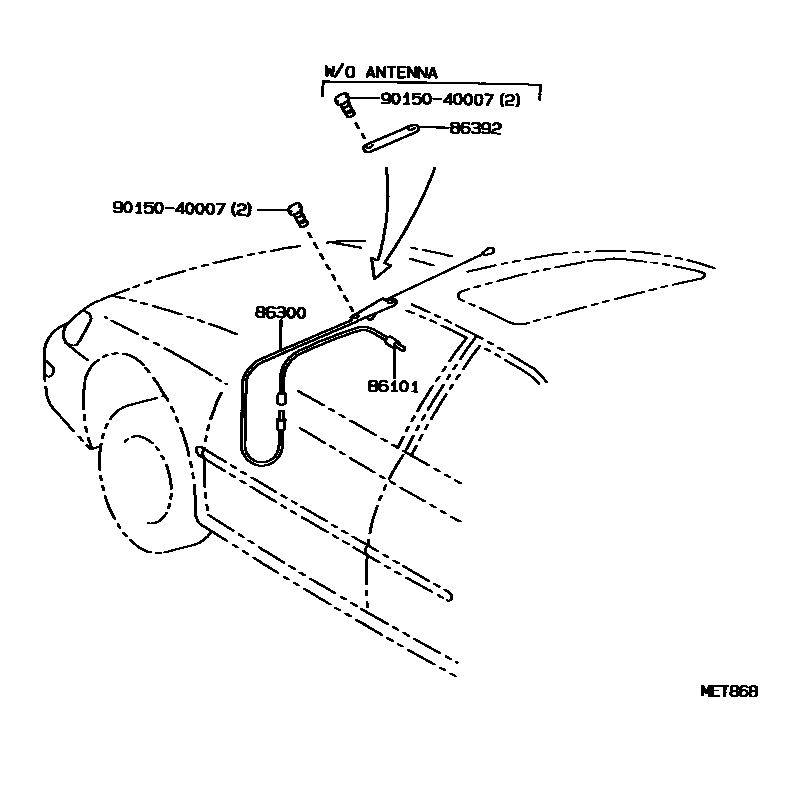

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12180 |
| 86300 | Antenna assembly with fixing parts | 86300-02021 · 86300-12390 · 86300-12391 |
| 86392 | Antenna decorative parts | 86392-12100 |
