Toyota COROLLA 电子燃油喷射系统 — Figure 8404

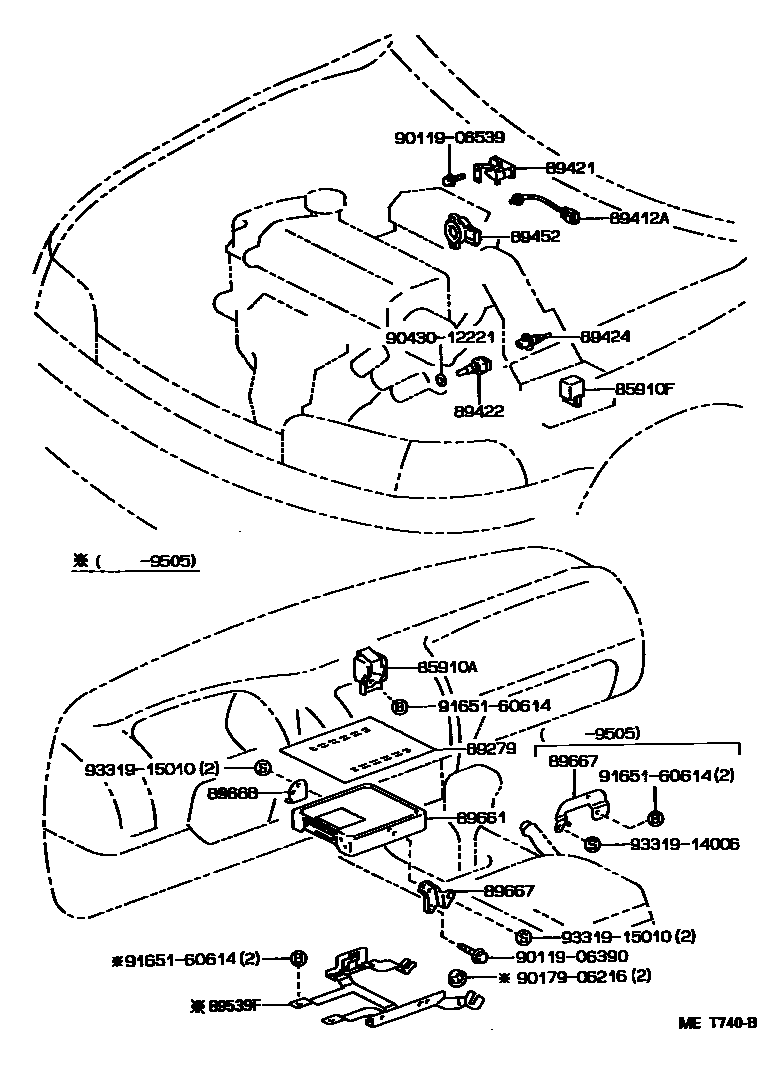

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-12060 |
| 85910F | ECU relay (for EFI) | 90987-02009 |
| 89279 | Engine control ECU cover | 89279-02040 · 89279-12080 · 89279-12100 · 89279-12110 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-33040 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89420-02010 · 89420-12090 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-22090 |
| 89539F | ECU bracket | 89539-12050 |
| 89661 | Engine control ECU | 89661-12810 · 89661-12870 · 89661-12890 · 89661-1A010 · 89661-1A020 · 89661-1A030 · 89661-1A050 · 89661-1A151 · 89661-1A161 · 89661-1A171 · 89661-1A210 · 89661-1A220 · 89661-1A230 · 89661-1A280 · 89661-1A290 · 89661-1A300 · 89661-1A510 · 89661-1A520 · 89661-1A521 · 89661-1A530 · 89661-1A540 · 89661-1A610 · 89661-1A620 · 89661-1A621 · 89661-1A630 · 89661-1A640 · 89661-1A690 · 89661-1A700 · 89661-1A710 · 89661-1A720 |
| 89667 | Engine control ECU bracket | 89667-02040 · 89667-12110 · 89667-12120 |
| 89668 | No. 2 engine control ECU bracket | 89668-02010 · 89668-12050 |
