Toyota COROLLA 高位刹车灯 — Figure 8117

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 3 images and 2 PNC and OE references.

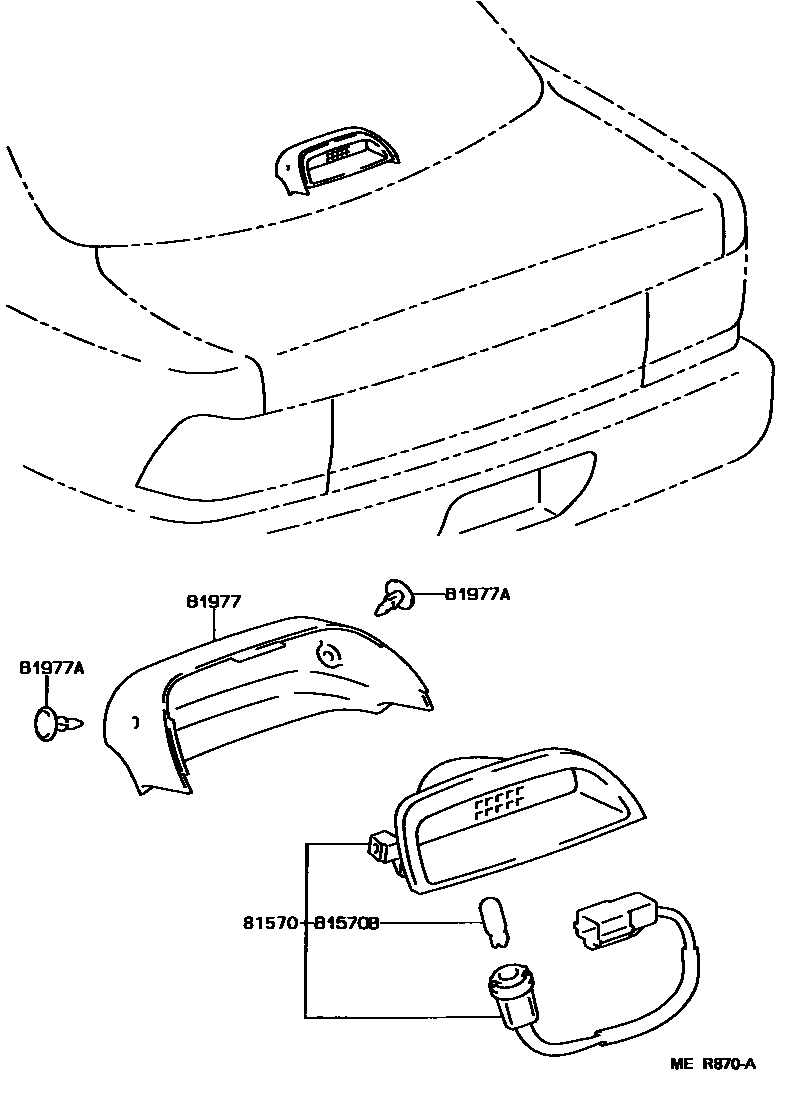

Toyota COROLLA 高位刹车灯 EPC diagram — MER870A — 高位刹车灯 — MER870A (199206 – 999999)

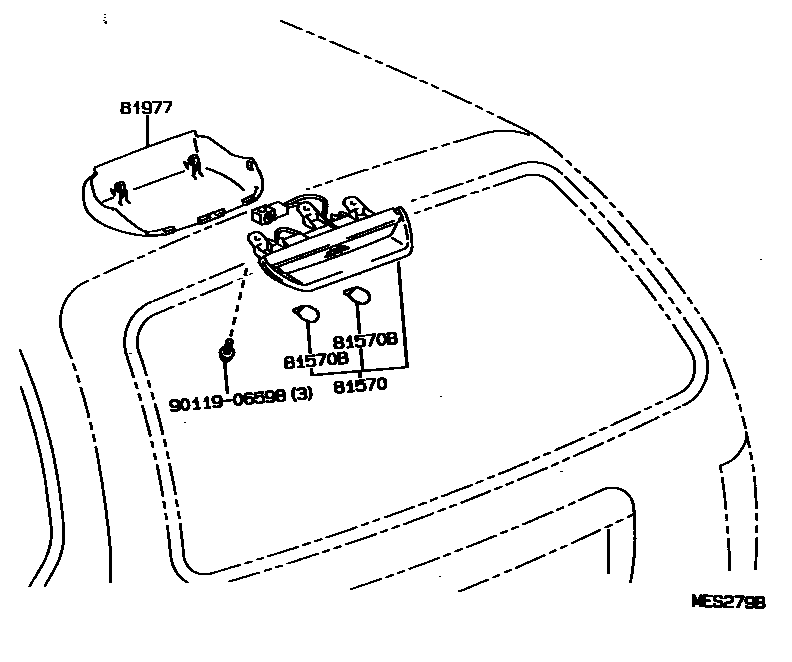

Toyota COROLLA 高位刹车灯 EPC diagram — MES279B — 高位刹车灯 — MES279B (199206 – 199508)

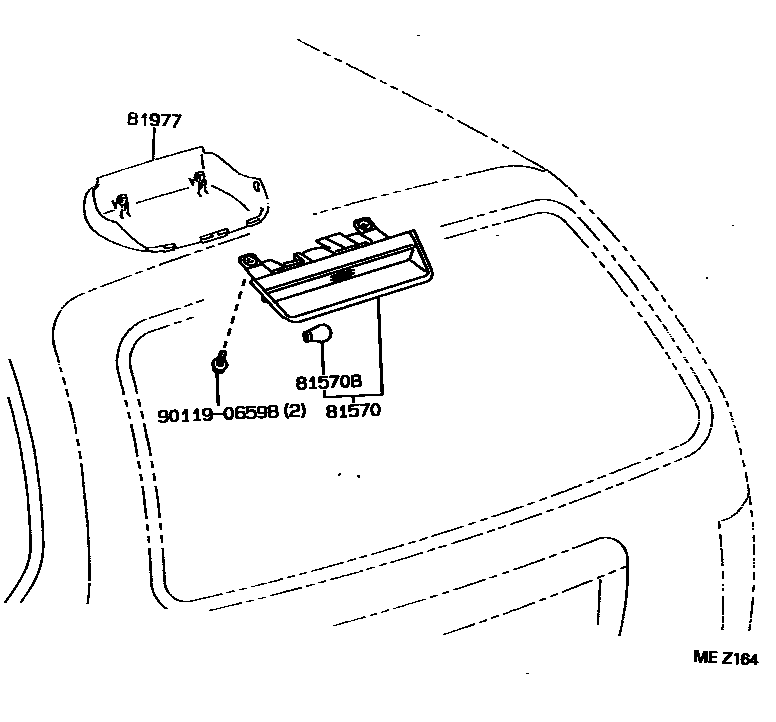

Toyota COROLLA 高位刹车灯 EPC diagram — MEZ164 — 高位刹车灯 — MEZ164 (199508 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81570	Central brake light assembly	81570-13030 · 81570-13060 · 81570-13070
81570B	Bulb (for center brake light)	90981-11039 · 99132-11210
