Toyota COROLLA 前转向灯 — Figure 8103

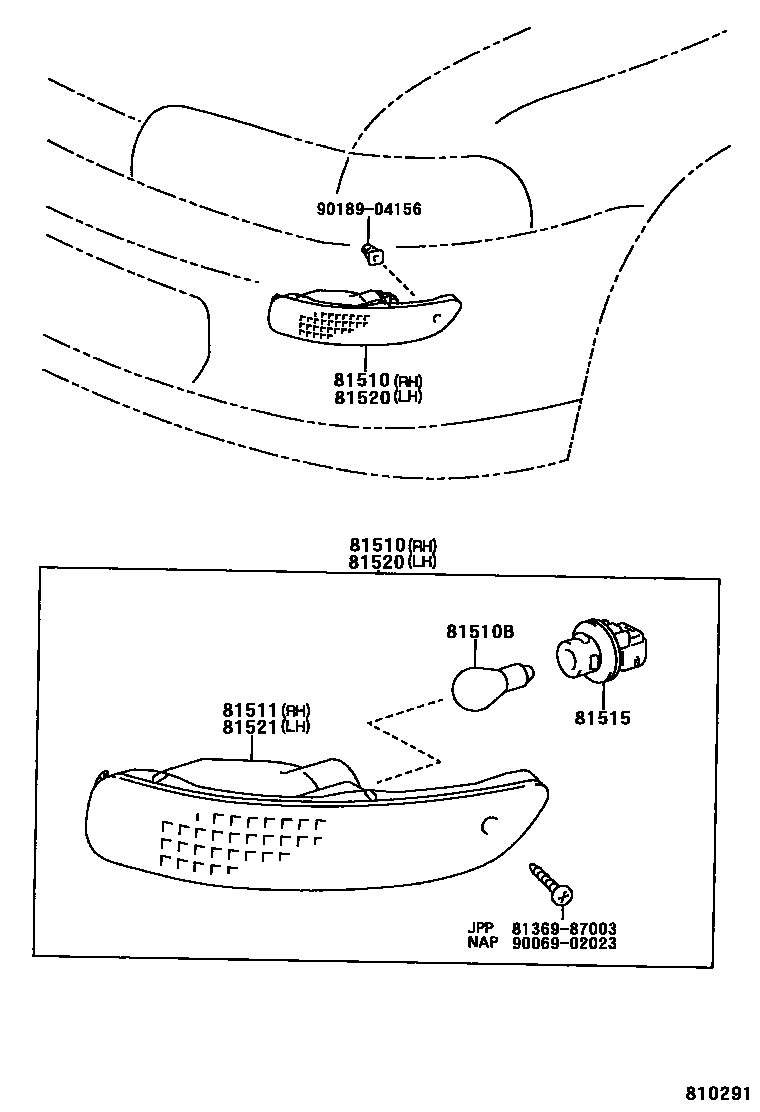

Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-12720 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11270 |
| 81511 | Right front turn signal lamp cover | 81511-12720 |
| 81515 | Front turn signal light body wiring harness sub-assembly | 90075-99078 · 90075-99092 |
| 81520 | Left front turn signal lamp assembly | 81520-12700 |
| 81521 | Left front turn signal lamp cover | 81521-12700 |
