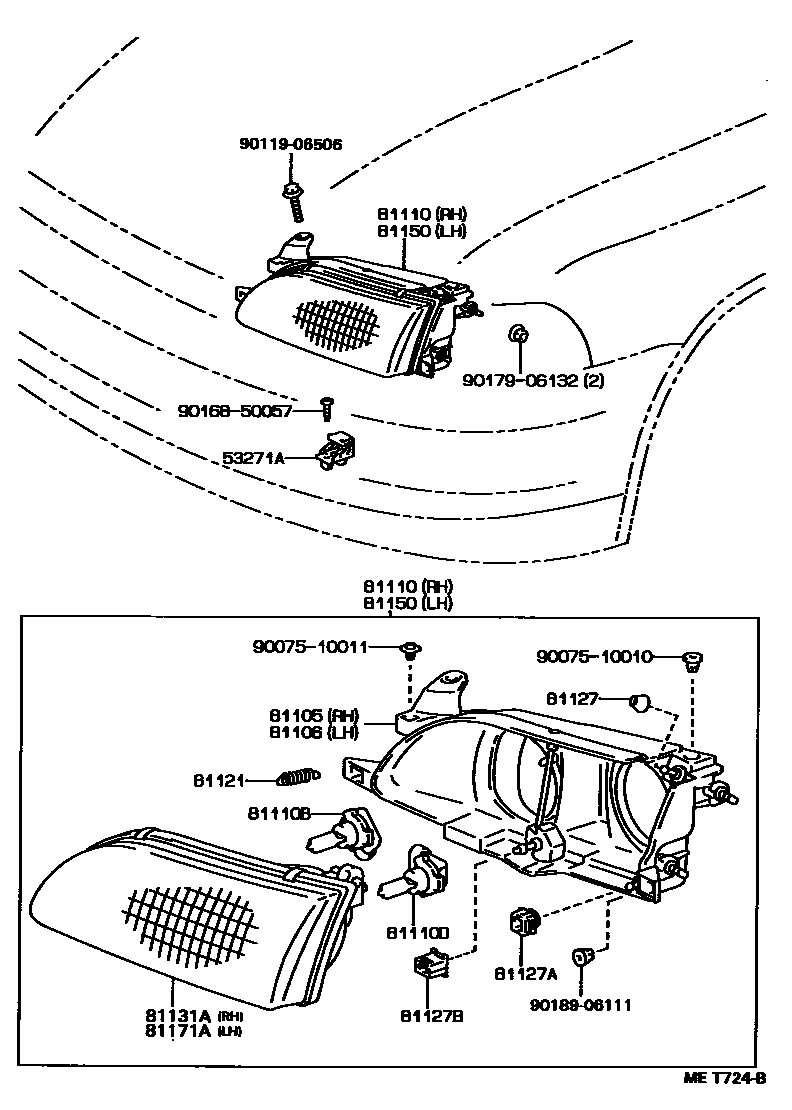

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-12040 · 53271-12060 |
| 81105 | Right headlight housing sub-assembly | 81105-1E220 |
| 81106 | Left headlight housing sub-assembly | 81106-1A490 |
| 81110 | Right headlight assembly | 81110-1E220 · 81110-1E221 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90080-81040 |
| 81121 | headlight spring | 90075-25514 |
| 81127 | No. 1 headlight support | 81127-1A191 |
| 81127A | No. 2 headlight support | 81128-22630 |
| 81127B | No. 3 headlight support | 90075-10806 |
| 81131A | Right headlight assembly assembly | 81130-1E220 · 81130-1E221 |
| 81150 | Left headlight assembly | 81150-1A490 · 81150-1A491 |
| 81171A | Left headlight assembly assembly | 81170-1A490 · 81170-1A491 |
