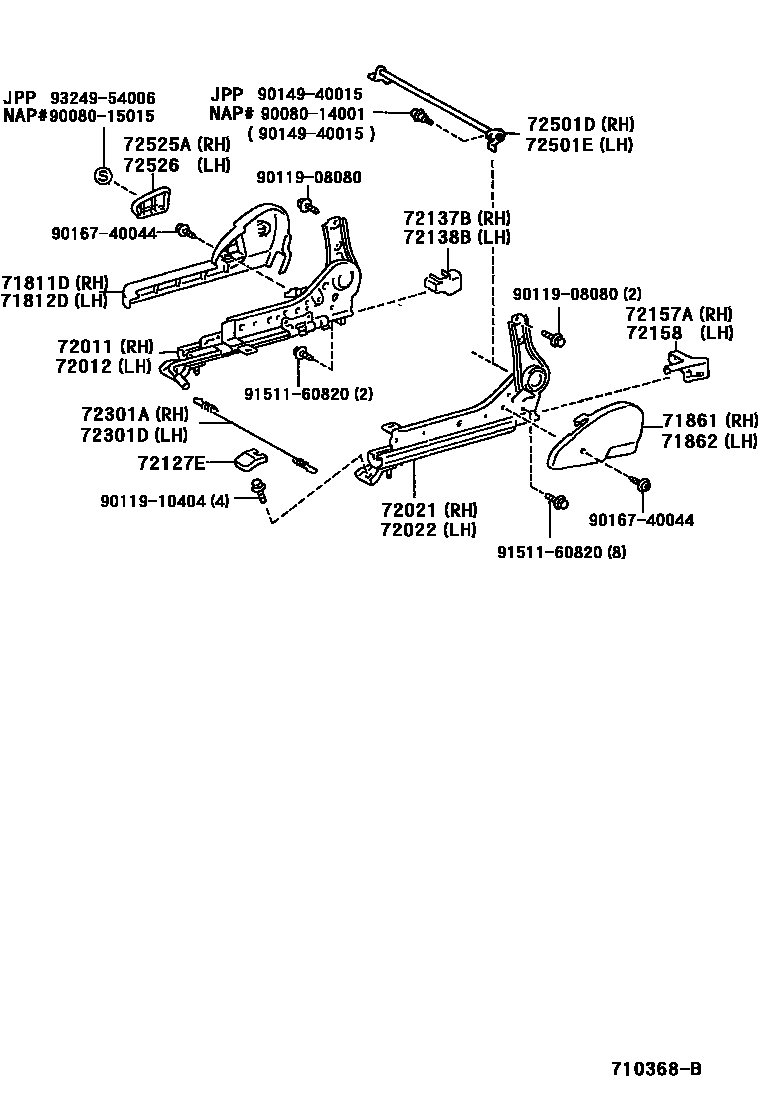

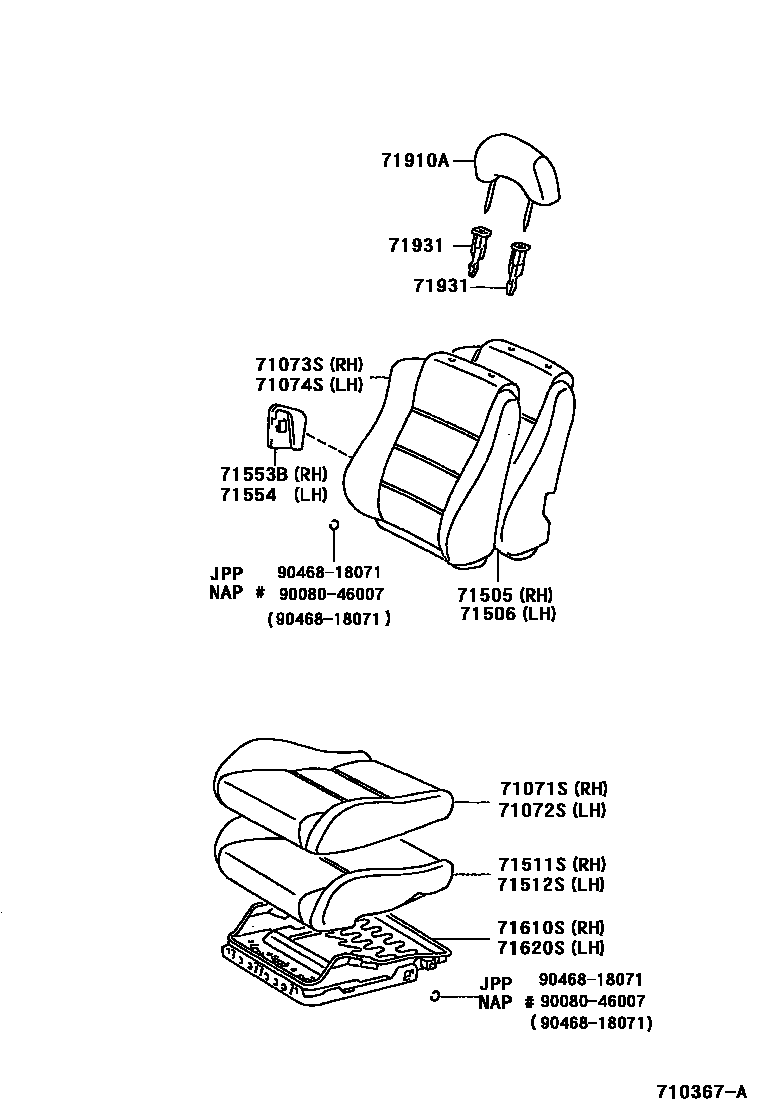

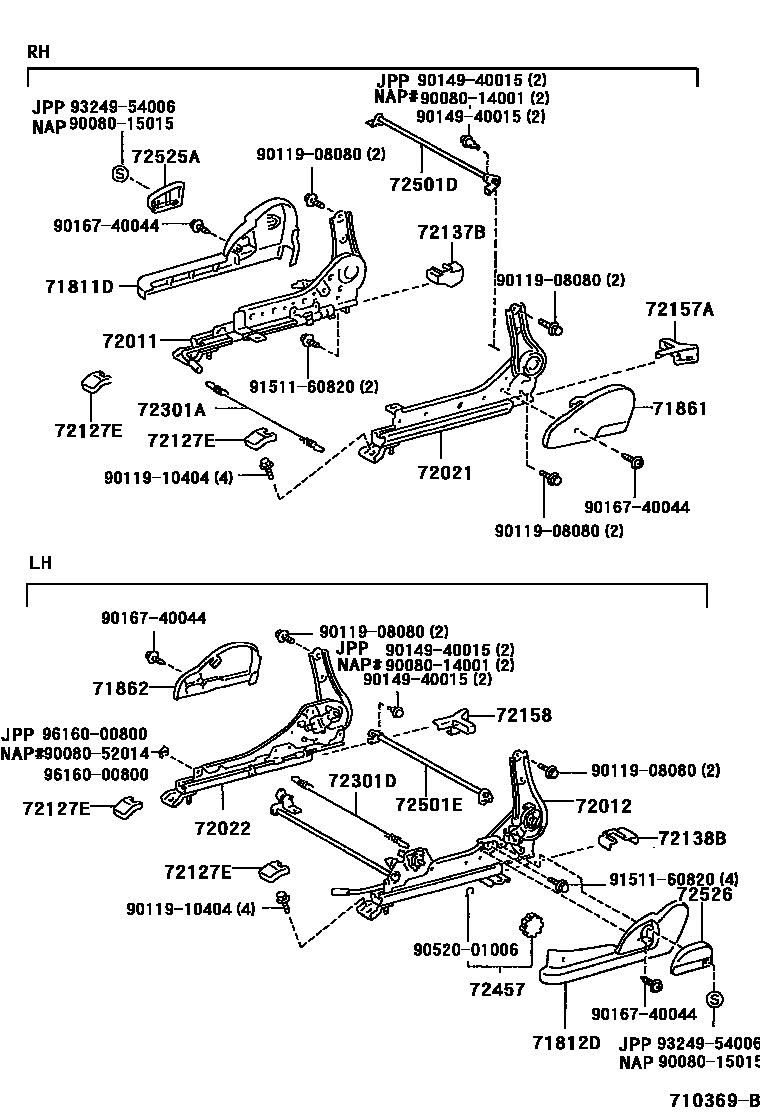

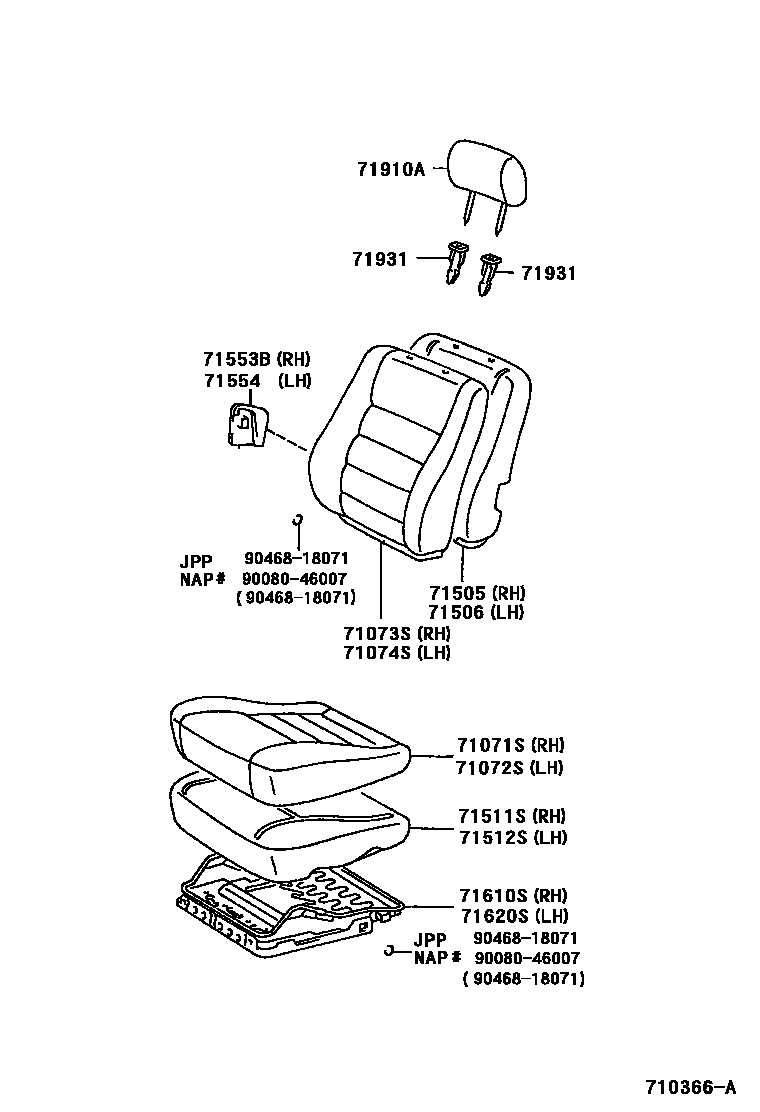

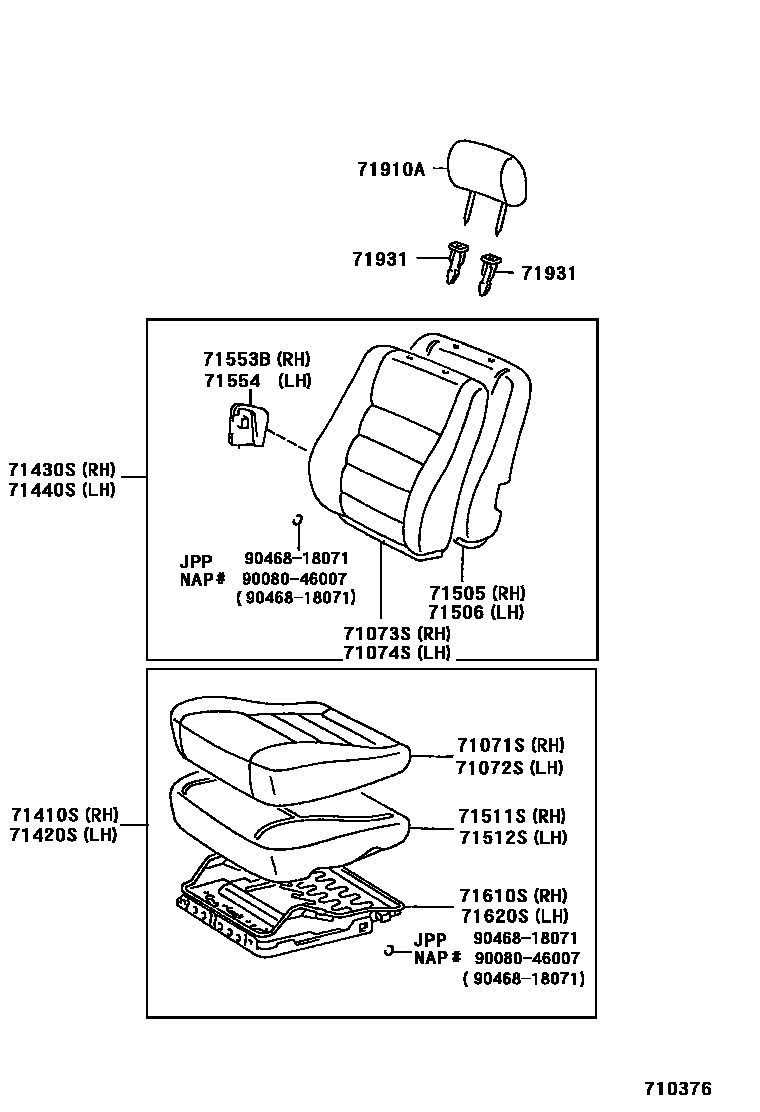

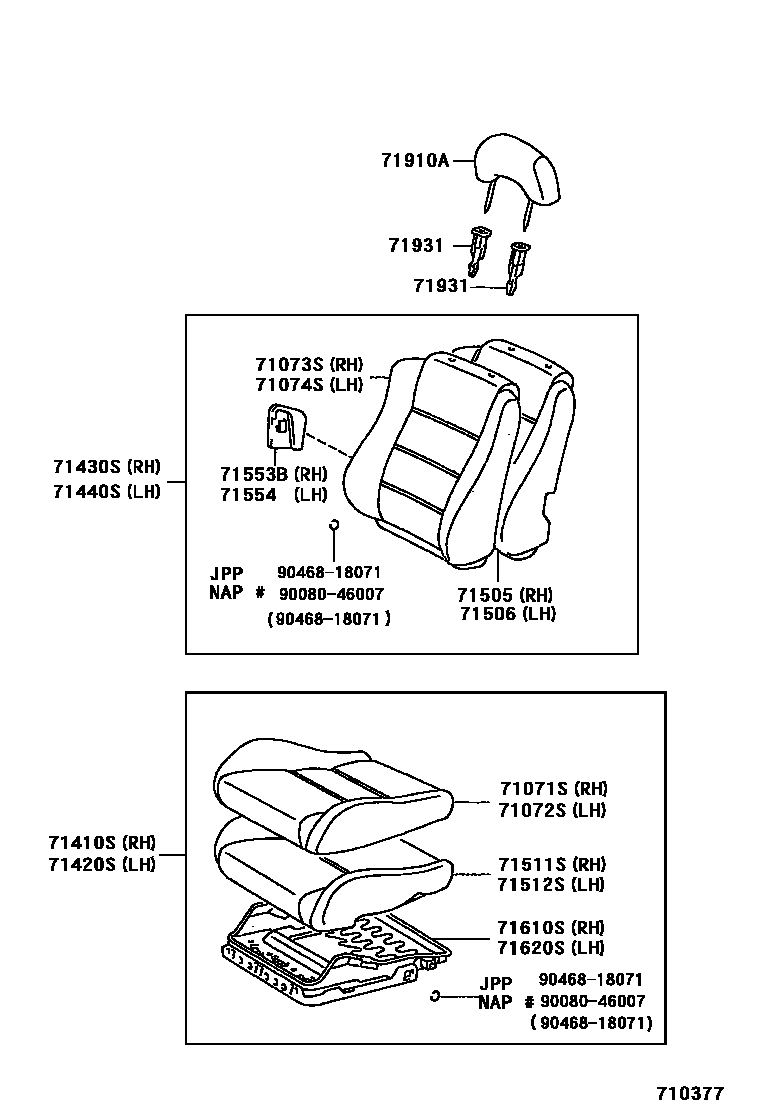

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12301 · 71505-12311 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71505-12301 · 71505-12311 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12770 · 71511-12810 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12770 · 71511-12810 |
| 71553B | Front B seat back cushion | 71553-12290 |
| 71554 | Front C seat back cushion | 71554-12130 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12420 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12280 · 71620-12290 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-12210 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12300 · 72012-12310 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12250 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12350 · 72022-12360 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12160 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12140 · 72301-12160 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-12080 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-12060 |
