Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 4 PNC and OE references.

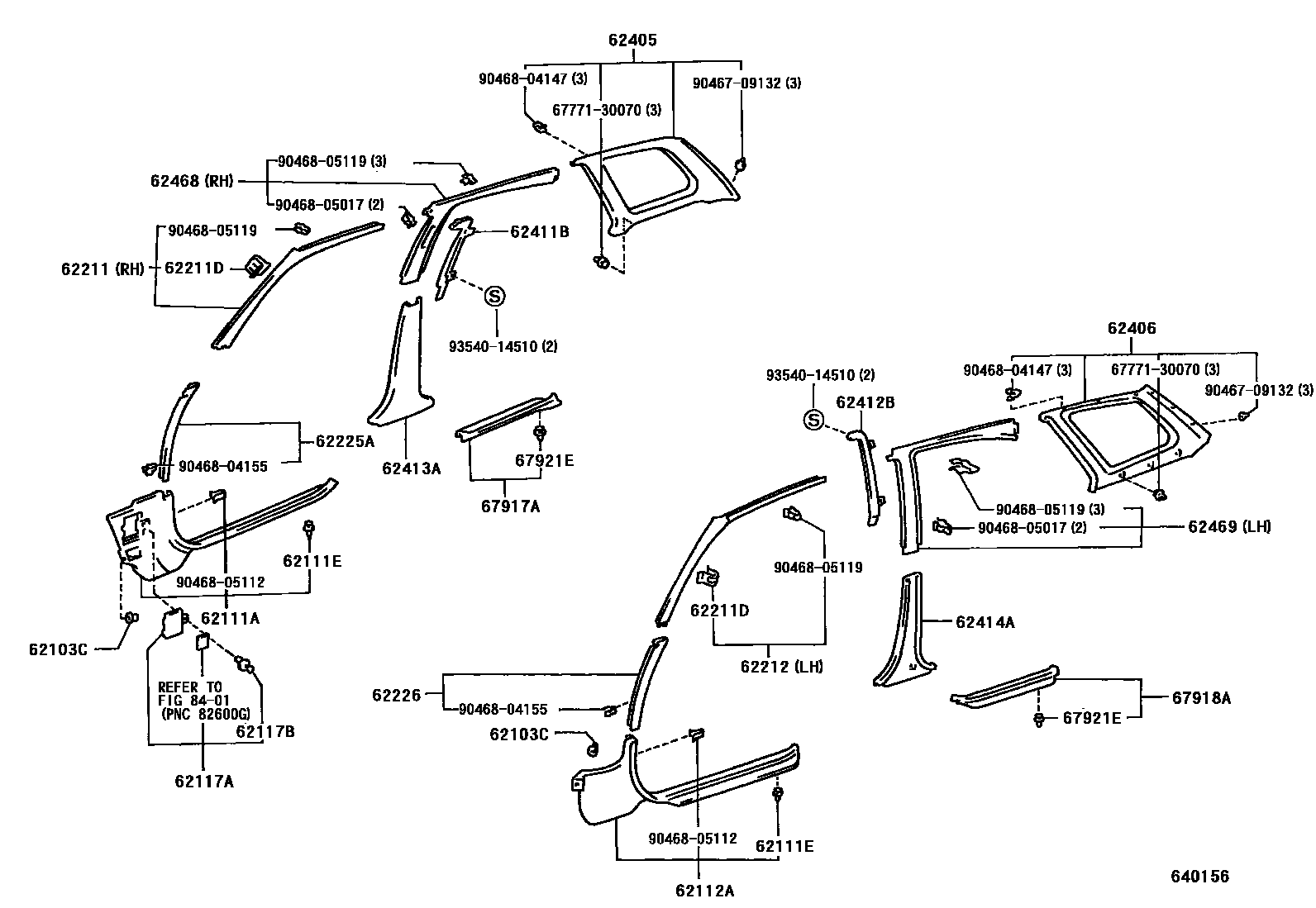

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640156
内饰板和车门防水胶条 — 640156 (199205 – 999999)

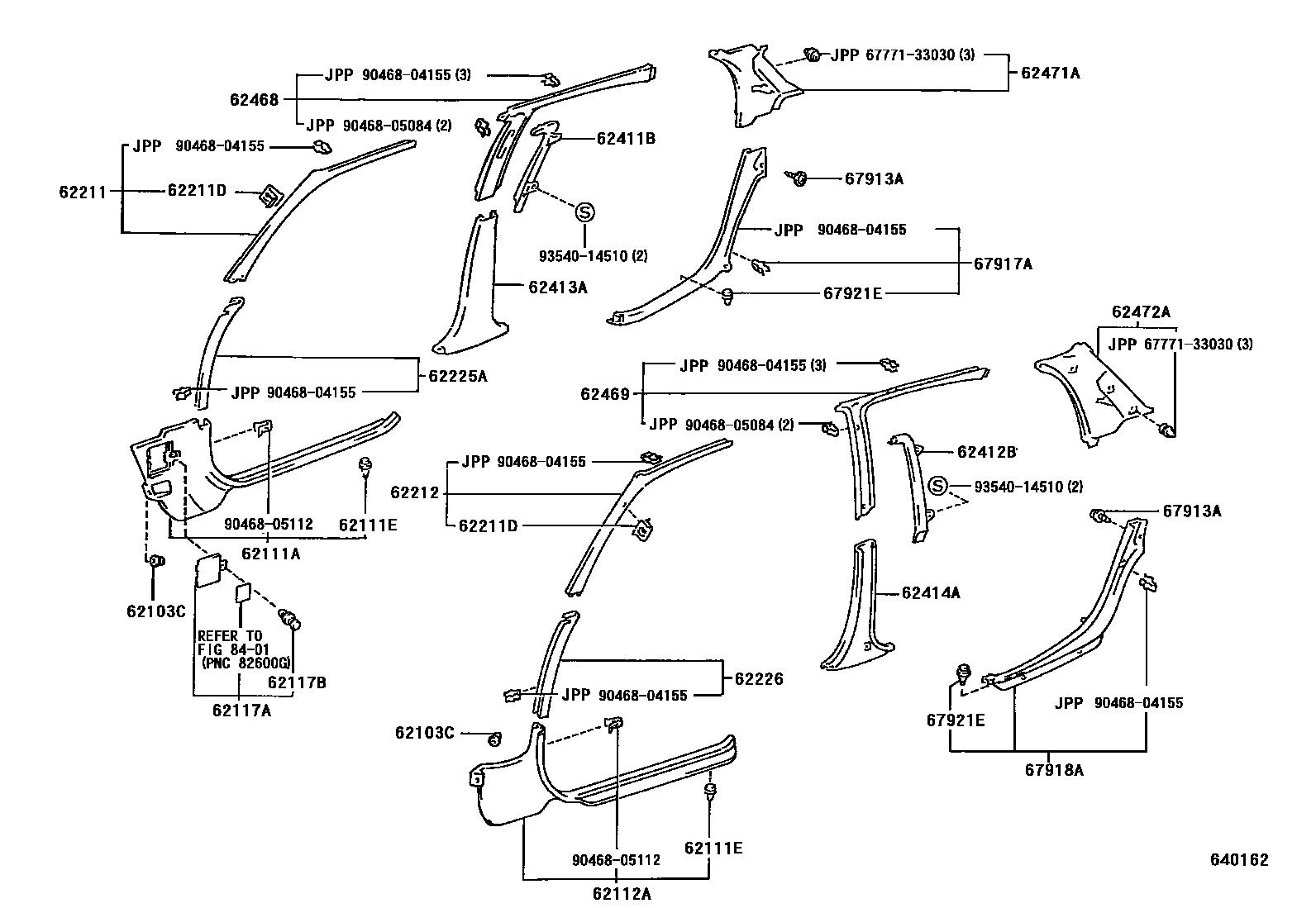

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640162
内饰板和车门防水胶条 — 640162 (199206 – 999999)

PNC and OE references

PNCPart nameOE numbers
62111EFront wall side trim panel fixings67921-32010
62117BNo. 1 clip (for cowl side trim panel)90467-08149
62211DClip (for body front pillar decorative panel)90468-05084
67921ERear door wear plate fixing parts67921-32010
