Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

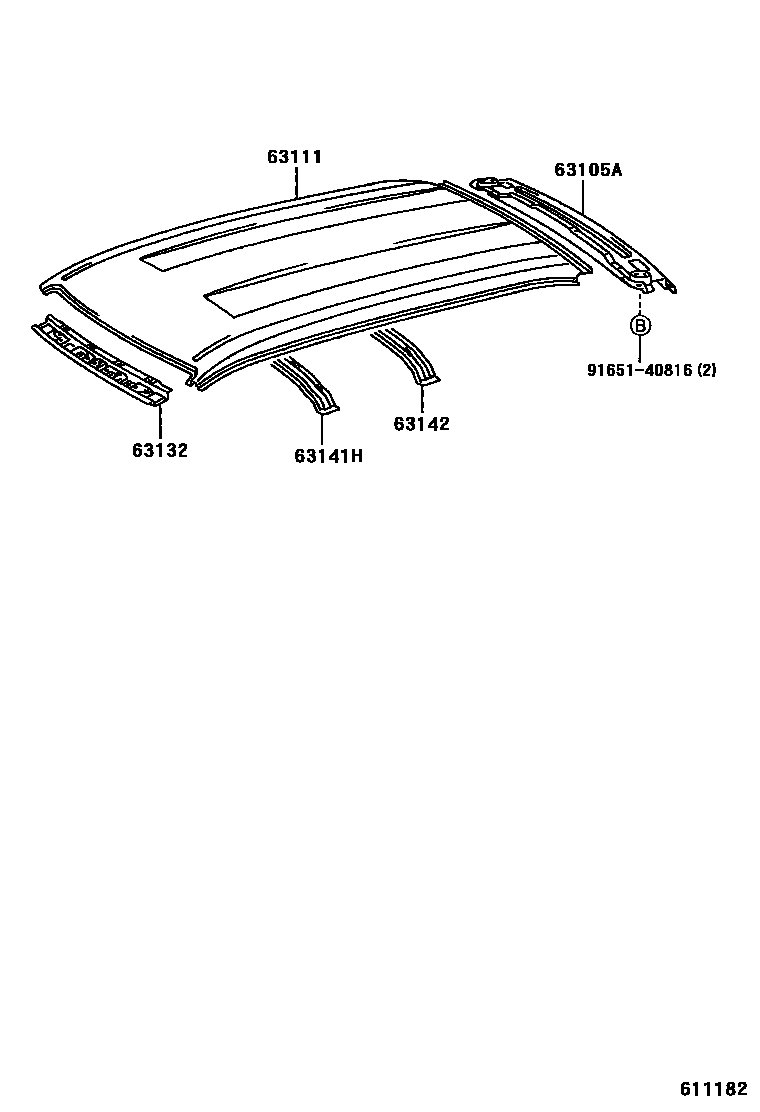

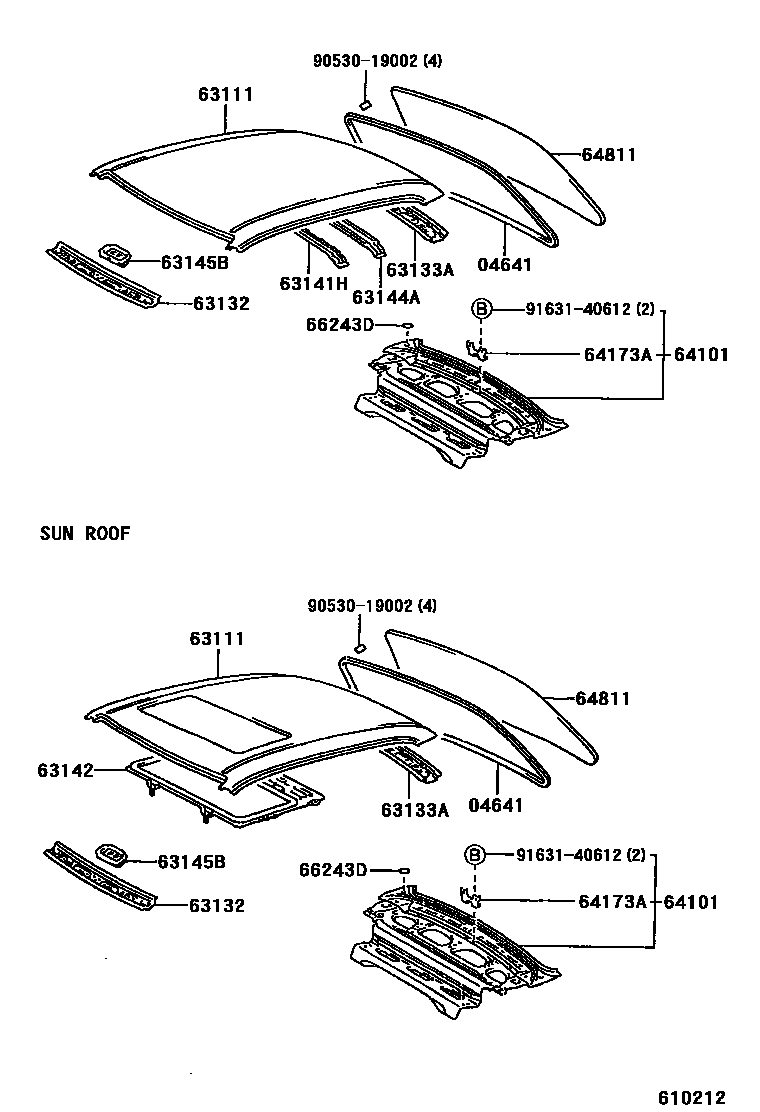

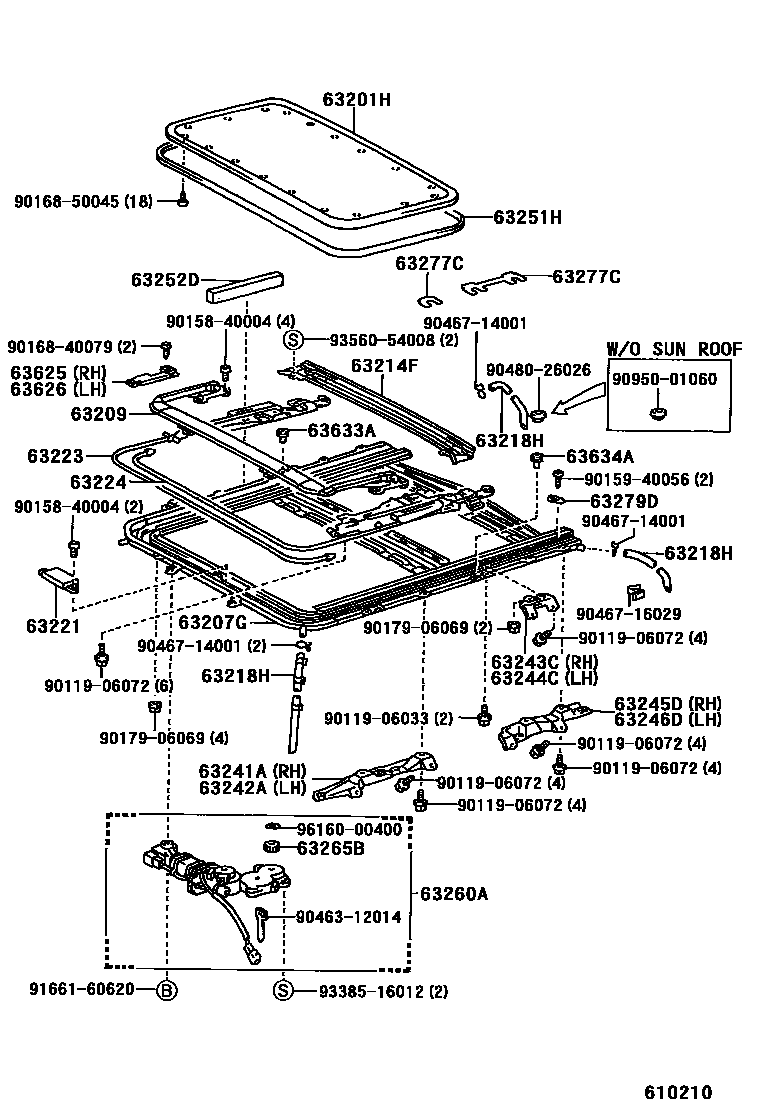

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-12010 |
| 63105A | Back door opening frame sub-assembly | 63105-13080 |
| 63111 | roof panel | 63111-12530 · 63111-12540 · 63111-13190 |
| 63132 | Windshield inner roof panel | 63102-13020 · 63132-12170 |
| 63133A | upper frame of back window | 63133-12190 |
| 63141H | Center roof panel reinforcement | 63141-12160 · 63141-13060 |
| 63142 | No. 2 roof panel reinforcement | 63142-12060 · 63142-13050 |
| 63144A | No. 4 roof panel reinforcement | 63144-12020 |
| 63145B | Windshield roof reinforcement | 63145-12100 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-12190 |
| 63207G | Sliding sunroof guide rail sub-assembly | 63207-12111 · 63207-12112 |
| 63209 | Roof deflector sub-assembly | 63209-12080 |
| 63214F | Roof rear drain channel | 63214-12040 |
| 63218H | Sliding skylight drain hose | 63249-12160 · 63249-12210 |
| 63221 | Sliding sunroof cable duct | 63221-12070 |
| 63223 | Right sliding sunroof transmission cable | 63223-12080 |
| 63224 | Left sliding sunroof transmission cable | 63224-12070 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-12040 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-12020 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-12060 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-12060 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-12030 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-12020 |
| 63251H | Sliding skylight seal | 63250-12020 |
| 63252D | Sliding skylight frame sealing strip | 63252-12030 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12070 |
| 63265B | Sliding sunroof driving gear | 63265-12020 |
| 63277C | Sliding skylight panel gasket | 63277-20020 · 63277-20030 · 63277-20040 · 63277-20050 |
| 63279D | Sliding sunroof guide rail stop | 63279-12020 |
| 63625 | Right sliding sunroof guide block | 63625-12010 |
| 63626 | Left sliding sunroof guide block | 63626-12010 |
| 63633A | Sliding sunroof frame bushing No. 1 | 63633-12010 |
| 63634A | Sliding sunroof frame bushing No. 2 | 63634-12010 |
| 64101 | Upper back panel sub-assembly | 64101-12460 · 64101-12470 |
| 64173A | high brake light bracket | 64173-12050 |
| 64811 | back window glass | 64811-02070 · 64811-02080 · 64811-1A390 · 64811-1A400 · 64811-1A430 |
| 66243D | Rear body protection piece No. 1 | 66243-20010 |
