Toyota COROLLA 中央扶手箱和支架 — Figure 5806

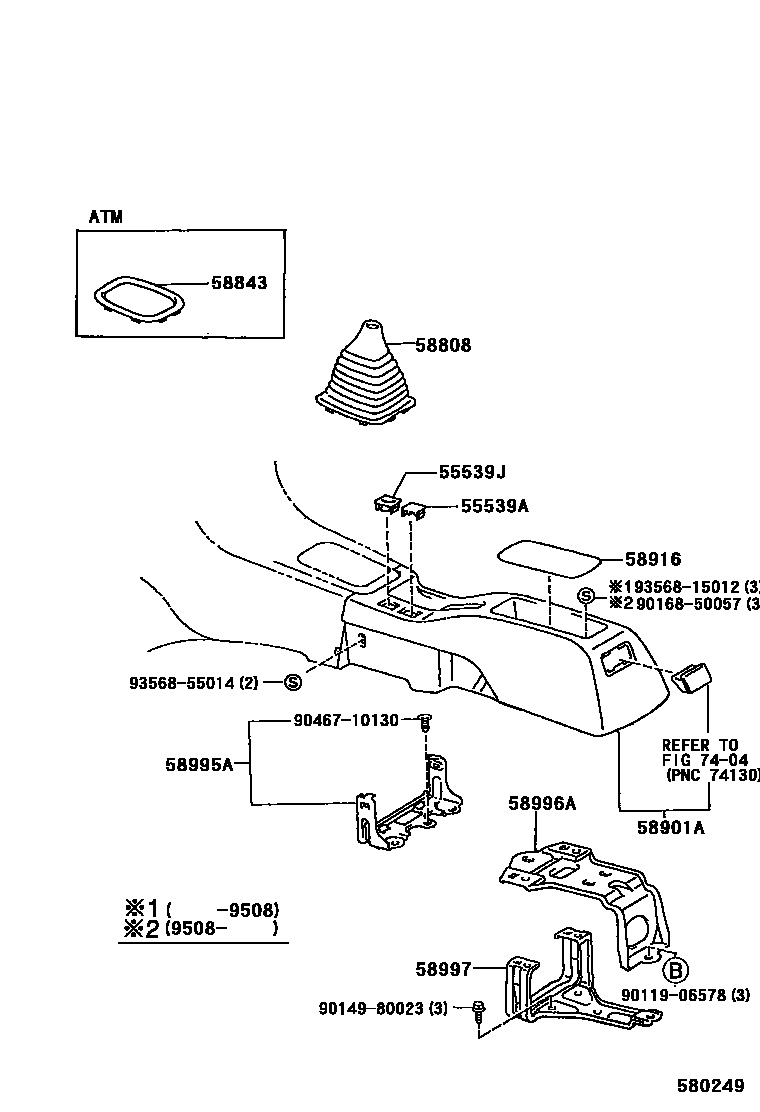

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58916 | Armrest box bottom pad | 58916-12050 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-12080 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12100 · 58996-12101 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-12060 · 58997-12070 |
