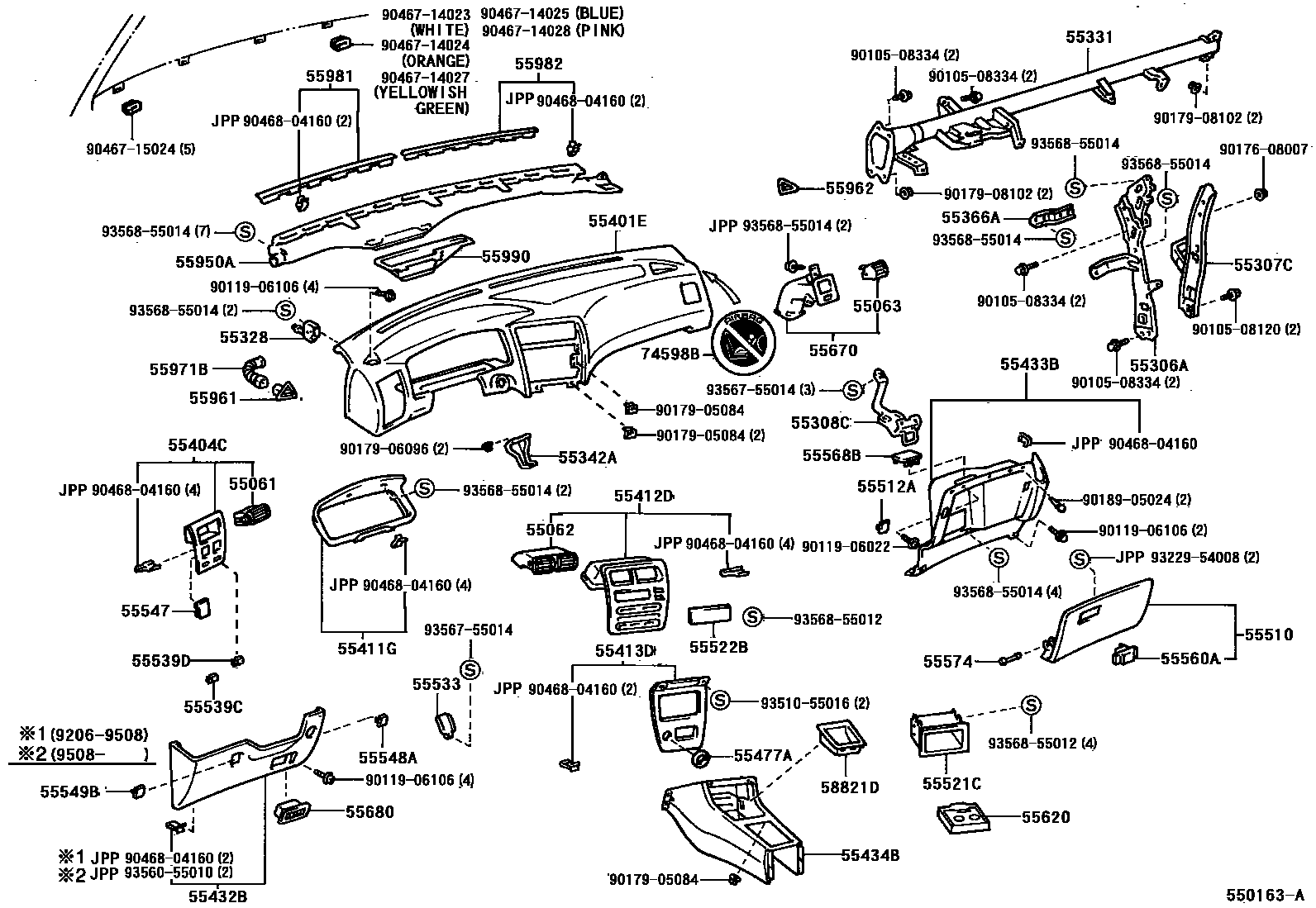

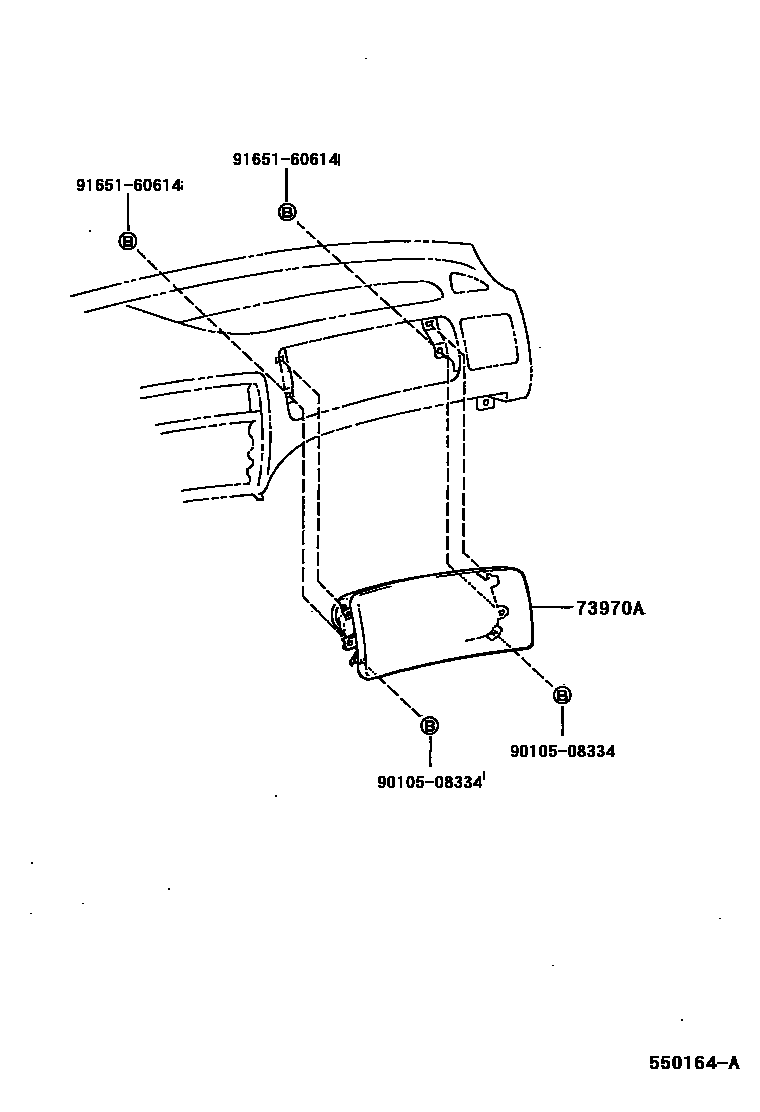

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55061 | No. 1 air register sub-assembly on the instrument panel | 55061-12170 |
| 55062 | No. 2 air register sub-assembly on the instrument panel | 55062-12080 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12170 · 55306-12210 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12220 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12200 · 55308-12240 |
| 55328 | Instrument panel pin 1 | 55328-12060 |
| 55331 | Dashboard reinforcement | 55330-12270 · 55330-12271 · 55330-12290 · 55330-12291 |
| 55342A | Dashboard to cowl No. 2 bracket | 55342-12040 |
| 55366A | Radio No. 1 mounting bracket | 55366-12050 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-12590 · 55404-12630 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-12890 |
| 55412D | Center instrument cluster decorative panel | 55405-12580 · 55405-12600 · 55405-12610 · 55405-12850 · 55405-12870 · 55405-12880 |
| 55413D | Center instrument cluster lower decorative panel | 55413-12430 |
| 55477A | Cigarette lighter hole frame | 55477-12100 |
| 55521C | stereo system hole cover | 55521-16040 |
| 55522B | Radio tuner opening cover | 55522-32010 |
| 55533 | automatic clock hole cover | 55533-12130 |
| 55539C | Spare switch hole cover | 55539-12110 |
| 55539D | Spare switch hole cover | 55539-12110 |
| 55547 | Remote control rearview mirror hole cover | 55547-12020 |
| 55568B | Glove box cover decorative panel | 55568-12010 · 55568-24020 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55620 | Dashboard cup holder assembly | 55620-02010 · 55620-02020 · 55620-12040 · 55620-12060 |
| 55680 | Instrument panel No. 1 down-regulator assembly | 55680-12050 |
| 55950A | Defroster nozzle assembly | 55950-12160 · 55950-12180 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-12110 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-12070 |
| 55982 | Defroster No. 2 nozzle decorative strip | 55982-12070 |
| 55990 | Central defroster nozzle assembly | 55990-12020 |
| 74598B | Passenger air bag warning label | 74598-20010 |
