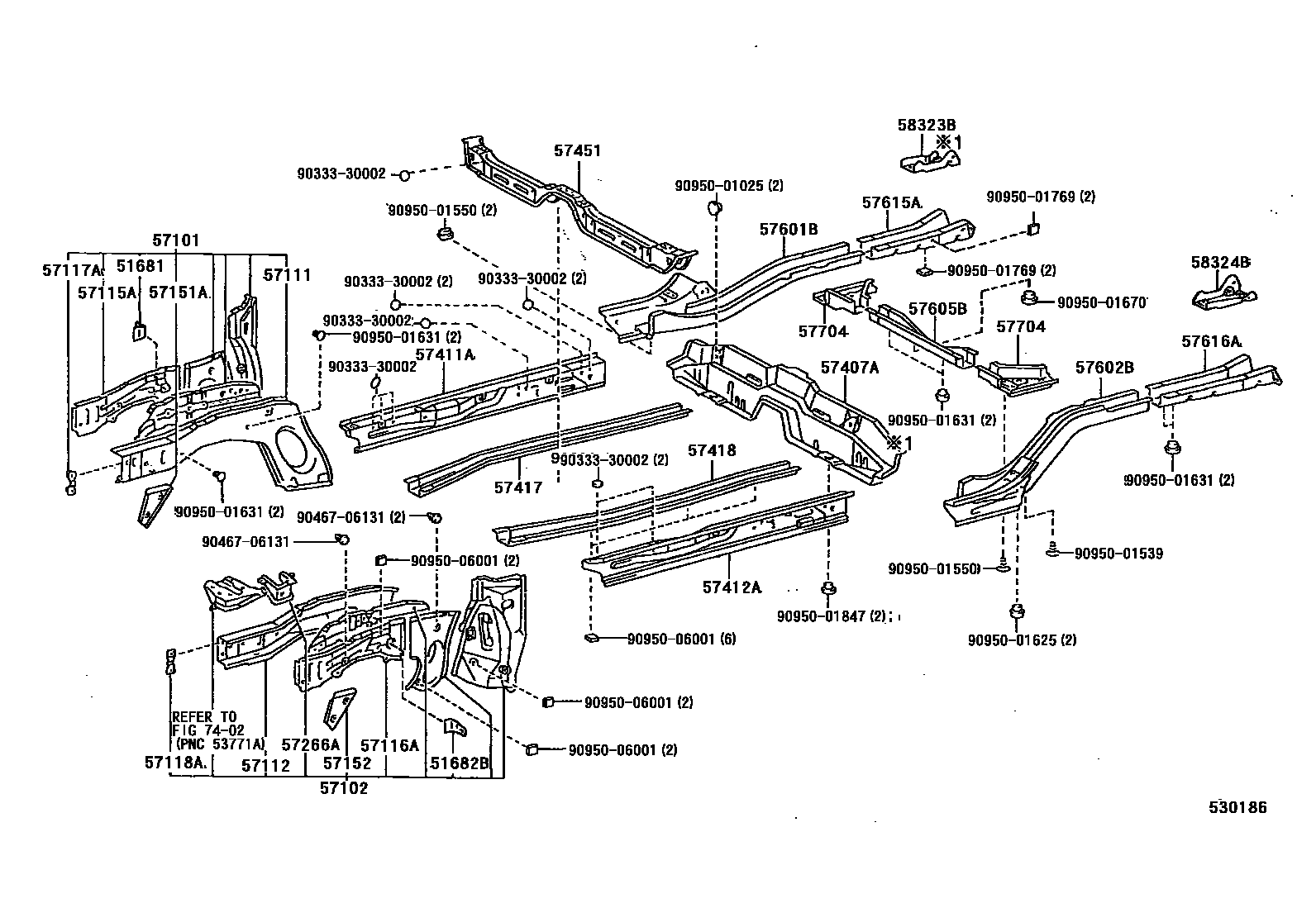

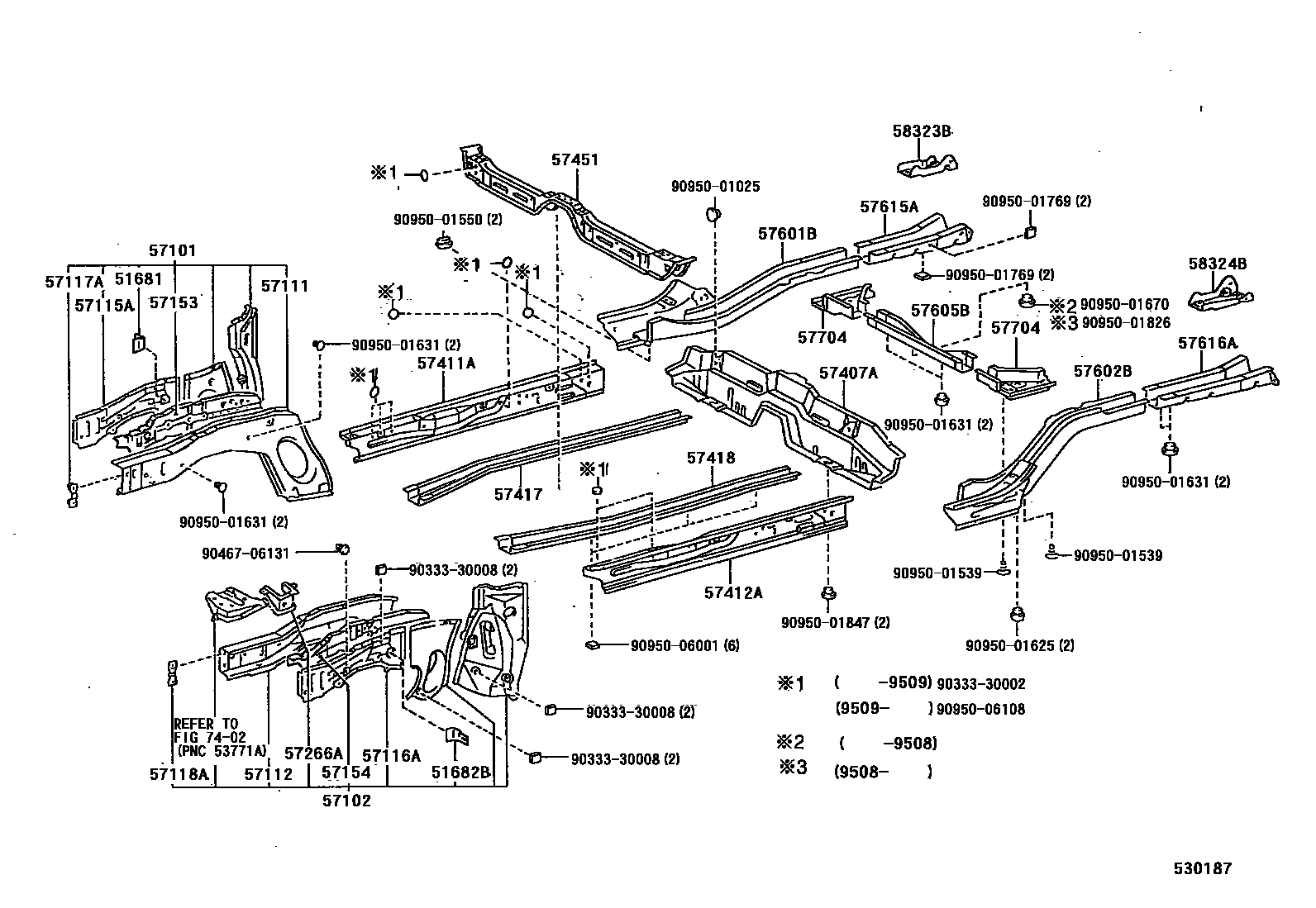

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681 | Flexible hose bracket | 51681-12050 |
| 51682B | Left side flexible hose bracket | 51682-12060 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12470 · 57101-12471 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12430 · 57102-12431 |
| 57111 | Right front longitudinal beam | 57111-12200 · 57111-12201 |
| 57112 | Left front longitudinal beam | 57112-12140 · 57112-12141 · 57112-12142 |
| 57115A | Right front longitudinal beam outer panel | 57115-12060 |
| 57116A | Left front longitudinal beam outer panel | 57116-12060 |
| 57117A | Front bumper mounting reinforcement | 57107-12080 · 57125-12070 |
| 57118A | Install reinforcement on the left side of the front bumper | 57108-12100 · 57125-12070 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-12100 |
| 57152 | No. 1 left front longitudinal beam reinforcement | 57152-12070 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-12050 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-12030 |
| 57266A | Engine left mounting bracket | 57208-12100 · 57208-12120 · 57208-12121 |
| 57407A | Center floor beam sub-assembly | 57407-12040 |
| 57411A | Floor right inner longitudinal beam | 57401-12460 |
| 57412A | Floor left inner longitudinal beam | 57402-12460 |
| 57417 | Front floor lower right reinforcement | 57417-12100 |
| 57418 | Front floor lower left reinforcement | 57418-12060 |
| 57451 | front floor cross member | 57451-12130 · 57451-12131 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-12923 · 57601-12924 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-12926 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12130 · 57605-12150 |
| 57615A | Rear floor right rear longitudinal member | 57615-12110 · 57615-13030 |
| 57616A | Rear floor left rear longitudinal member | 57616-12120 · 57616-13030 |
| 57704 | Rear suspension spring bracket sub-assembly | 57695-12030 · 57696-12030 · 57703-12060 · 57704-12080 |
| 58323B | Rear bumper arm right bracket reinforcement | 57803-12060 |
| 58324B | Rear bumper arm left bracket reinforcement | 58324-12070 |
