Toyota COROLLA Steering Column & Shaft — Figure 4501

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 4 images and 13 PNC and OE references.

Toyota COROLLA Steering Column & Shaft EPC diagram — 450264

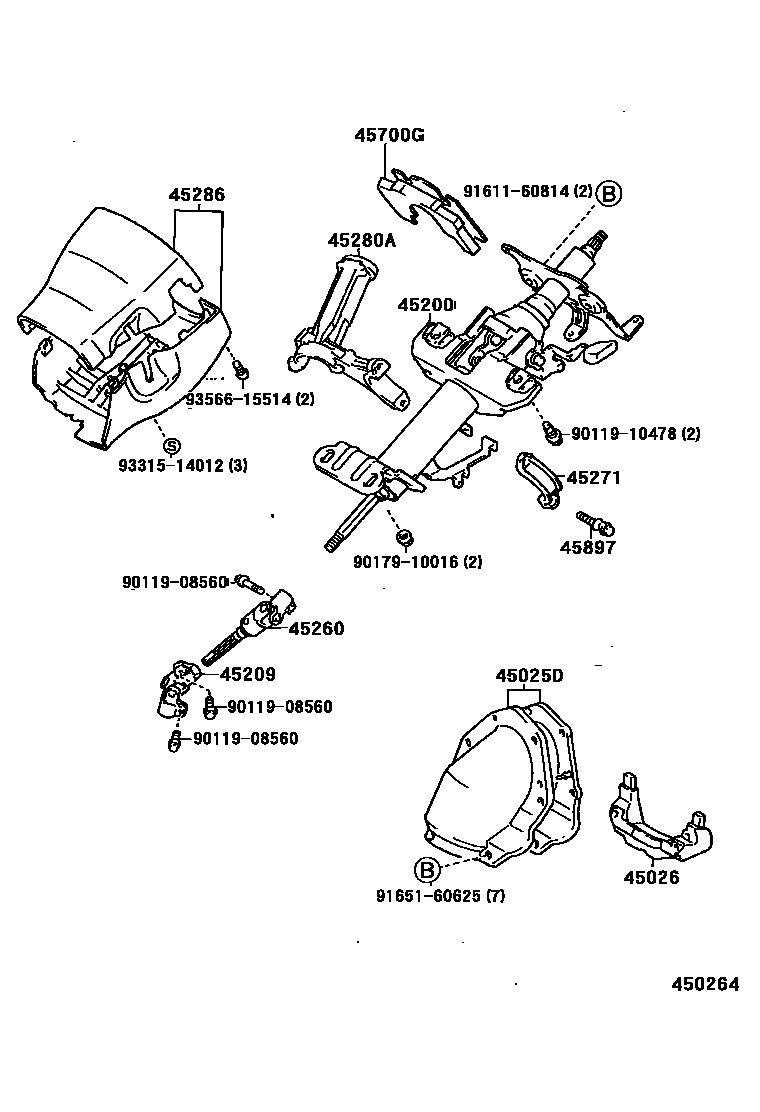

Steering Column & Shaft — 450264 (199206 – 999999)
Toyota COROLLA Steering Column & Shaft EPC diagram — 450265

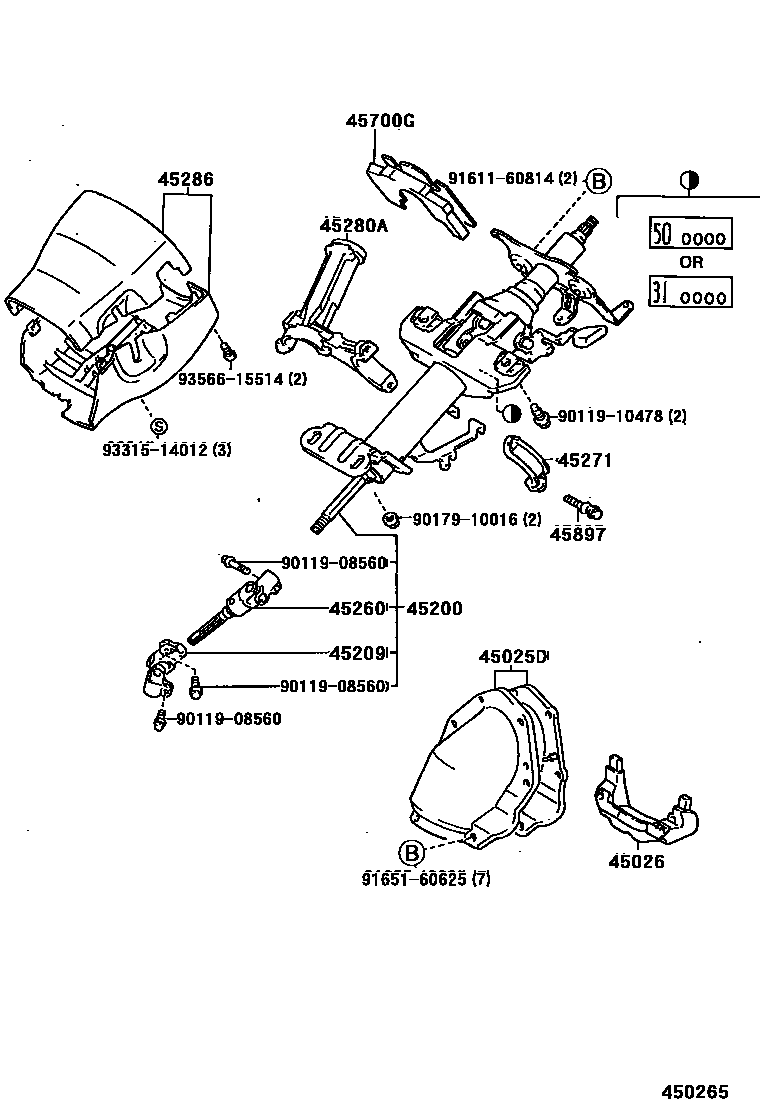

Steering Column & Shaft — 450265 (199301 – 999999)
Toyota COROLLA Steering Column & Shaft EPC diagram — 450266

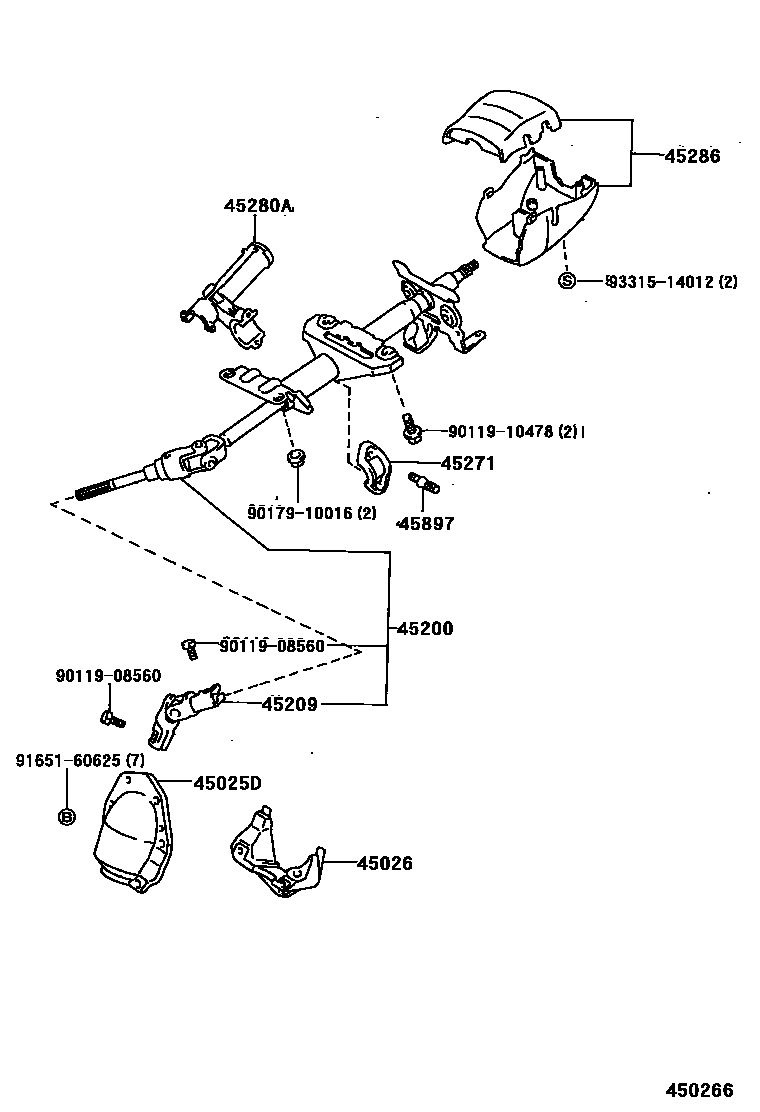

Steering Column & Shaft — 450266 (199209 – 999999)
Toyota COROLLA Steering Column & Shaft EPC diagram — 450267

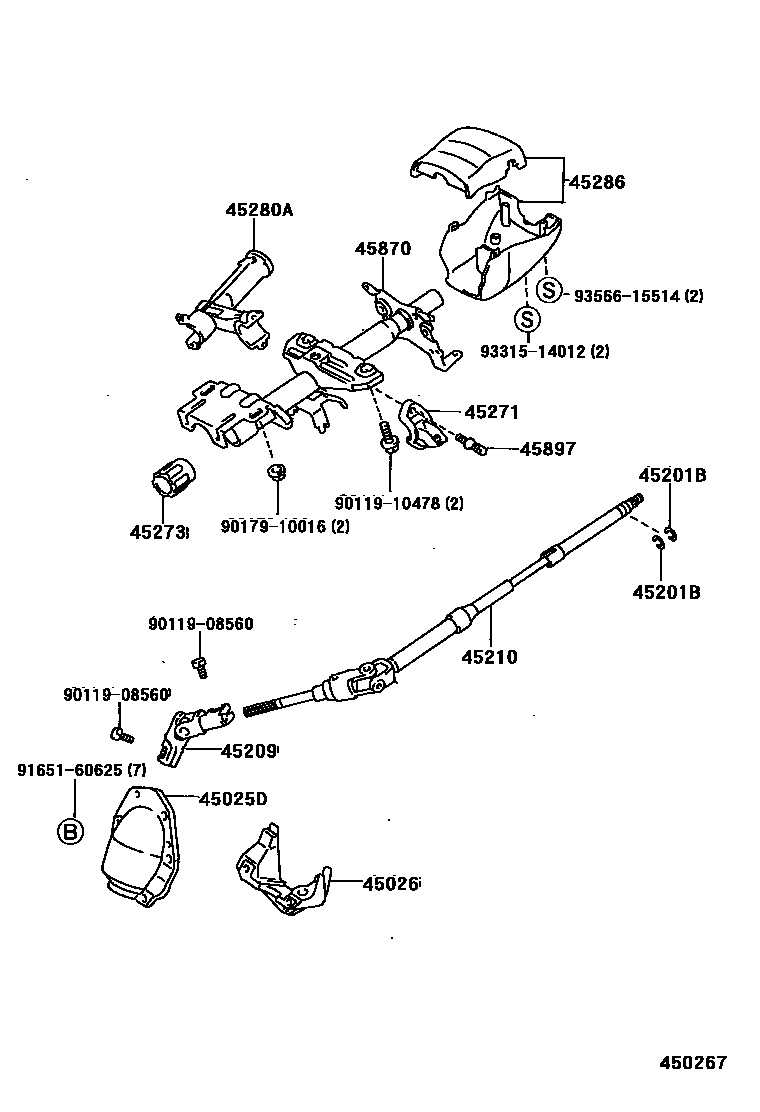

Steering Column & Shaft — 450267 (199206 – 999999)

PNC and OE references

PNCPart nameOE numbers
45025DNo. 1 steering column hole cover sub-assembly45025-12190 · 45025-12200 · 45025-12201
45026No. 2 steering column hole cover sub-assembly45026-12030 · 45026-12040
45200Steering column assembly45200-02031 · 45200-02050 · 45200-12180
45201BShaft snap ring (for steering spindle)90520-17042
45209Steering slip fork sub-assembly45209-12060 · 45209-12080
45210Steering spindle assembly45210-12450 · 45210-12470
45260No. 2 steering intermediate shaft assembly45260-02010 · 45260-02020 · 45260-12270 · 45260-12280
45271Clamp on steering column45271-12070 · 45271-33010
45273Steering spindle bushing45273-16010 · 45273-16020 · 45273-20030
45280ASteering column upper bracket assembly45280-12260 · 45280-12280 · 45280-12300
45700GSteering damper assembly45700-12020
45870Steering column tube assembly45870-12320 · 45870-12321
45897Steering lock fixing bolt45897-12020
