Toyota COROLLA 废气再循环系统 — Figure 2501

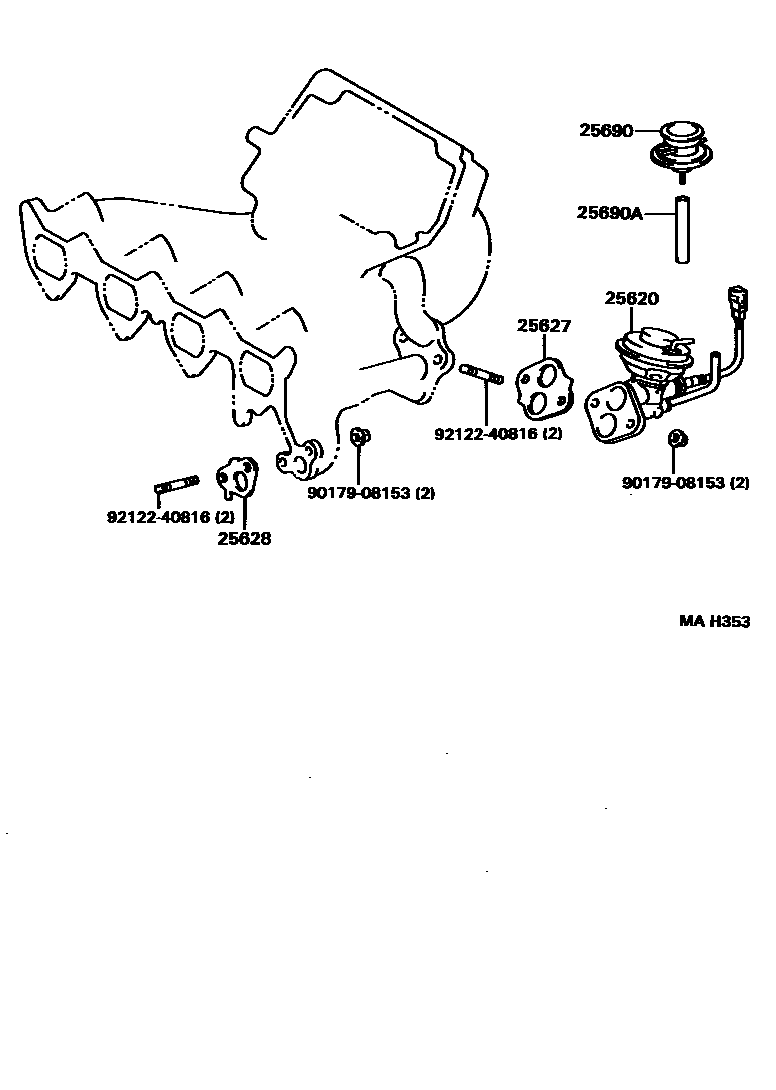

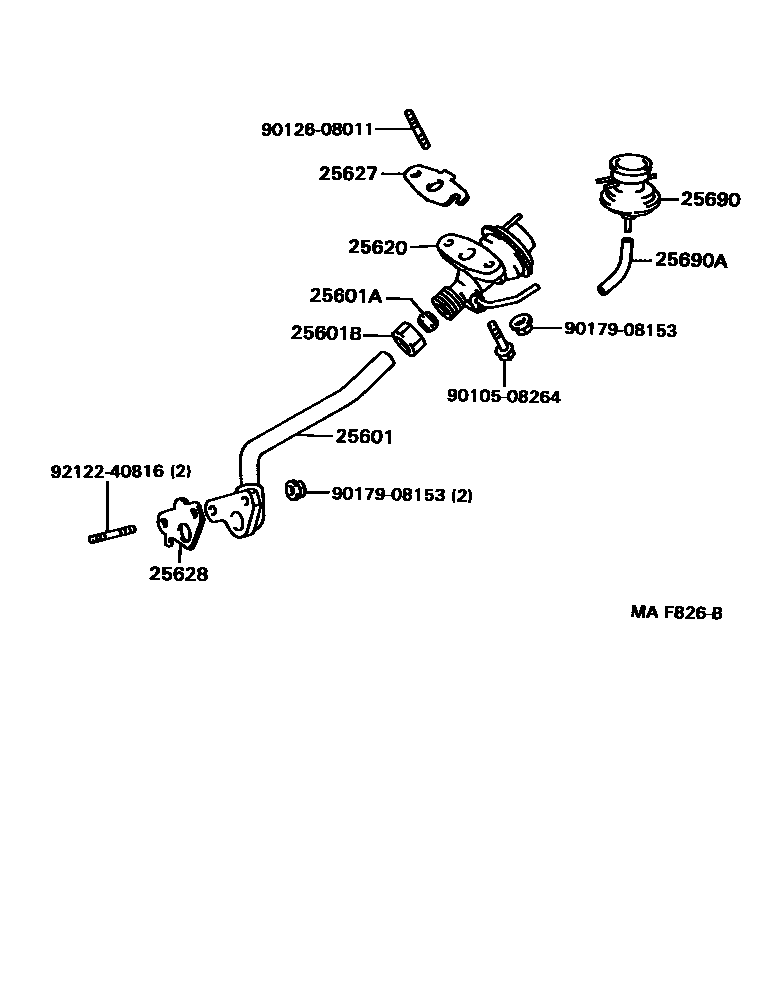

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-16050 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-16001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-22005 |
| 25620 | EGR valve assembly | 25060-16240 · 25060-16250 · 25620-16210 · 25620-16220 · 25620-16260 · 25620-16270 |
| 25627 | EGR valve gasket | 25627-16040 · 25627-16070 |
| 25628 | EGR air intake gasket | 25628-16030 |
| 25690 | EGR vacuum regulator assembly | 25870-16230 · 25870-16240 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-16070 |
