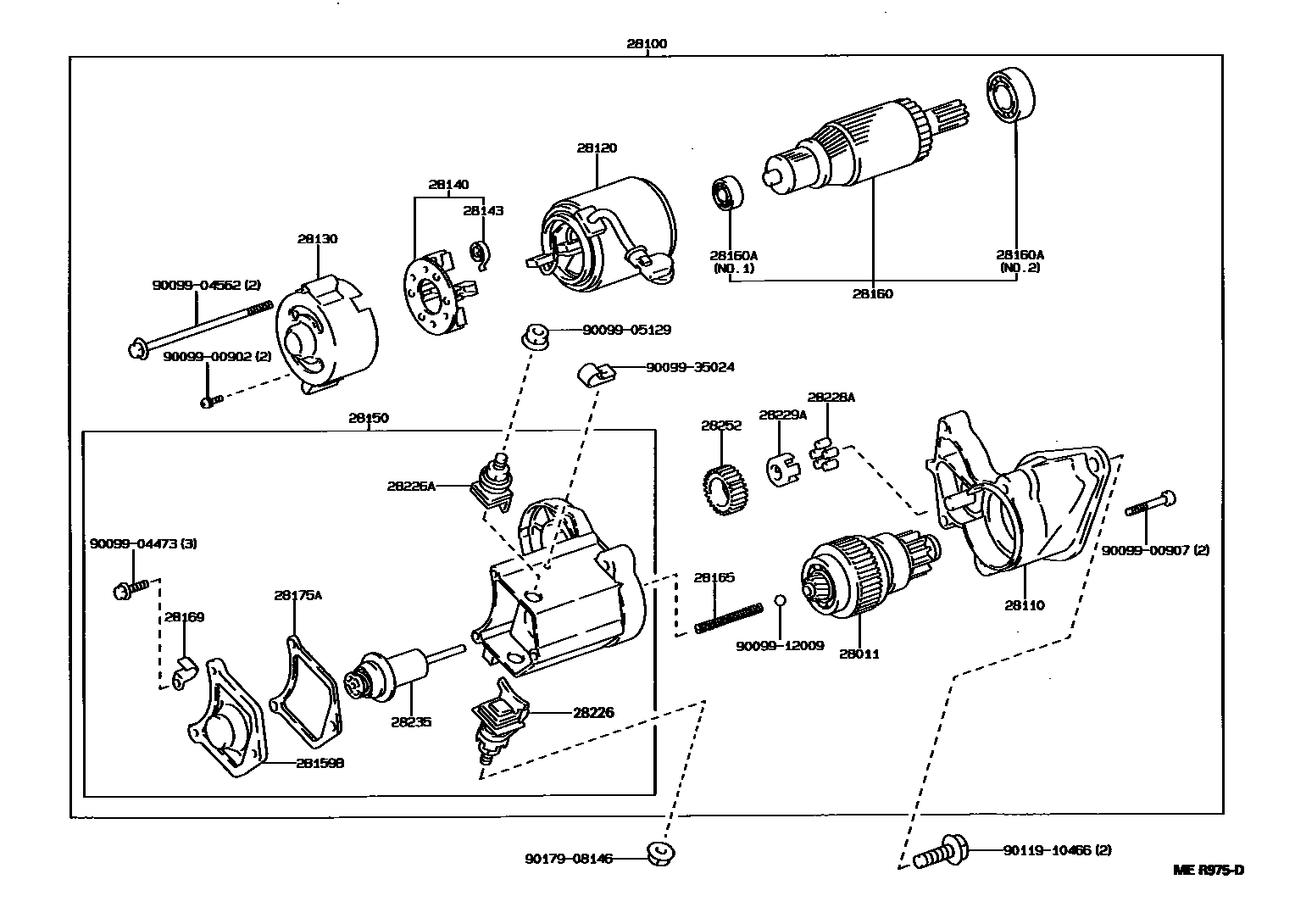

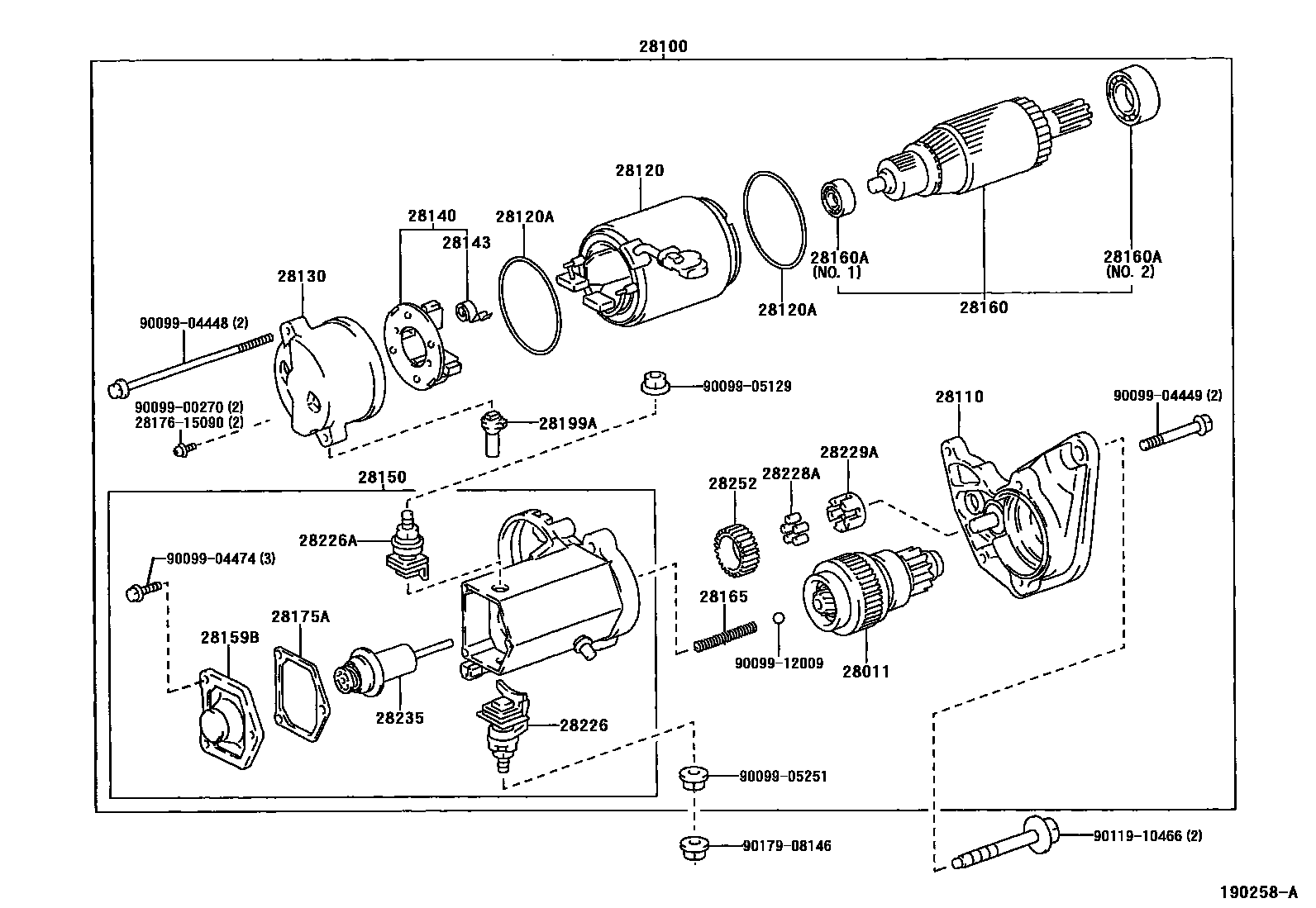

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-01020 · 28011-26042 · 28011-76070 |
| 28100 | Starter assembly | 28100-02050 · 28100-02060 · 28100-16150 · 28100-16210 · 28100-16220 · 28100-16270 |
| 28110 | Starter drive end housing assembly | 28110-02040 · 28110-16150 · 28110-16220 |
| 28120 | Starter yoke assembly | 28120-01020 · 28120-01030 · 28120-26071 · 28120-66040 · 28120-74070 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28130 | Starter commutator end frame assembly | 28130-02040 · 28130-10040 · 28130-35060 |
| 28140 | Starter brush holder assembly | 28140-01020 · 28140-26070 · 28140-76070 |
| 28143 | starter brush spring | 90099-17112 |
| 28150 | Starter electromagnetic switch assembly | 28150-01020 · 28150-01030 · 28150-01040 · 28150-16130 · 28150-16150 · 28150-16210 · 28150-16270 · 28150-16271 |
| 28159B | Electromagnetic switch cover | 28159-07010 · 28159-10040 · 28159-55050 |
| 28160 | Starter armature assembly | 28160-01020 · 28160-26071 · 28160-74070 |
| 28160A | starter armature bearing | 28253-45020 · 90099-10113 · 90099-10196 · 90099-10197 |
| 28165 | Starter solenoid switch return spring | 28165-01020 · 28165-26040 · 28165-76070 |
| 28169 | Starter motor lead clamp | 28169-10040 · 28169-55050 |
| 28175A | Electromagnetic switch cover gasket | 28175-10040 · 28175-55050 |
| 28199A | Starter dust protection device | 28199-01030 · 28199-74110 |
| 28226 | battery terminal starter assembly | 28226-16130 · 28226-55050 · 28226-70040 · 28226-72080 |
| 28226A | Motor terminal starter assembly | 28226-72010 · 28226-74070 |
| 28228A | starter clutch roller | 28228-01010 · 28228-26040 |
| 28229A | Starter idler gear fixing | 28229-01020 · 28229-26040 · 28229-74070 |
| 28235 | Electromagnetic switch core | 28235-07010 · 28235-35080 · 28235-55050 |
| 28252 | starter idler gear | 28254-03010 · 28254-45020 · 28254-74070 |
