Toyota COROLLA vacuum tube — Figure 1708

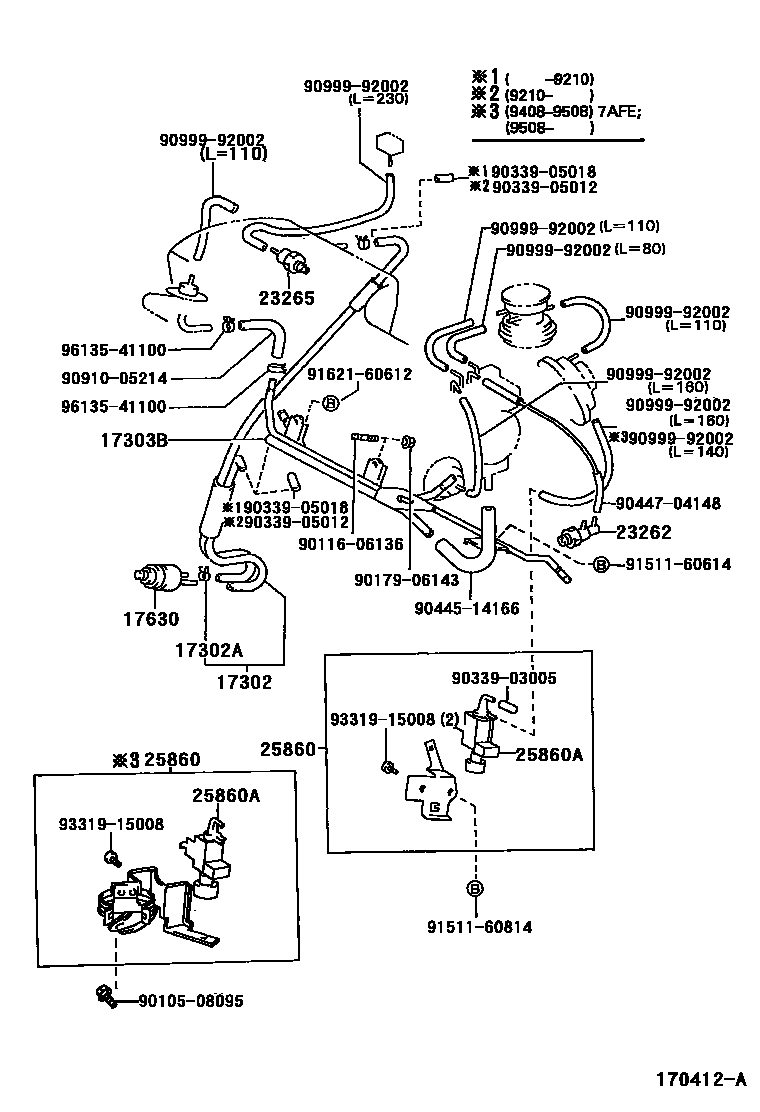

Toyota COROLLA EPC diagram 1708, vacuum tube, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-15010 |
| 17302A | Hose clip | 96132-51000 · 96132-51100 |
| 17303B | No. 1 air pipe sub-assembly | 17303-15060 · 17303-16200 |
| 17630 | Air control valve assembly | 17630-15080 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-16160 · 25860-16180 |
| 25860A | No. 1 vacuum switch valve | 90910-12141 |
