Toyota COROLLA Exhaust Pipe — Figure 1702

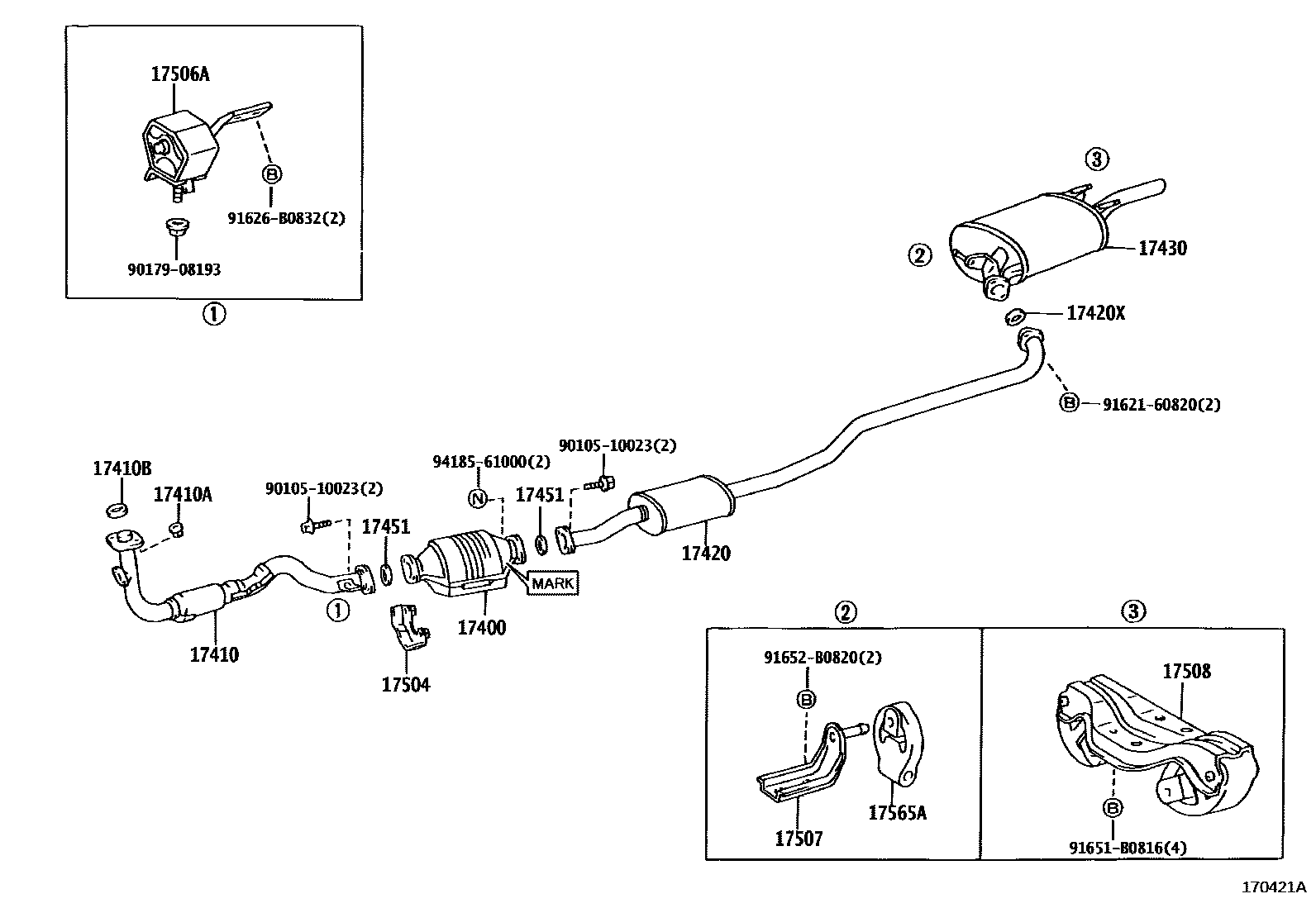

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-01060 · 18450-01090 · 18450-01110 · 18450-16520 · 18450-16580 · 18450-16670 · 18450-16680 |
| 17410 | Front exhaust pipe assembly | 17410-02090 · 17410-02100 · 17410-02110 · 17410-02120 · 17410-02240 · 17410-02250 · 17410-02280 · 17410-02290 · 17410-16880 · 17410-16890 · 17410-1A010 · 17410-1A020 · 17410-1A160 · 17410-1A170 · 17410-1A310 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 |
| 17420 | Central exhaust pipe assembly | 17420-16580 · 17420-16630 |
| 17420X | Center exhaust pipe liner | 90917-06074 |
| 17430 | Exhaust tailpipe assembly | 17430-1A260 · 17430-1A261 |
| 17451 | Exhaust pipe gasket | 90917-06041 · 90917-06044 · 90917-06045 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-16011 · 17582-41030 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15070 · 17506-16120 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15040 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15050 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-16230 |
