Toyota COROLLA Manifold — Figure 1701

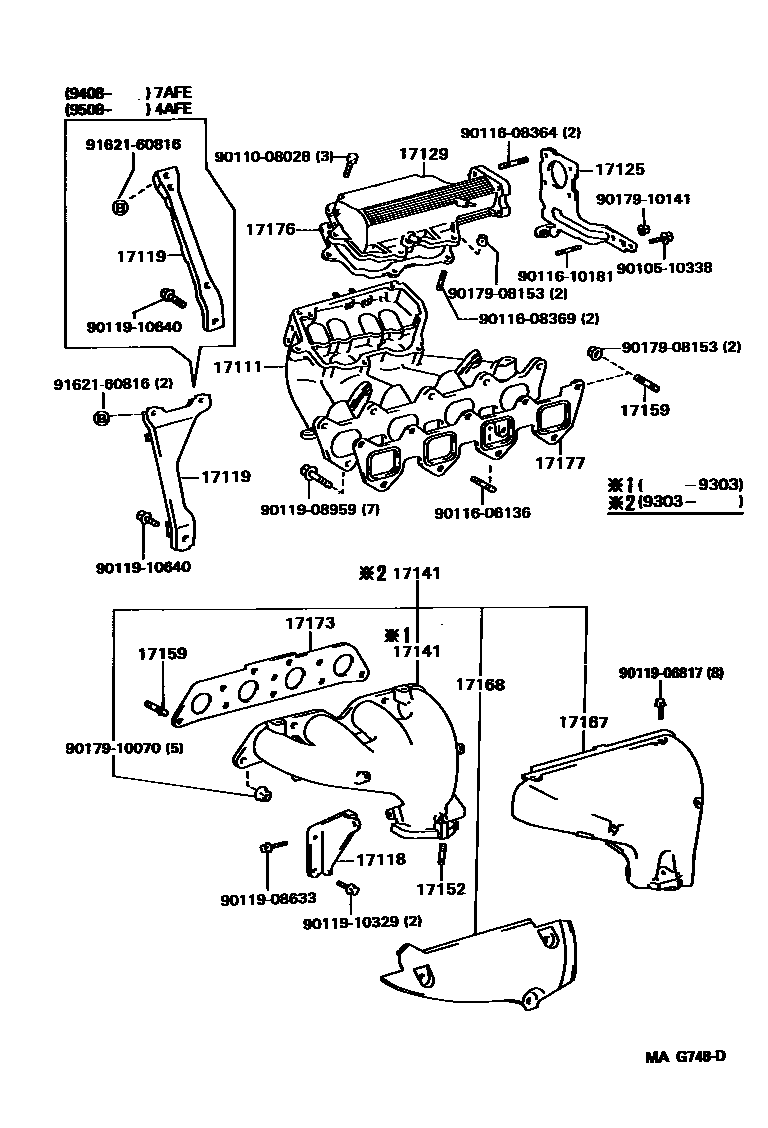

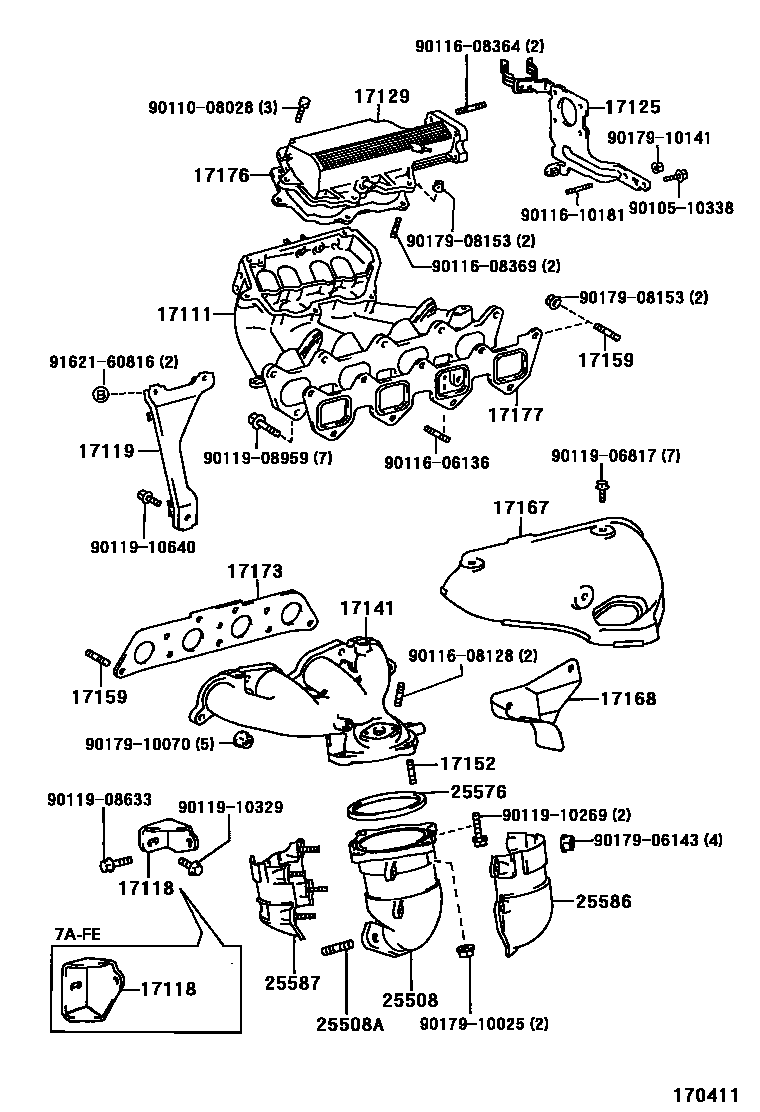

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-16190 · 17101-16200 · 17101-16240 |
| 17118 | Manifold stays | 17118-16071 · 17118-16110 · 17118-16120 · 17118-16130 |
| 17119 | No. 2 manifold stay | 17012-15010 · 17012-16020 · 17012-16030 · 17012-16040 · 17139-15050 · 17139-16130 |
| 17125 | No. 1 pressure tank stay | 17125-15020 · 17125-16080 |
| 17129 | Intake pressure tank | 17109-15010 · 17109-16020 · 17109-16030 · 17109-16050 |
| 17141 | exhaust manifold | 17141-16250 · 17141-16290 · 17141-19015 · 17141-19016 |
| 17152 | Studs (for manifold to exhaust) | 90116-10146 |
| 17159 | Studs (for manifold to cylinder head) | 92112-60825 · 92112-61028 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-15060 · 17167-15080 · 17167-16140 · 17167-16141 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-16070 · 17168-16071 · 17168-16110 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-15040 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-15010 · 17176-16020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15030 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25051-16010 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-10146 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-15020 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-16010 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-16010 |
