Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 1 images and 6 PNC and OE references.

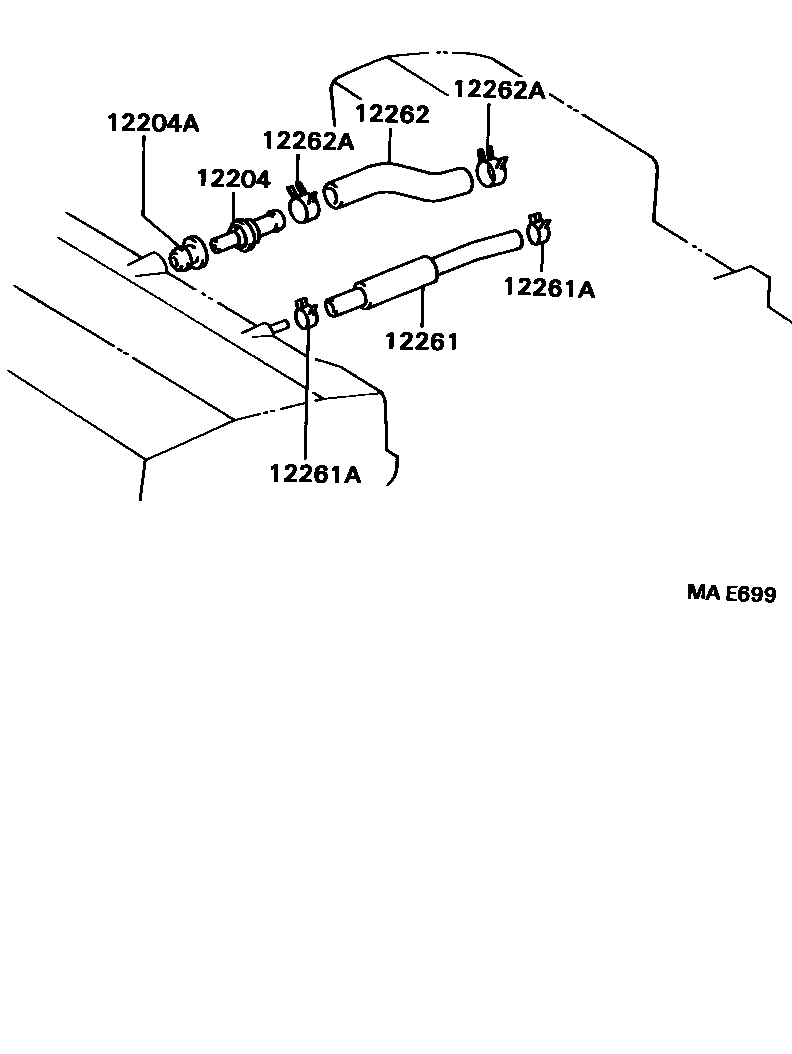

Toyota COROLLA Ventilation Hose EPC diagram — MAE699
Ventilation Hose — MAE699 (199206 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15050
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose90445-10064
12261AClip or clip (for vent hose)90467-10099
12262Ventilation hose No. 290445-15063 · 90445-15067
12262AClamp (for vent hose No. 2)90467-14017 · 90467-15022 · 90467-15027
