Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

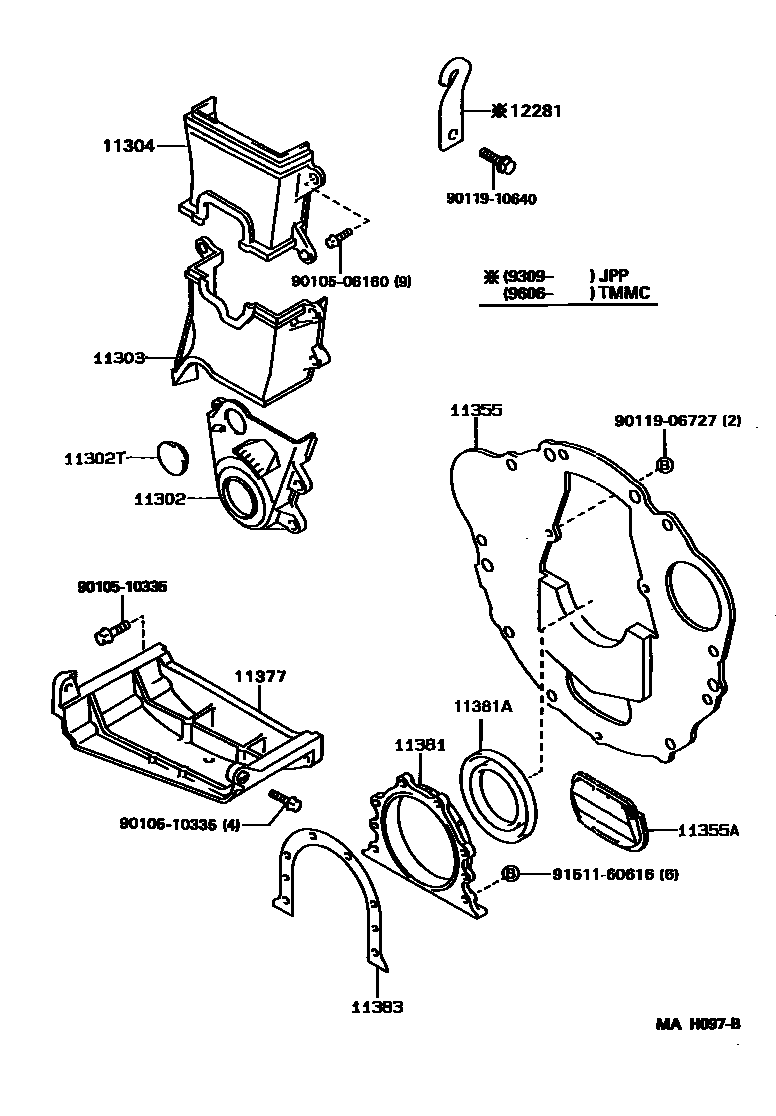

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-15050 · 11302-16040 |
| 11302T | hole plug | 90950-01783 |
| 11303 | Crankshaft gear or crankshaft pulley cover sub-assembly | 11303-15050 · 11303-16050 · 11303-16060 · 11303-16070 |
| 11304 | No. 2 timing chain or timing belt cover | 11304-15030 · 11304-16060 |
| 11355 | rear end plate | 11355-15070 · 11355-15080 |
| 11355A | Hole plug (for rear end plate) | 90950-01264 |
| 11377 | Rear end plate reinforcement | 11377-15010 · 11377-15011 · 11377-15012 · 11377-16010 · 11377-16011 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-15010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-70007 |
| 11383 | Engine rear oil seal seat gasket | 11383-16010 |
| 12281 | Engine No. 1 hanger | 12281-15050 |
