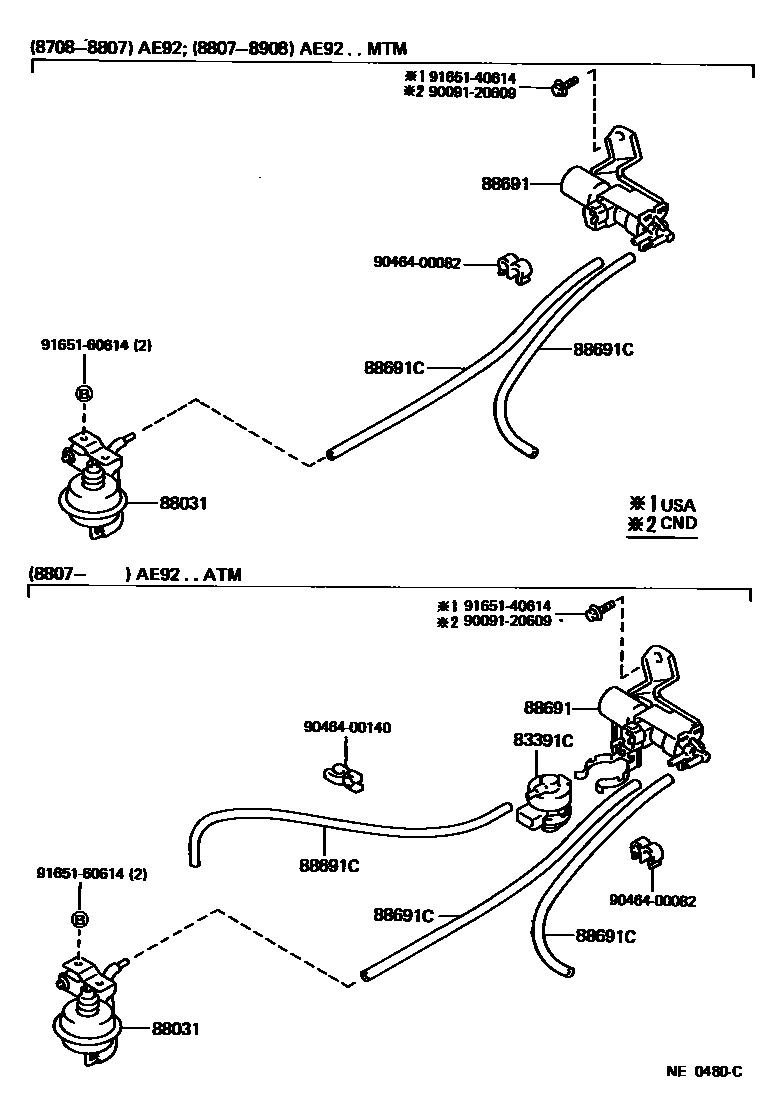

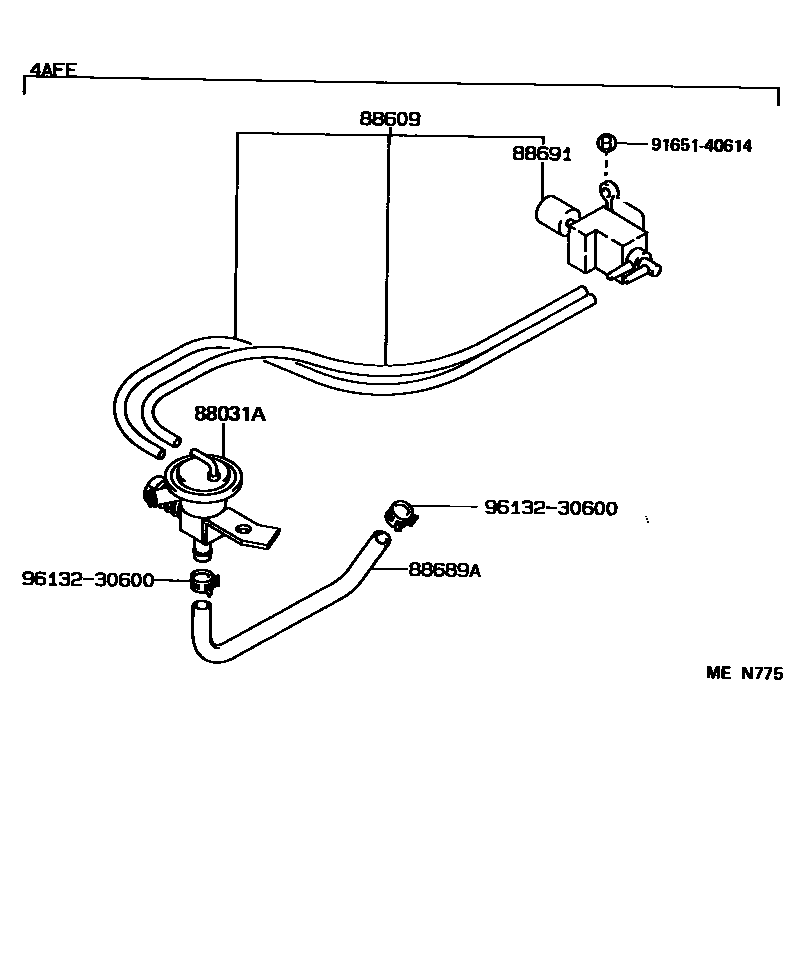

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83391C | Cooler vacuum switch | 83391-20060 |
| 88031 | Idle speed lift actuator assembly | 88031-12140 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-12050 · 88606-14020 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12540 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12180 · 88689-12310 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12430 · 88690-12740 · 88690-12750 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92003 · 95411-10030 · 95411-19930 |
