Toyota COROLLA 后视镜 — Figure 8701

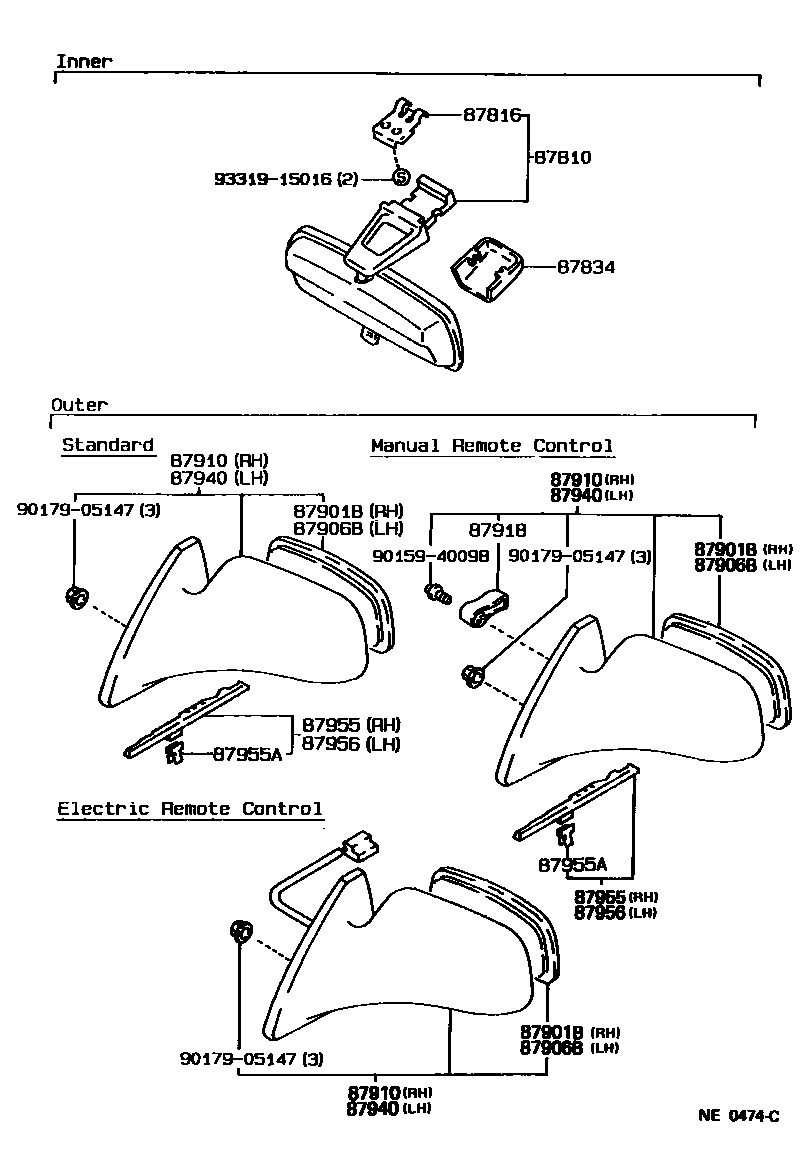

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-1A240 · 87931-1A250 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-1A320 · 87961-1A330 |
| 87910 | Right exterior rearview mirror assembly | 87910-1A230 · 87910-1A240 · 87910-1A250 |
| 87918 | Exterior rearview mirror control handle | 87918-16010 |
| 87940 | Left exterior rearview mirror assembly | 87940-1A310 · 87940-1A320 · 87940-1A330 |
| 87955 | Right exterior mirror base lower pad | 87955-12040 |
| 87955A | Door glass seal strip clip | 68211-12160 |
| 87956 | Left side exterior mirror base lower pad | 87956-12040 |
