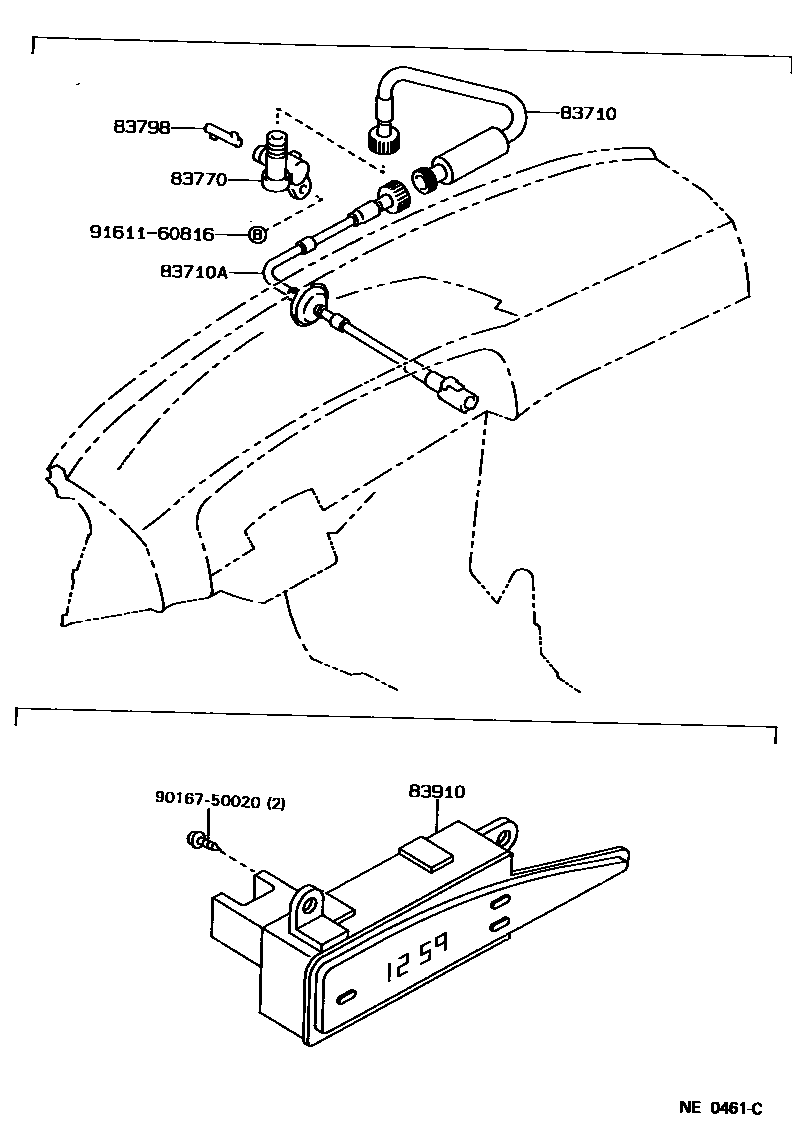

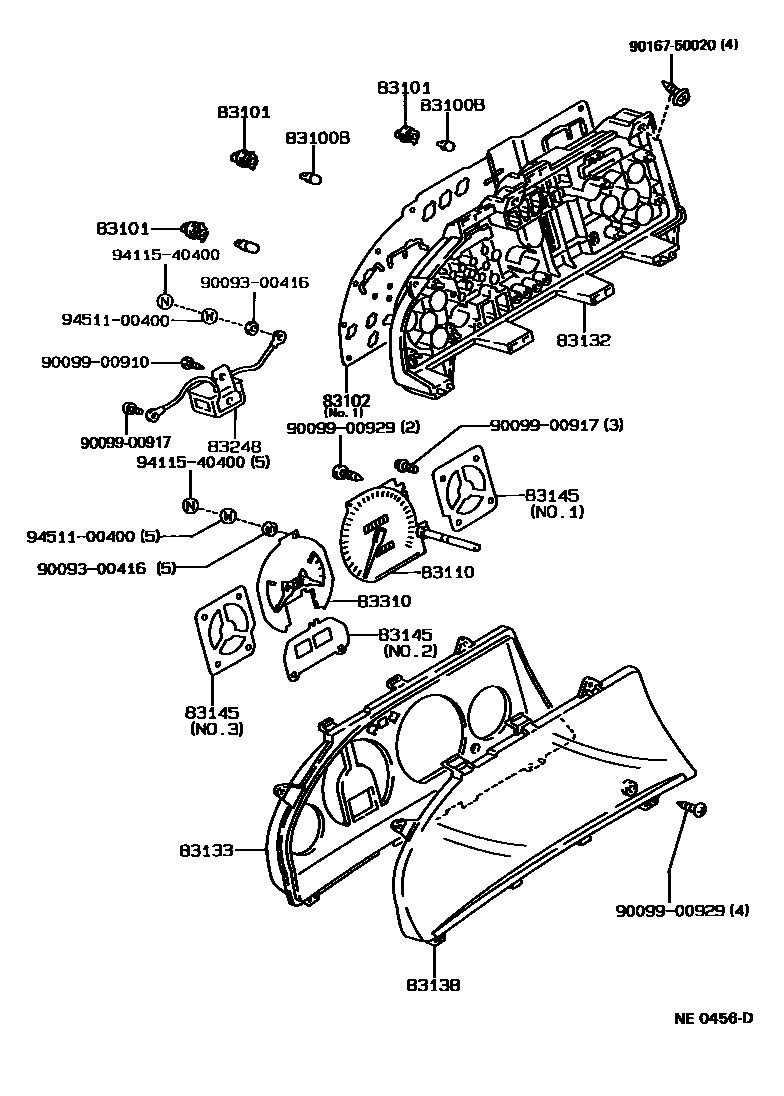

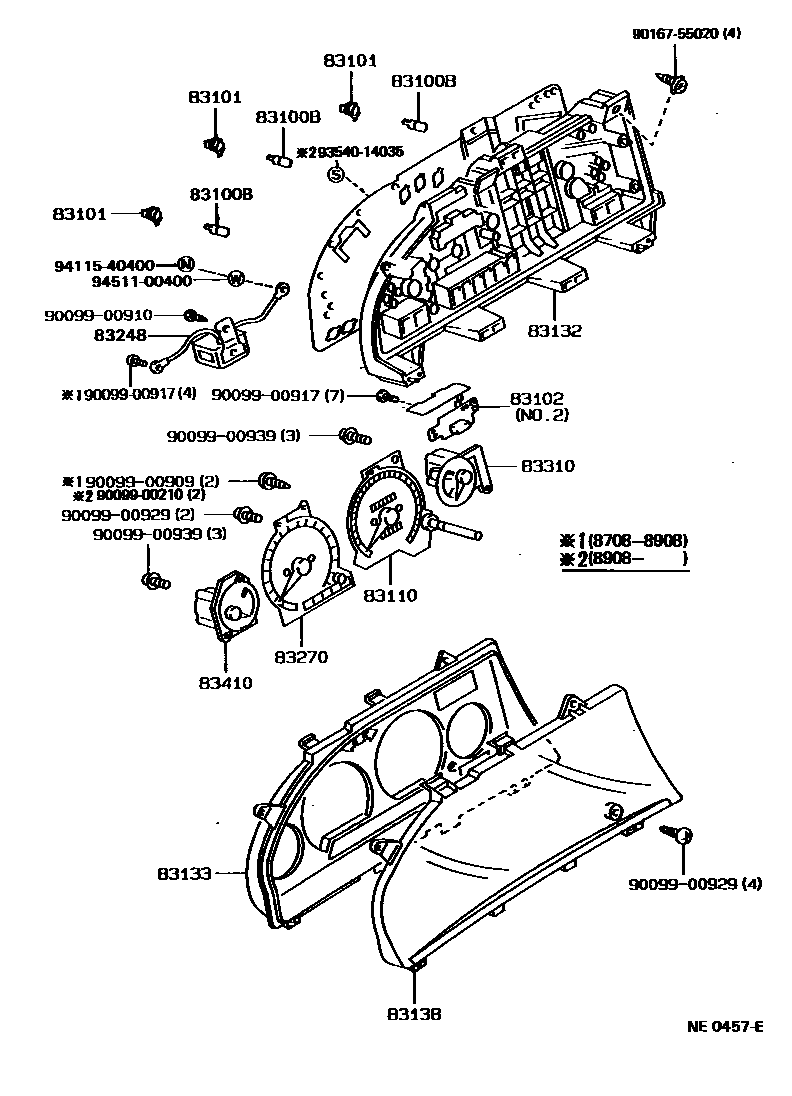

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83101-20080 · 83109-12030 · 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-13090 · 83247-1E320 · 83247-1E600 · 83247-1E820 · 83247-1E860 · 83247-1E880 |
| 83110 | Speedometer assembly | 83110-1E010 · 83110-1E011 · 83110-1E020 · 83110-1E021 · 83110-1E030 · 83110-1E031 · 83110-1E040 · 83110-1E041 |
| 83132 | Instrument cluster housing | 83132-1A230 · 83132-1A270 |
| 83133 | Combined instrument panel No. 1 | 83133-1A750 · 83133-1E010 · 83133-1E030 · 83133-1E390 · 83133-1E391 · 83133-1E450 · 83133-1E790 |
| 83138 | speedometer glass | 83138-1A030 |
| 83145 | Instrument No. 1 lampshade | 83145-13090 · 83145-13130 · 83145-1E570 · 83145-1E690 · 83145-1E750 · 83145-1E770 · 83145-1E790 |
| 83248 | speed warning bell | 86640-12120 |
| 83270 | Engine tachometer assembly | 83242-1A870 · 83242-1A871 · 83242-1E050 · 83242-1E051 |
| 83310 | Fuel gauge assembly | 83243-1A250 · 83243-1A251 · 83243-1A310 · 83243-1A311 · 83243-1A490 · 83243-1H490 |
| 83410 | Water temperature meter assembly | 83244-1A670 · 83244-1A671 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-12460 · 83710-12461 · 83710-12581 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-12450 · 83710-12451 · 83710-12620 · 83710-12640 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-17010 |
| 83798 | Speedometer transmission flexible shaft adapter key | 83798-17010 |
| 83910 | clock assembly | 83910-12410 |
