Toyota COROLLA 后牌照灯 — Figure 8113

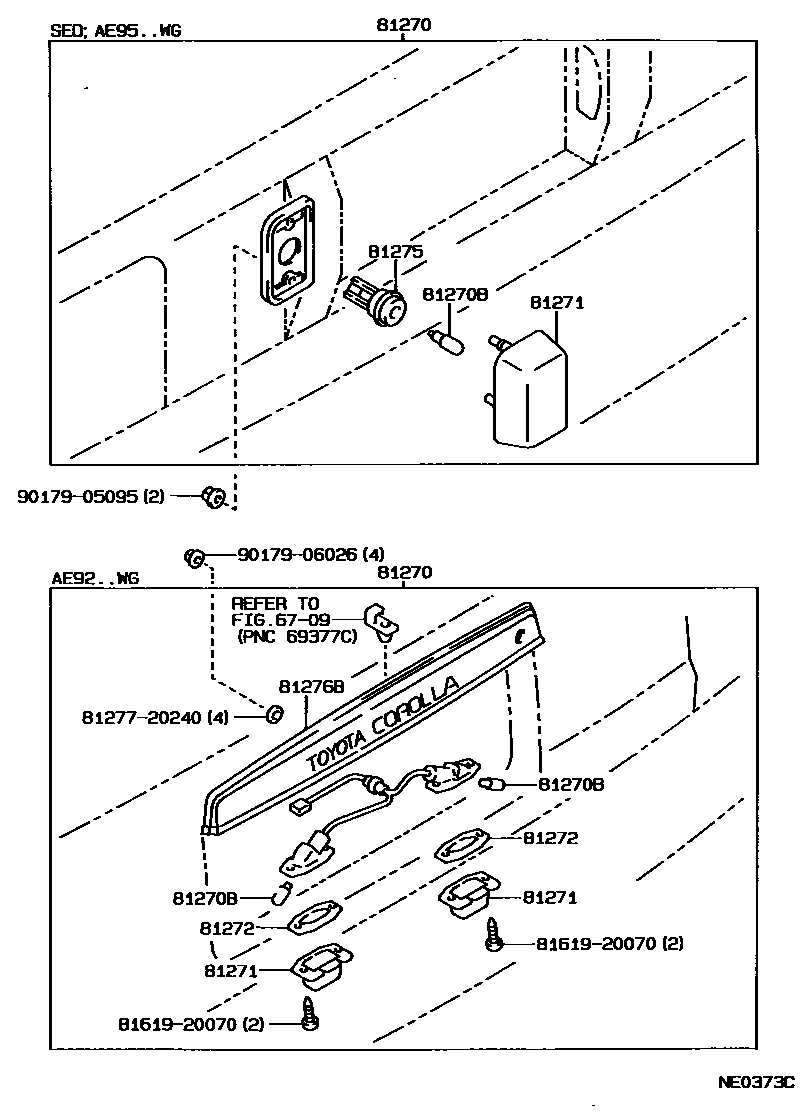

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12310 · 81270-12390 · 81270-13200 |
| 81270B | Bulb (for license plate light) | 90981-12010 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-12310 · 81271-13190 |
| 81272 | License plate lamp shade gasket | 81272-24010 |
| 81275 | License plate lamp holder and wiring harness | 81275-12390 · 99159-10232 |
| 81276B | license plate light cover | 81276-13210 |
