Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

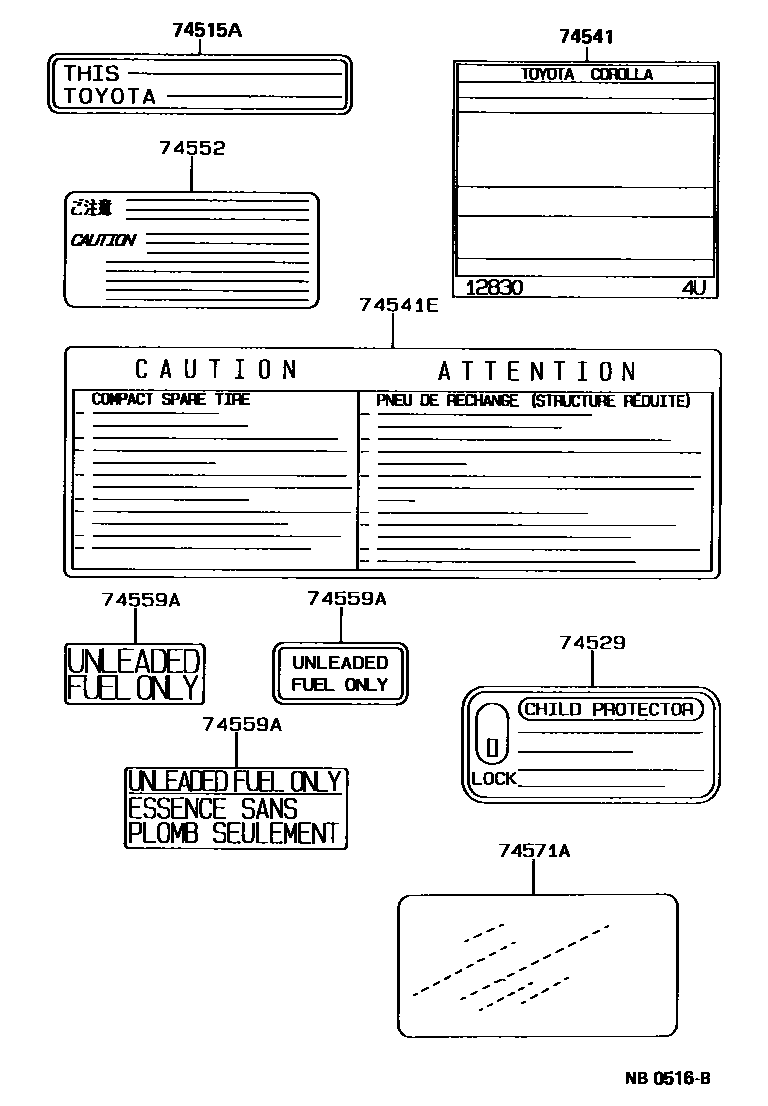

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-12820 · 42661-12821 · 42661-12830 · 42661-12831 · 42661-12850 · 42661-12851 · 42661-12870 · 42661-12871 · 42661-12880 · 42661-12881 · 42661-1A030 · 42661-1A031 |
| 74541E | Small spare tire warning plate | 42668-12010 · 42668-14010 |
| 74552 | Safety warning nameplate | 74552-12290 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-14060 |
| 74571A | Label cover protective film | 74571-32010 |
