Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

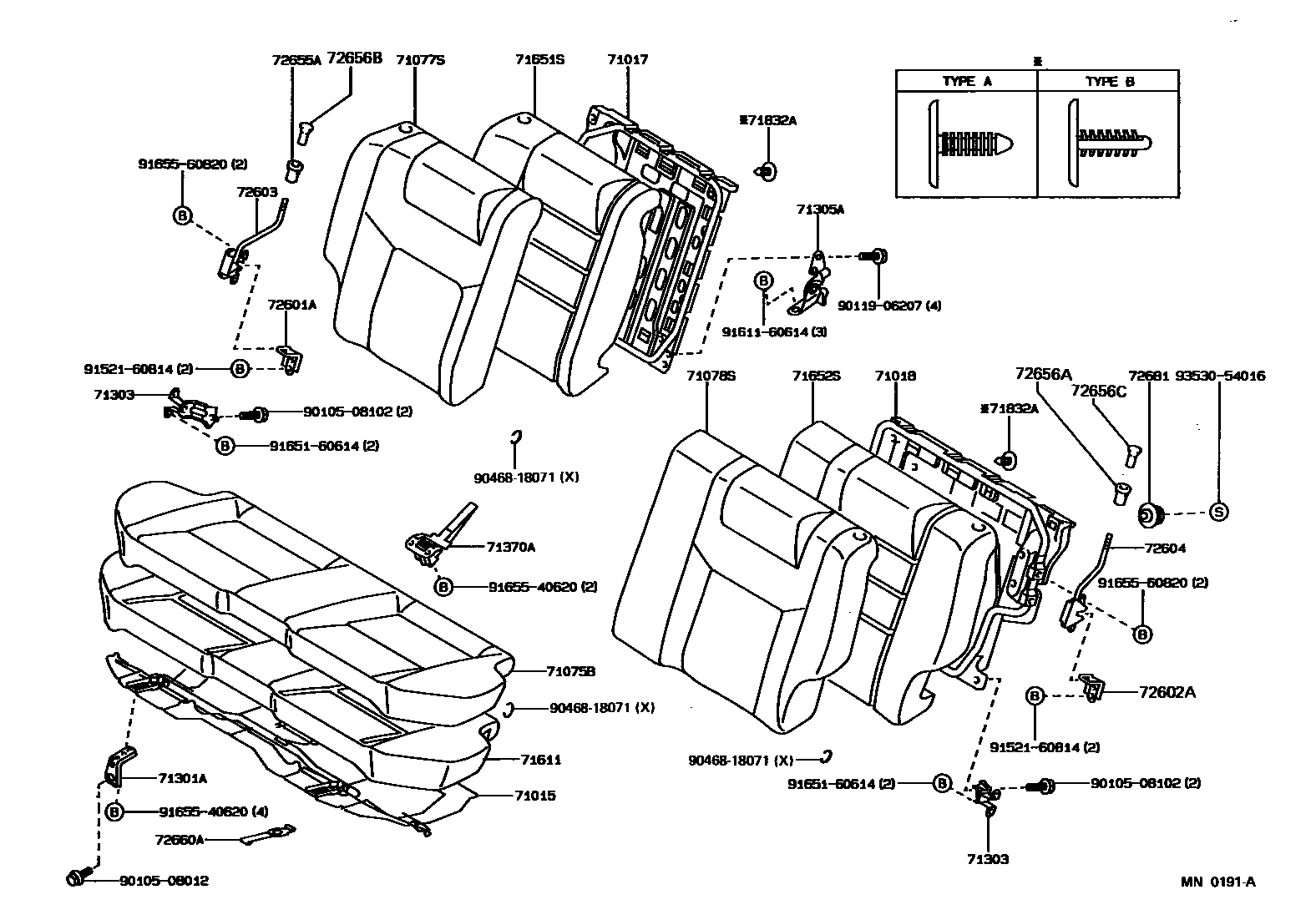

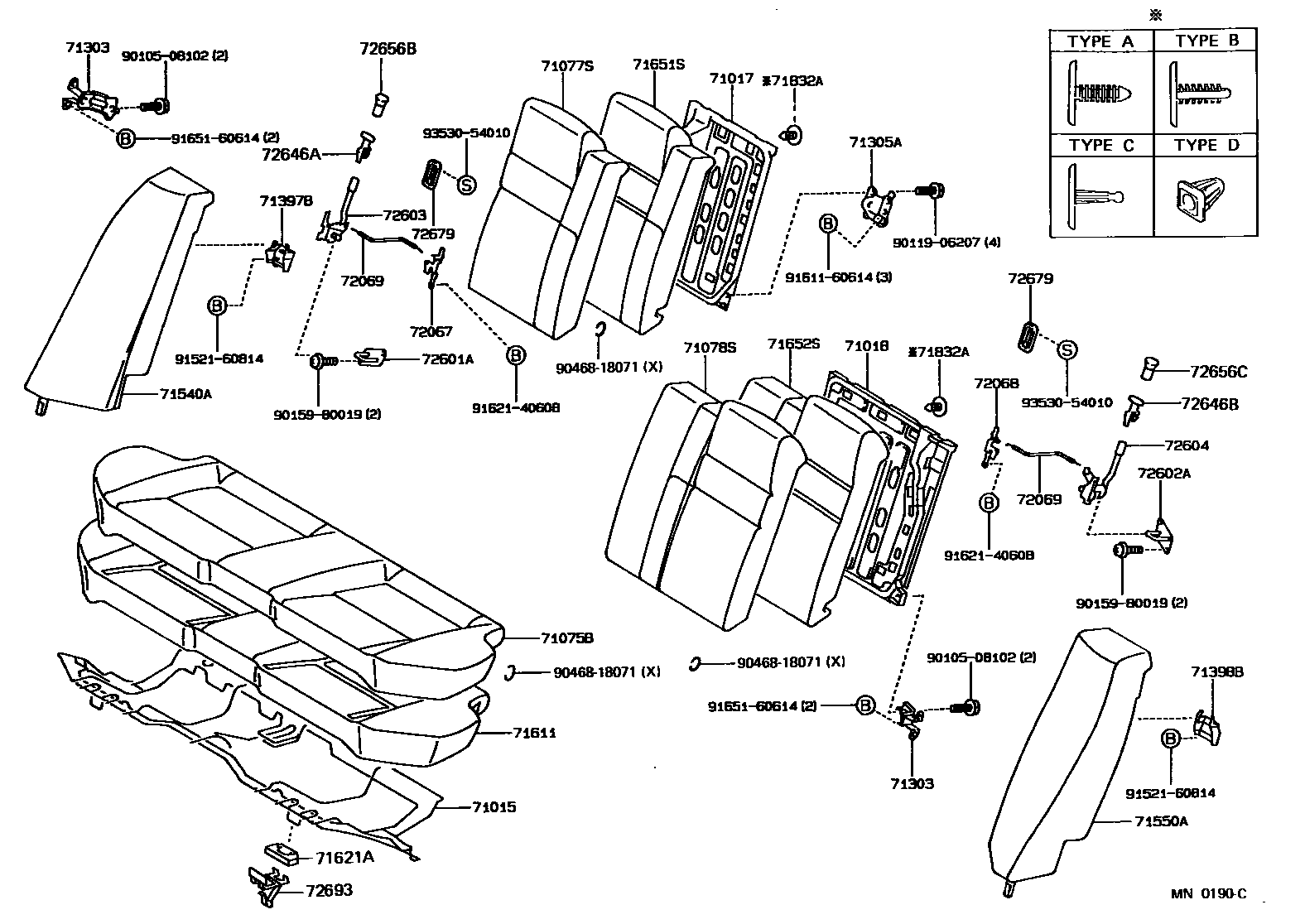

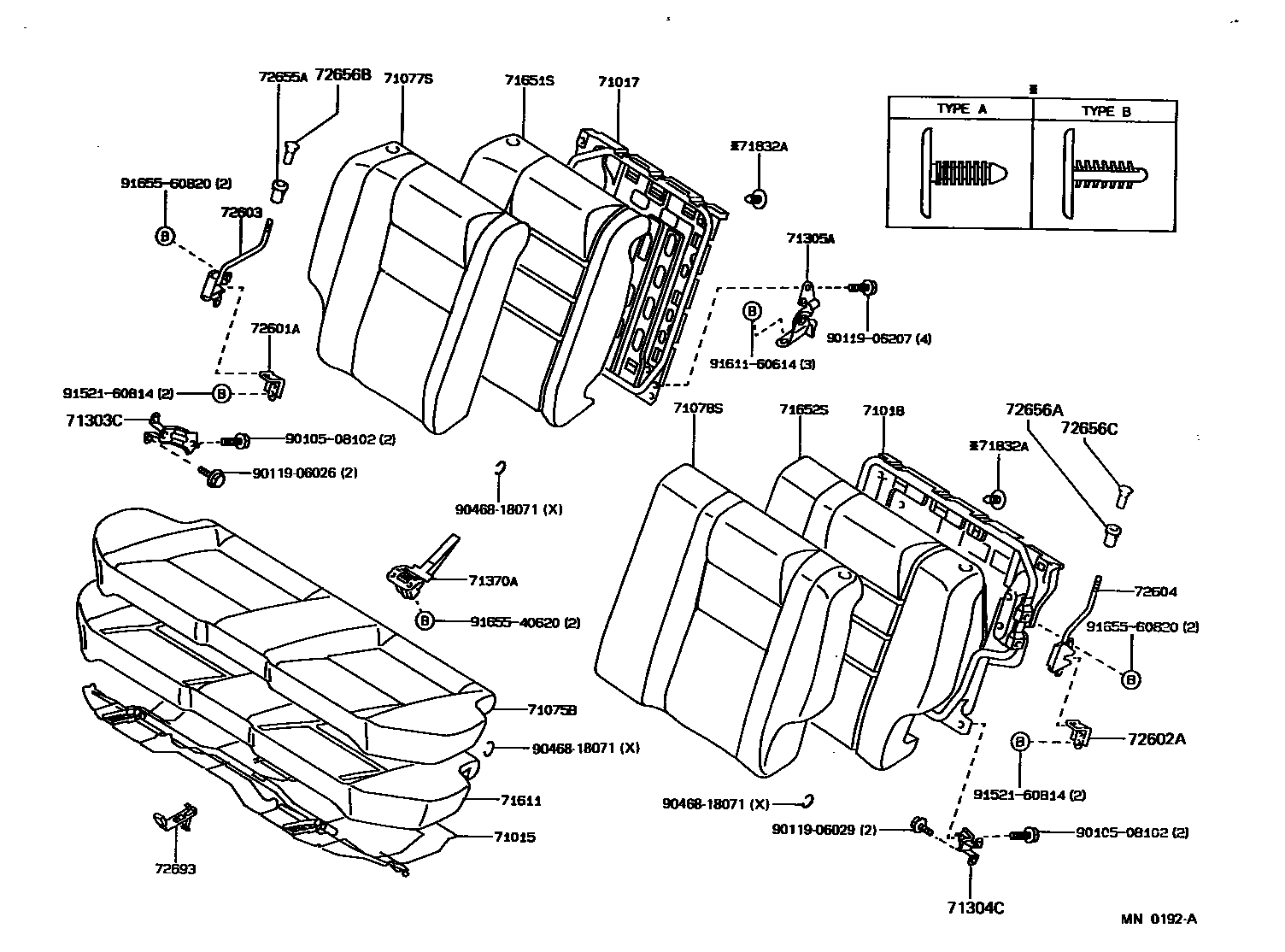

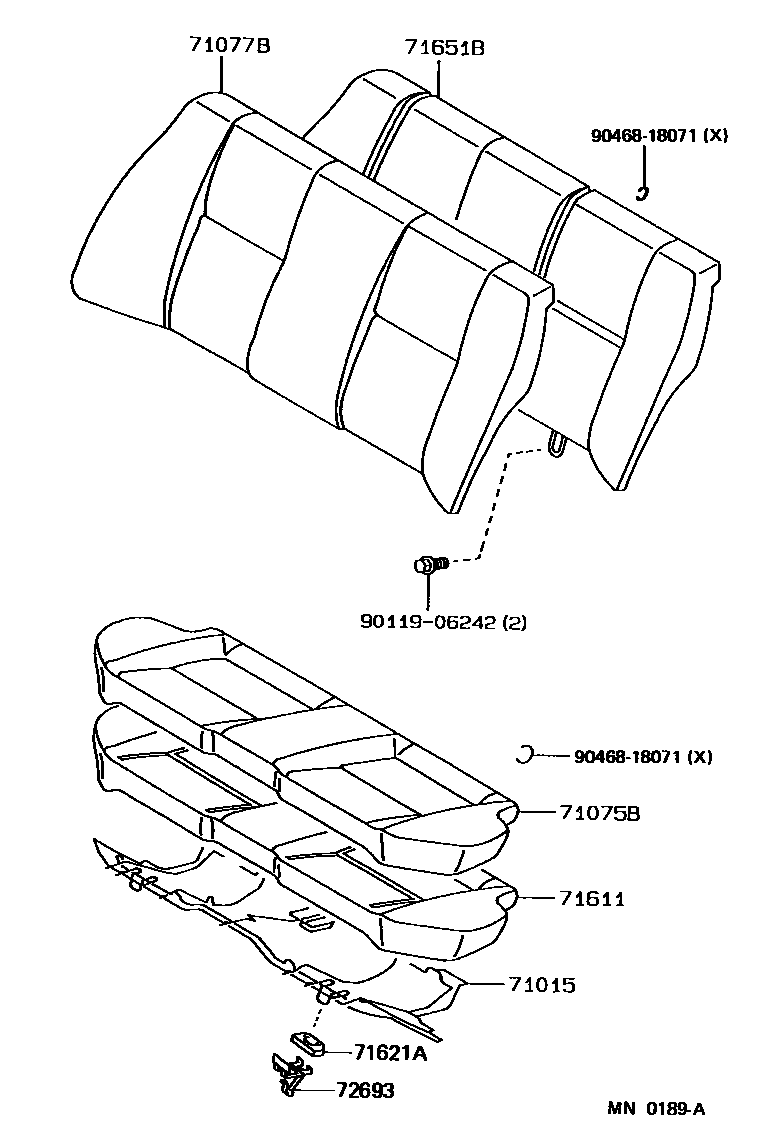

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12260 · 71015-12270 · 71015-12290 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12260 · 71017-12330 · 71017-13110 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12050 · 71018-12110 · 71018-13010 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12060 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12090 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-12030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12060 · 71305-12090 |
| 71397B | Rear right seat backrest fixer | 71397-12020 |
| 71398B | Rear left seat back retainer | 71398-12020 |
| 71611 | Rear seat cushion cushion | 71611-12530 · 71611-12540 · 71611-12550 · 71611-12620 · 71611-12630 |
| 71621A | Rear seat A seat cushion muffler | 71621-12270 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12040 · 71507-12050 · 71507-12070 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12580 · 71651-12710 · 71651-13140 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12410 · 71652-12500 · 71652-13060 |
| 71832A | Rear seat backrest felt pad or backrest pad clip | 90467-10023 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20010 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-20010 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-12010 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12080 · 72601-12090 · 72601-16050 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12080 · 72601-16050 · 72602-12040 |
| 72603 | Rear right seat back lock sub-assembly | 72603-12010 · 72630-12190 · 72630-13070 |
| 72604 | Rear left seat back lock sub-assembly | 72604-12030 · 72640-12180 · 72640-13070 |
| 72693 | Rear seat cushion hook | 72693-12020 · 72693-12040 · 72693-12050 |
