Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 19 PNC and OE references.

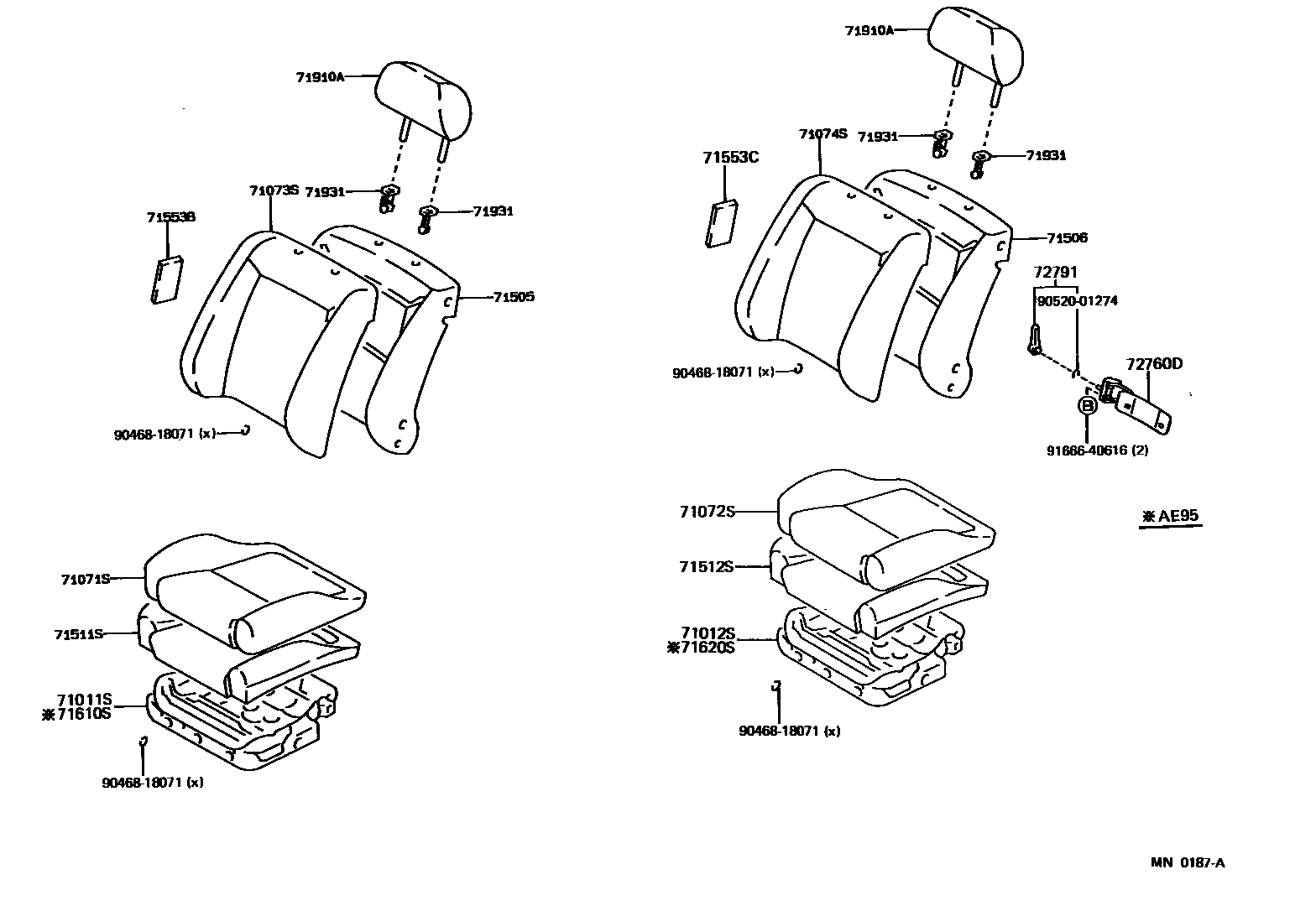

Toyota COROLLA 前排座椅和座椅滑轨 EPC diagram — MN0187A
前排座椅和座椅滑轨 — MN0187A (198708 – 999999)

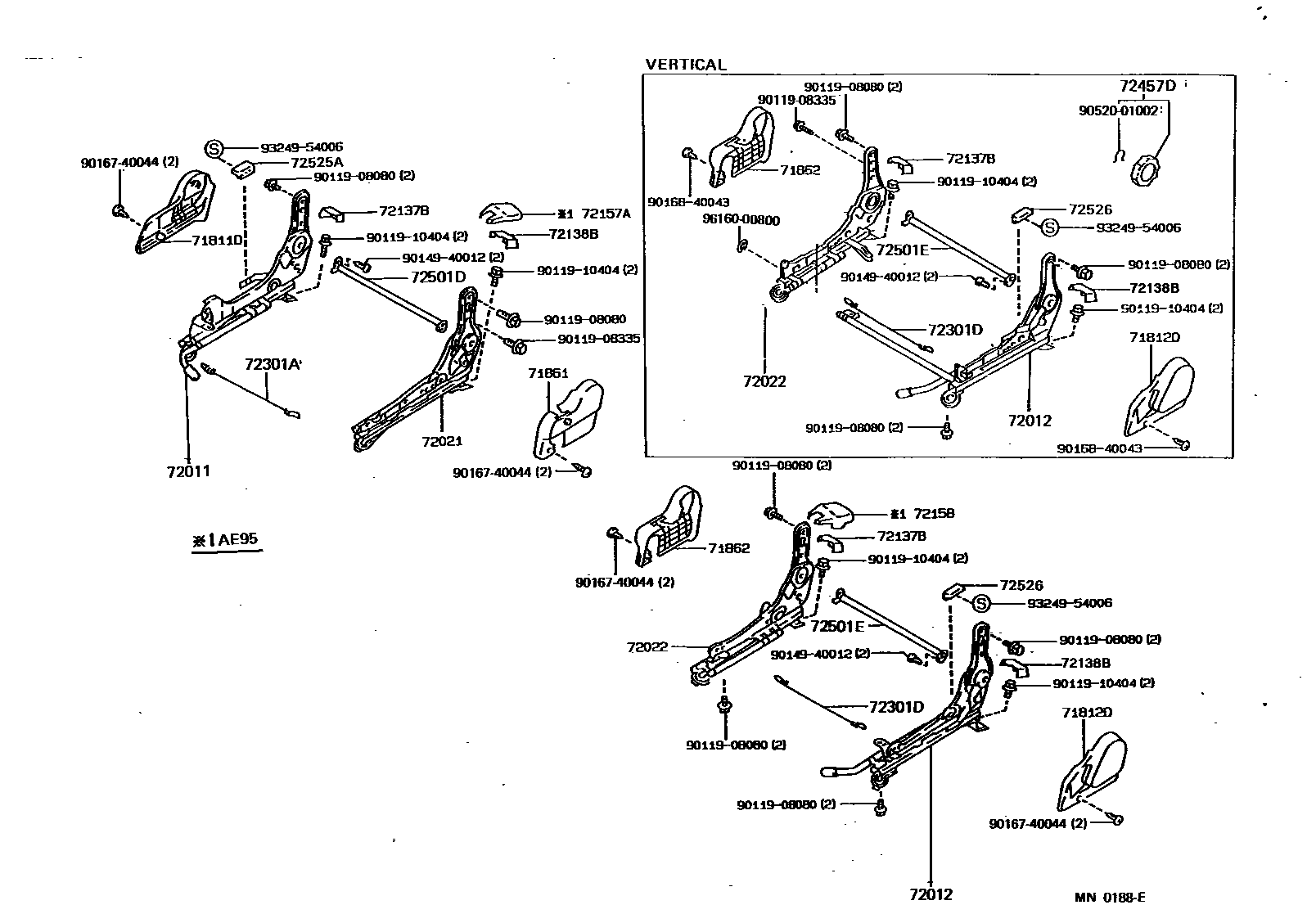

Toyota COROLLA 前排座椅和座椅滑轨 EPC diagram — MN0188E
前排座椅和座椅滑轨 — MN0188E (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
71011SFront right seat cushion frame sub-assembly71011-12270 · 71011-12380
71012SFront left seat cushion frame sub-assembly71011-12270 · 71012-12200
71505Front right seat back cushion sub-assembly with frame71505-12070
71506Front left seat back cushion sub-assembly with frame71505-12070 · 71505-12080
71511SFront right seat cushion cushion (for split seats)71511-12590 · 71511-12610 · 71511-12670 · 71511-12680
71512SFront left seat cushion cushion (for split seats)71511-12590 · 71511-12610 · 71511-12670 · 71511-12680
71553BFront B seat back cushion71553-12230 · 71553-12250 · 71553-12260
71553CFront C seat back cushion71553-12230 · 71553-12260
71610SFront right seat cushion spring assembly (for split seats)71610-12300
71620SFront left seat cushion spring assembly (for split seats)71610-12300
72011Front right seat outer adjuster sub-assembly72011-12150 · 72011-12160 · 72011-12170 · 72011-12180
72012Front left seat outer adjuster sub-assembly72012-12160 · 72012-12170 · 72012-12180 · 72012-12190 · 72012-12220 · 72012-12230 · 72012-12240 · 72012-12250
72021Front right seat inner adjuster sub-assembly72021-12170 · 72021-12180 · 72021-12190 · 72021-12200
72022Front left seat inner adjuster sub-assembly72022-12170 · 72022-12180 · 72022-12190 · 72022-12200 · 72022-12210 · 72022-12220 · 72022-12230 · 72022-12240
72301ARight seat slide rail balance harness sub-assembly72301-12040 · 72301-12110
72301DLeft seat slide rail balance harness sub-assembly72301-12040 · 72301-12110
72501DRight seat back recline adjuster connecting pipe sub-assembly72501-12050 · 72501-12070 · 72501-12090
72501ELeft seat back recline adjuster connecting pipe sub-assembly72501-12050 · 72501-12070 · 72501-12090
72760DLeft lumbar support adjuster assembly72760-12090
