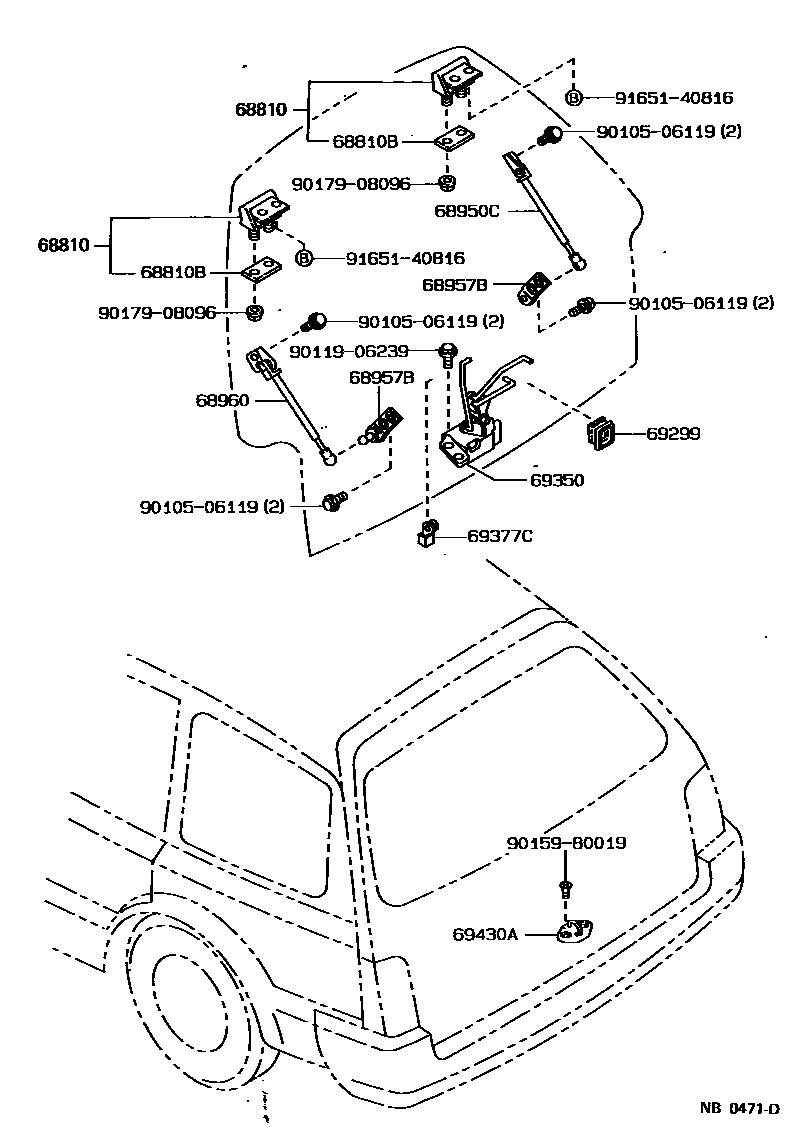

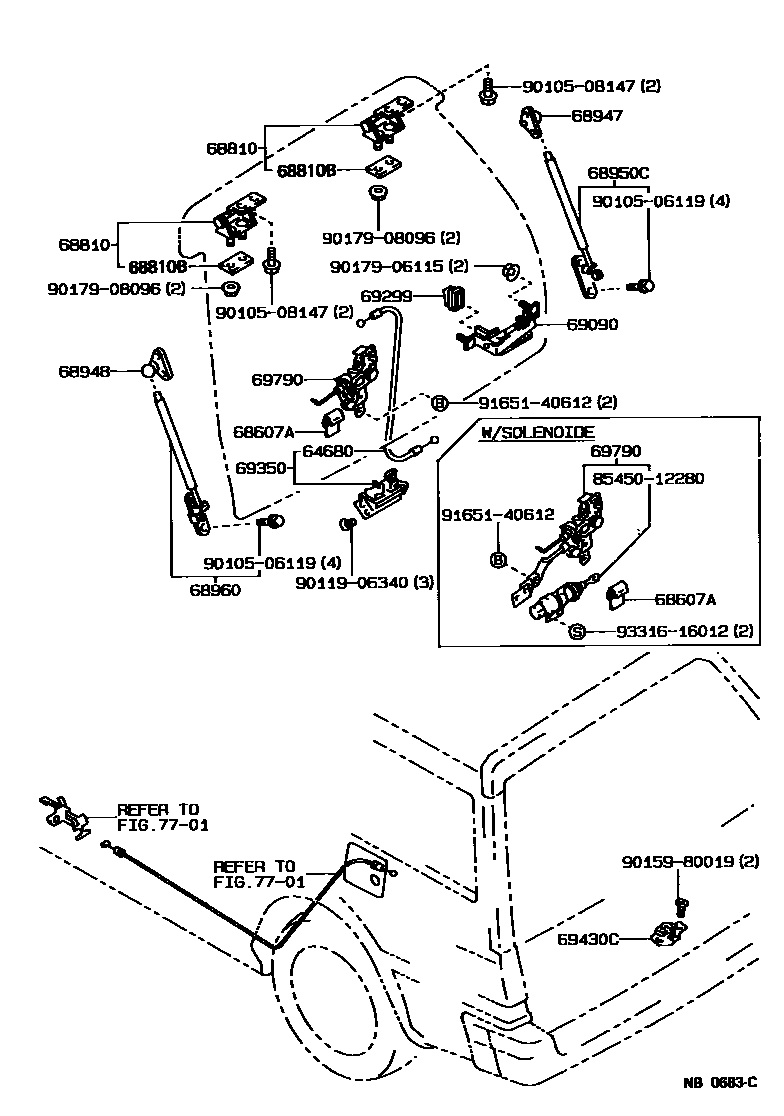

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64680 | Rear door lock control cable assembly | 64680-12010 |
| 68607A | Clip No. 1 (for rear door lock control cable) | 69749-12010 |
| 68810 | Back door upper hinge assembly | 68801-12050 · 68801-12051 · 68801-13080 · 68801-13081 |
| 68810B | Back door hinge gasket | 68838-14021 · 68838-14022 |
| 68947 | Back door right damping strut lower bracket | 68945-12020 |
| 68948 | Rear door left damping strut lower bracket | 68945-12020 |
| 68950C | Back door right support rod assembly | 68950-13080 · 68950-13090 · 68950-19625 · 68950-19626 · 68950-19645 · 68950-19646 |
| 68957B | Rear door support rod lower bracket | 68957-13010 |
| 68960 | Back door left support rod assembly | 68960-13080 · 68960-13090 · 68960-19315 · 68960-19316 · 68960-19335 · 68960-19336 |
| 69090 | Rear door outer handle assembly | 69090-12010 |
| 69299 | Rear door handle seal | 69299-12010 · 69299-13010 |
| 69350 | Rear door lock assembly | 69350-12161 · 69350-13080 · 69350-13100 |
| 69377C | Door lock lever buckle | 69377-13030 |
| 69430A | Back door lower lock assembly | 69430-13020 |
| 69430C | Back door lock assembly | 69430-12250 |
| 69790 | Rear door lock control assembly | 69790-12010 · 69790-12020 |
