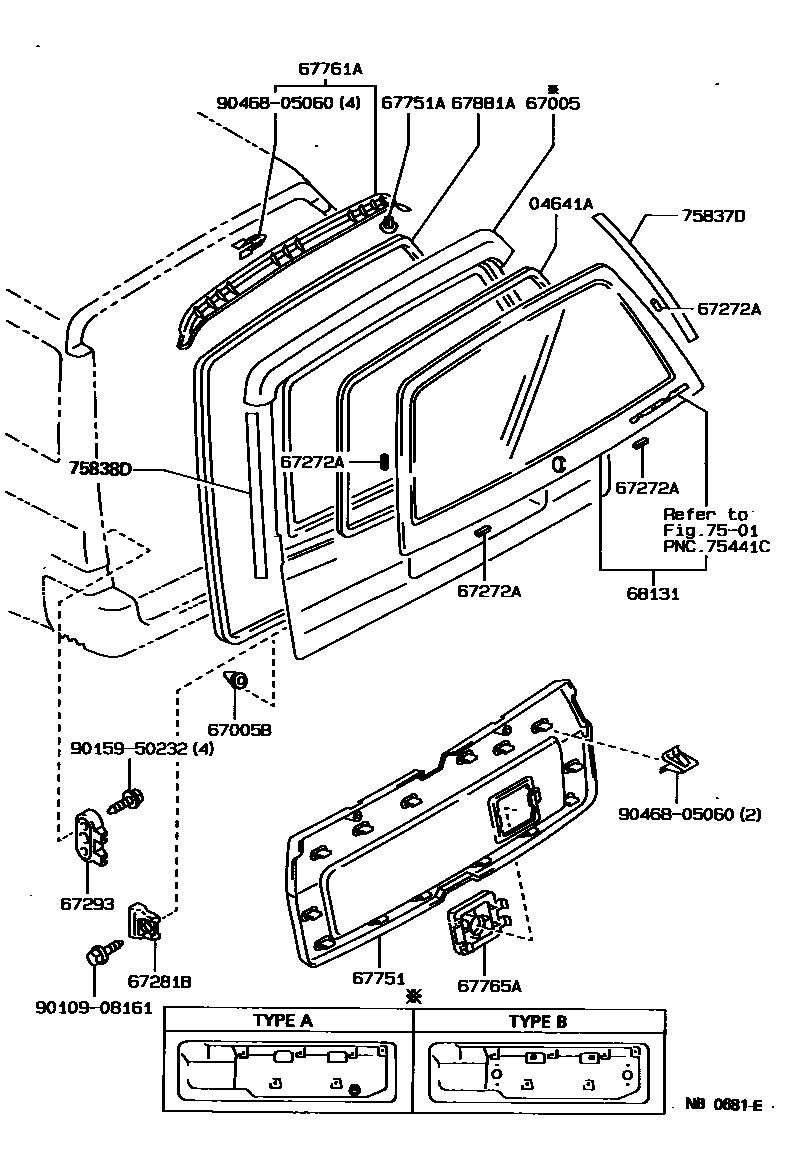

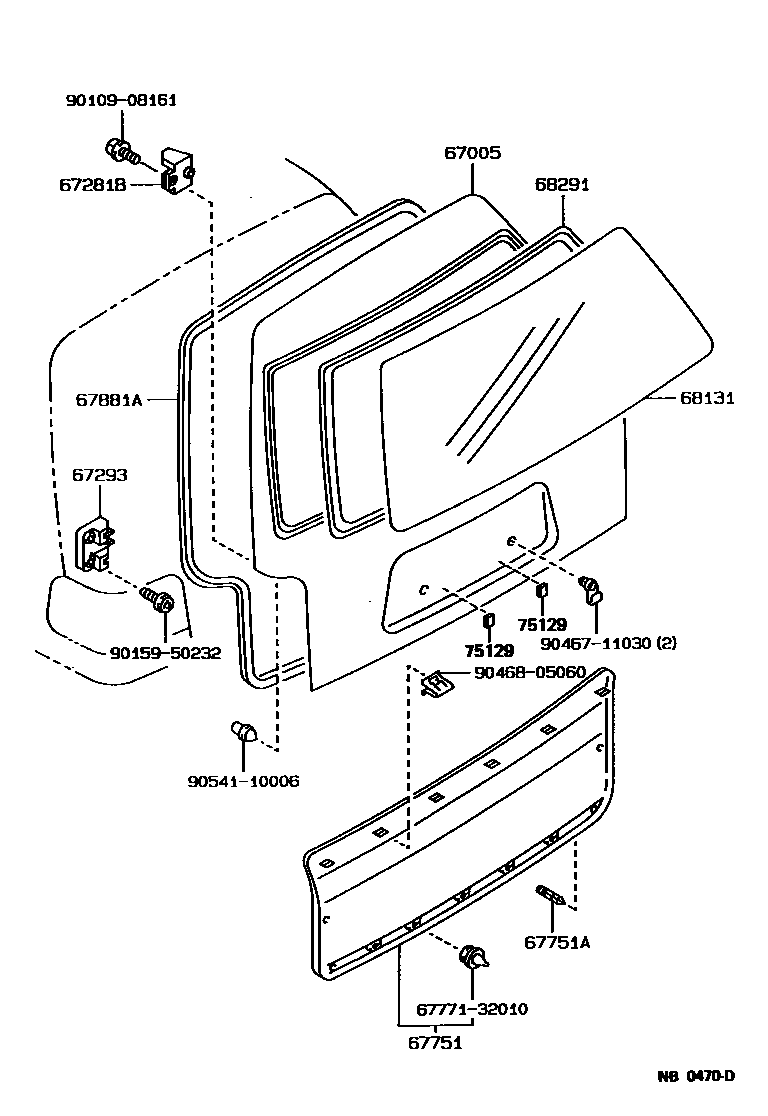

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 04562-12010 |
| 67005 | Rear door panel sub-assembly | 67005-13820 · 67005-13830 · 67005-1A490 · 67005-1A500 |
| 67005B | Cushion pad (for back door panel) | 64459-12010 · 90541-20002 |
| 67272A | No. 2 rear door stop buffer pad | 67272-12030 |
| 67281B | Back door lower block | 67281-13050 · 67283-12010 · 67284-12010 |
| 67293 | Back door lower block cushion | 67293-13010 · 67293-20020 |
| 67881A | Back door seal | 67881-12220 · 67881-13110 |
| 68131 | back door glass | 68131-13210 · 68131-13240 · 68131-1A030 · 68131-1A050 · 68131-1A190 · 68131-1A200 |
| 68291 | Rear door glass seal strip | 68291-13101 |
| 75129 | rear license plate cushion | 75129-22010 |
| 75837D | Decorative cover on the right side of the rear door | 75837-12050 |
| 75838D | Decorative cover on the left side of the rear door | 75837-12050 |
