Toyota COROLLA 角窗 — Figure 6103

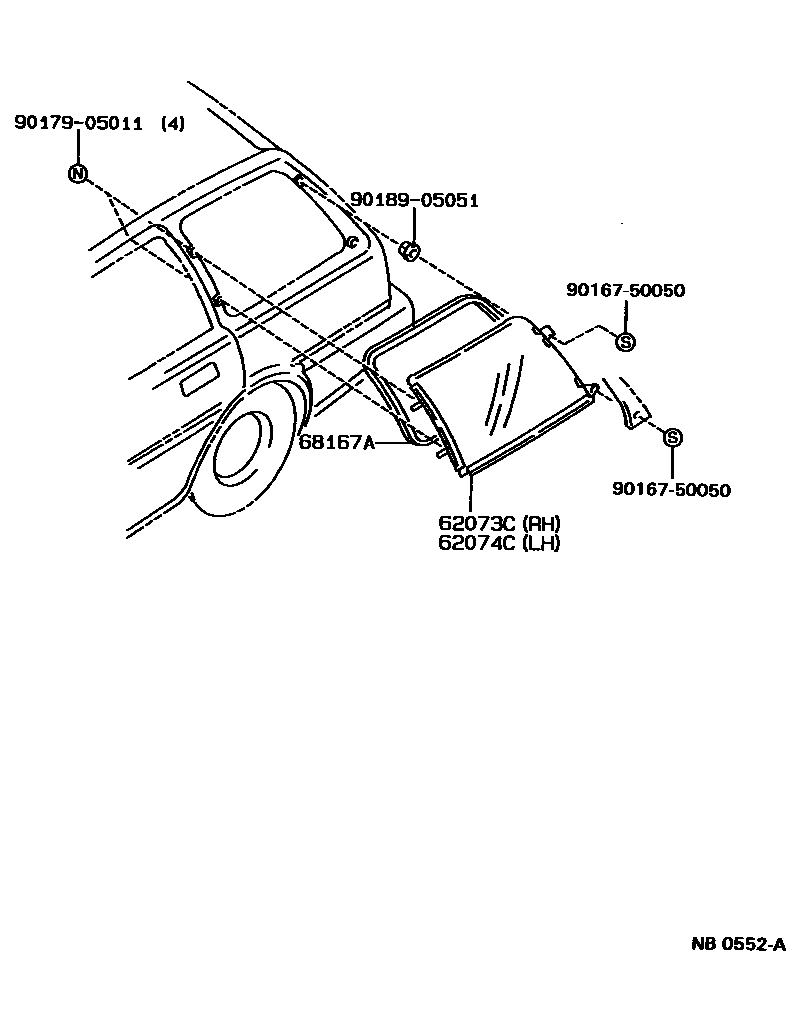

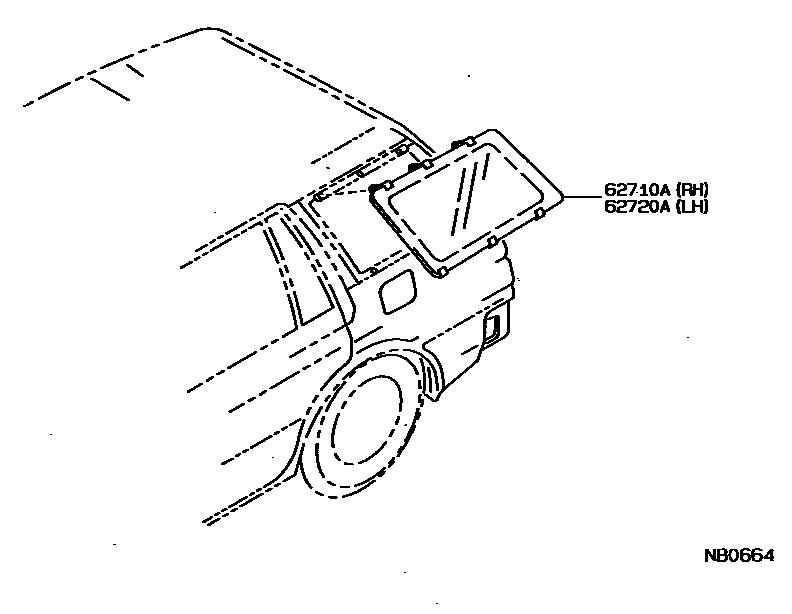

Toyota COROLLA EPC diagram 6103, 角窗, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62073C | Right rear corner window glass sub-assembly | 62073-13060 |
| 62074C | Left rear corner window glass sub-assembly | 62074-13060 |
| 62710A | Right corner window assembly | 62710-12620 · 62710-12621 |
| 62720A | Left corner window assembly | 62720-12620 · 62720-12621 |
| 68167A | Corner window No. 2 glass sealing strip | 68167-13010 |
