Toyota COROLLA 车侧通风装置 — Figure 6102
Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

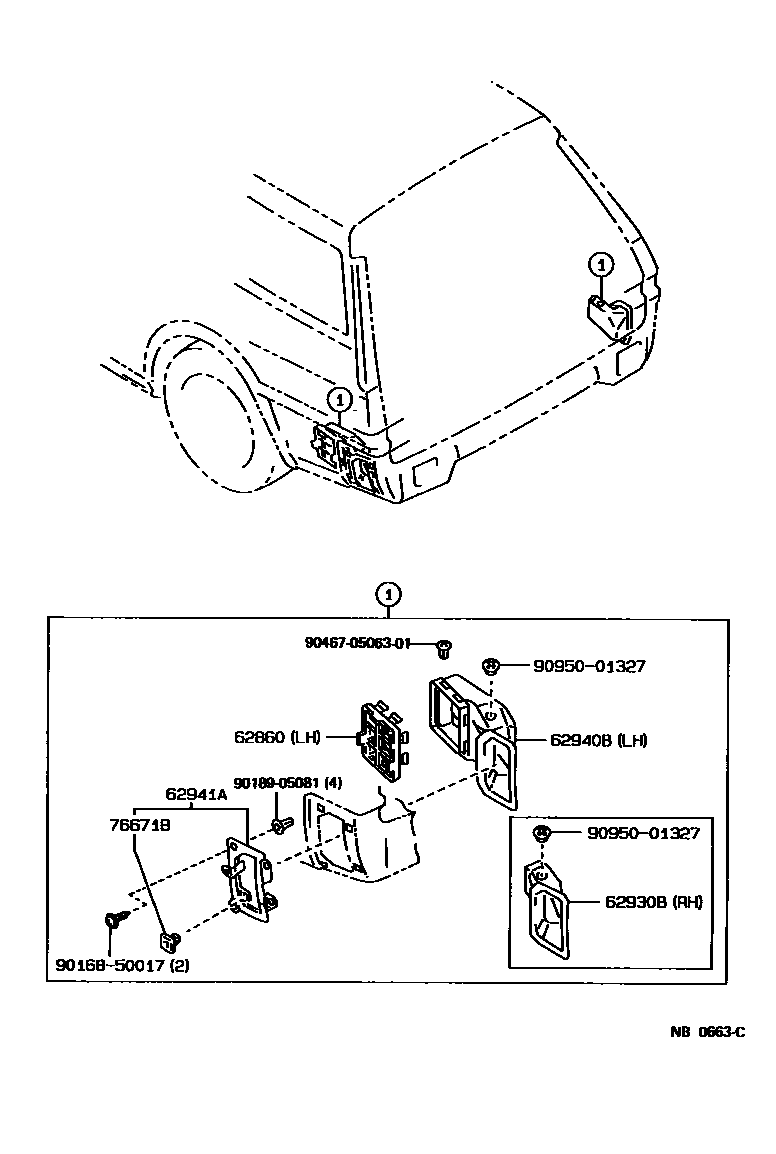

| 62860 | Left compartment pressure reducing valve assembly | 62850-12110 |

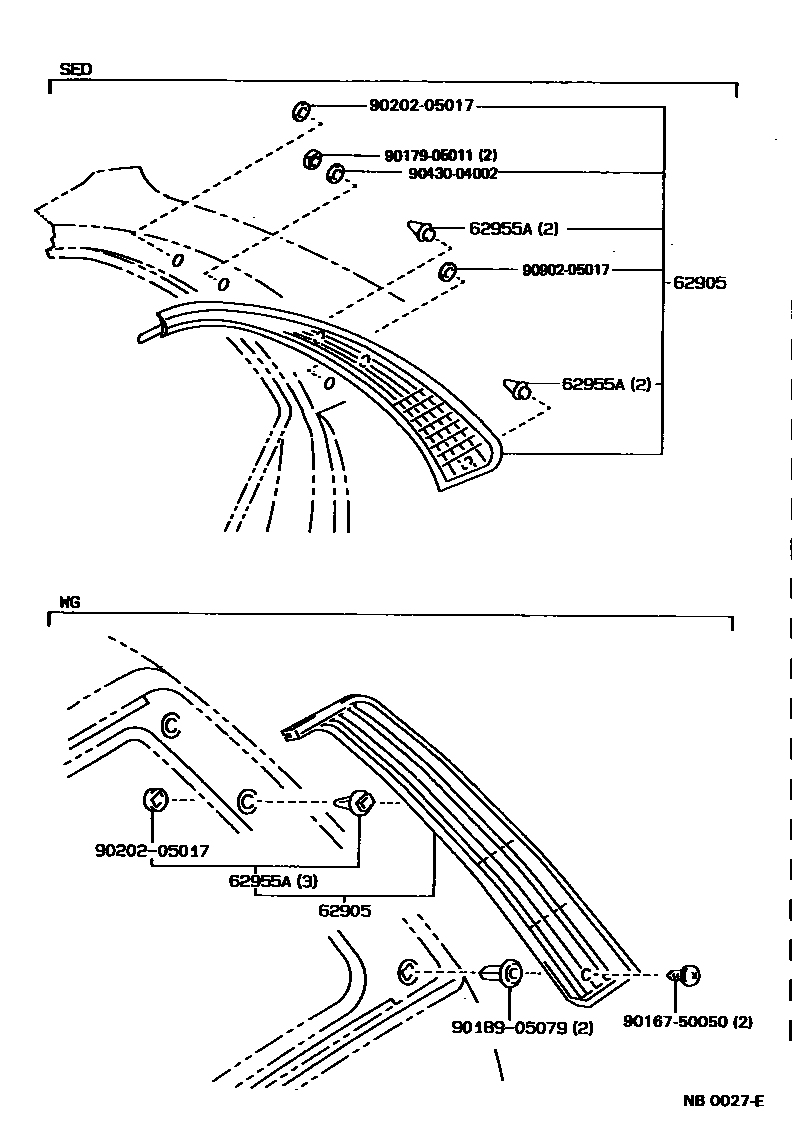

| 62905 | Side ventilation grilles | 62905-12250 · 62905-12310 · 62905-13060 · 62906-12250 · 62906-12310 · 62906-13060 |
| 62930B | Right side ventilation duct assembly | 62930-12080 · 62930-12081 |
| 62940B | Left side ventilation duct assembly | 62940-12090 · 62940-12091 |
| 62941A | Side ventilation duct fixings | 62941-12110 · 62942-12090 |
| 62955A | Side ventilation grille fixings | 62955-12020 · 62955-12040 · 62955-20020 |
| 76671B | Side ventilation duct fixing clip | 76671-12020 |
