Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

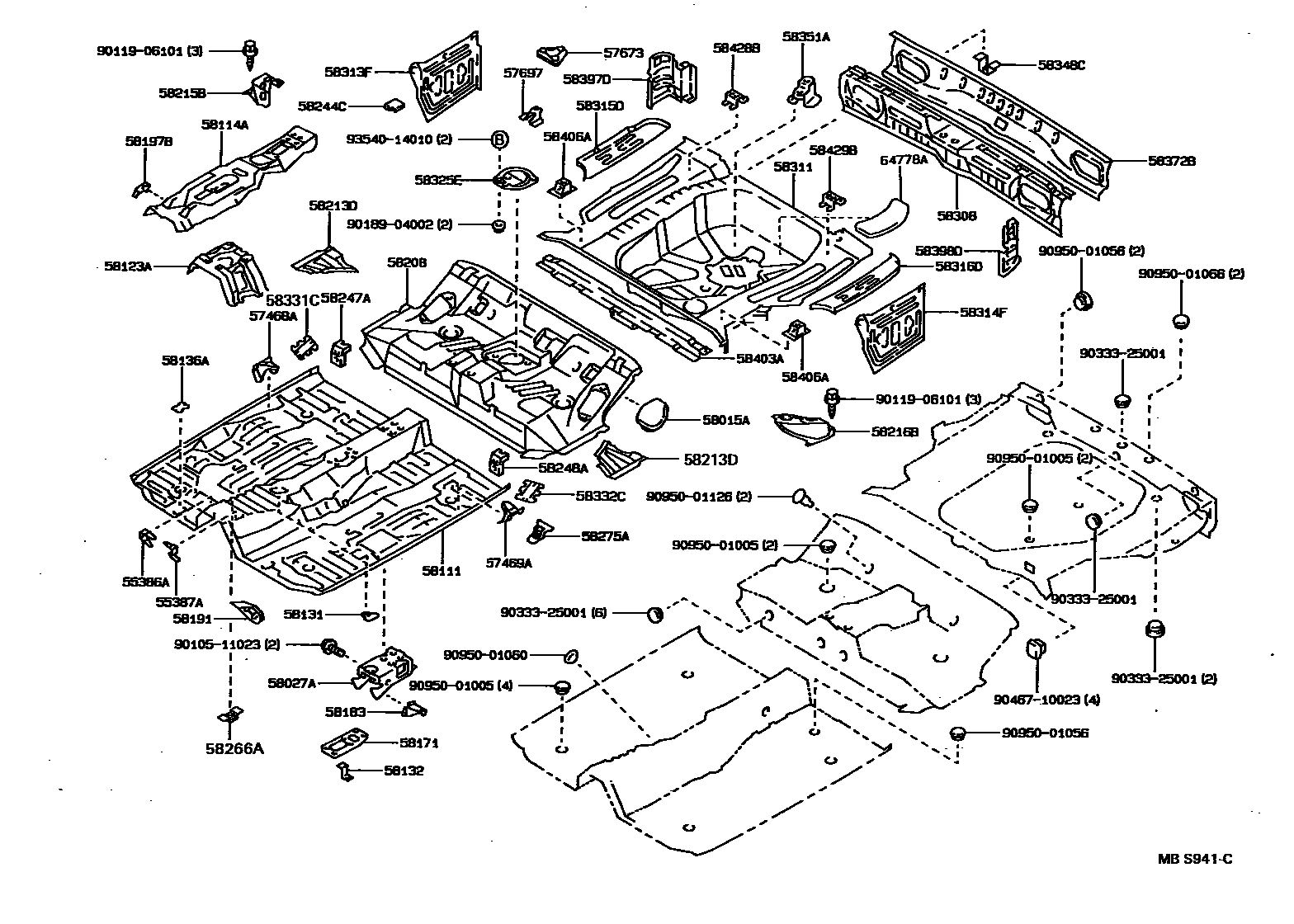

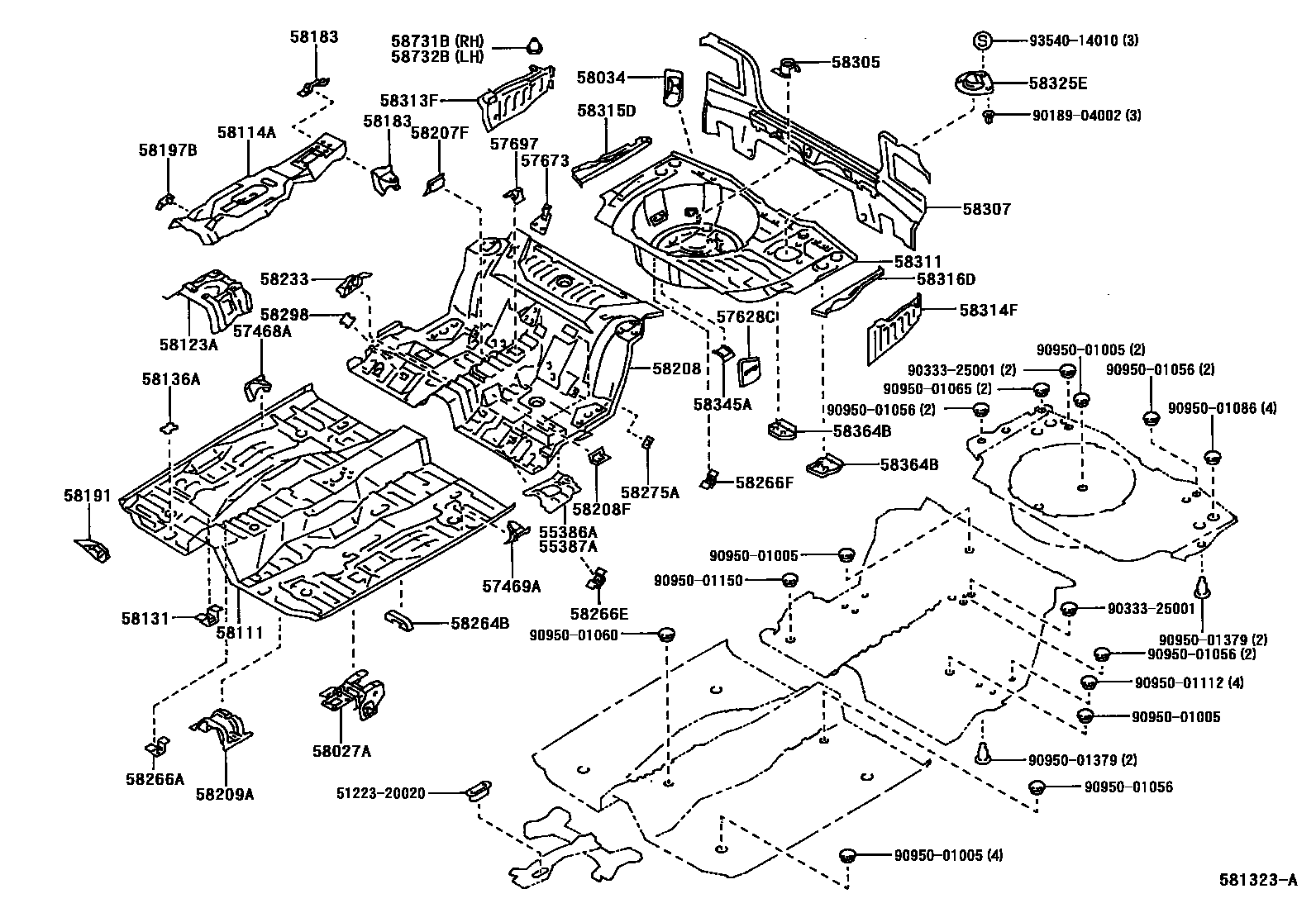

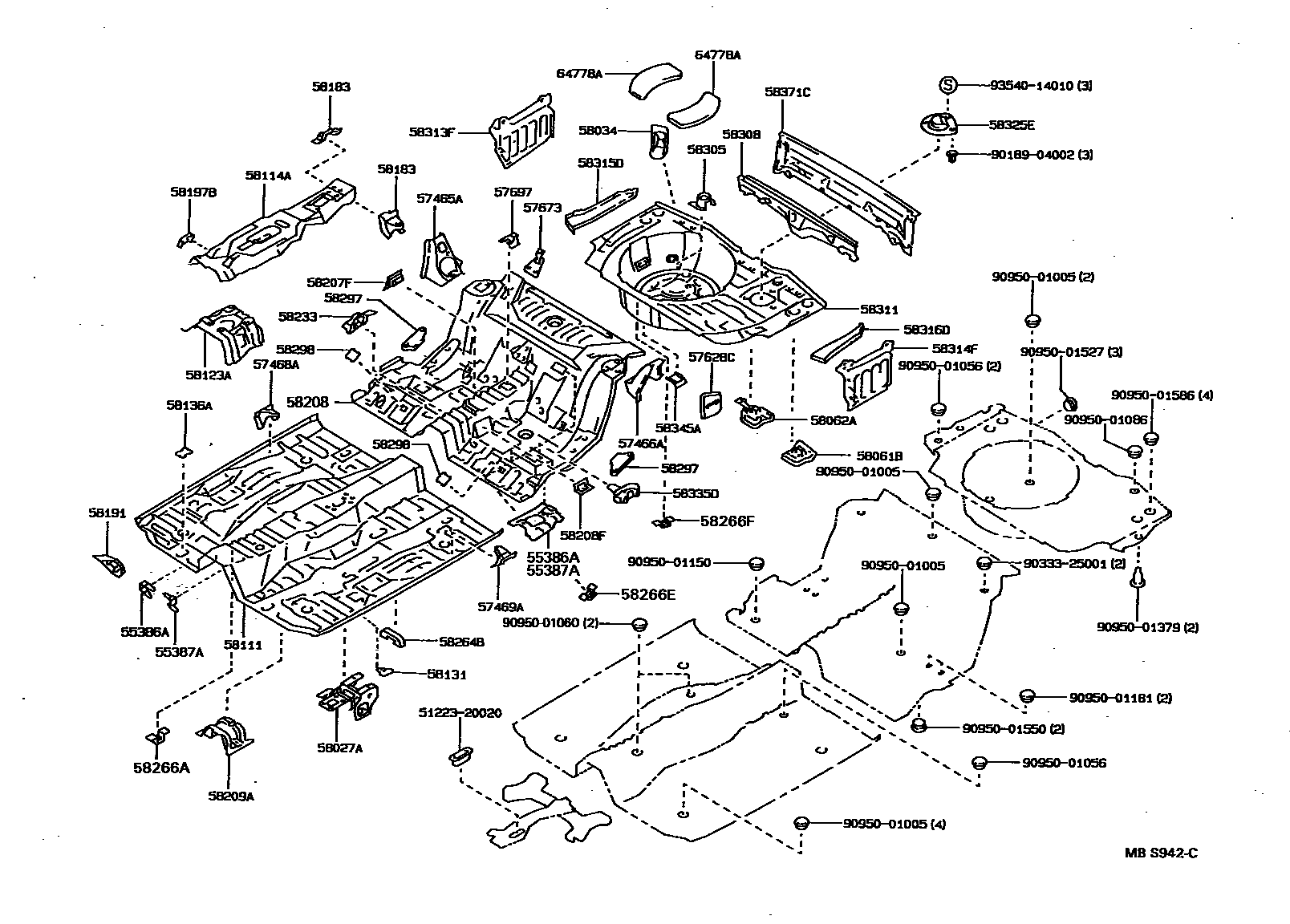

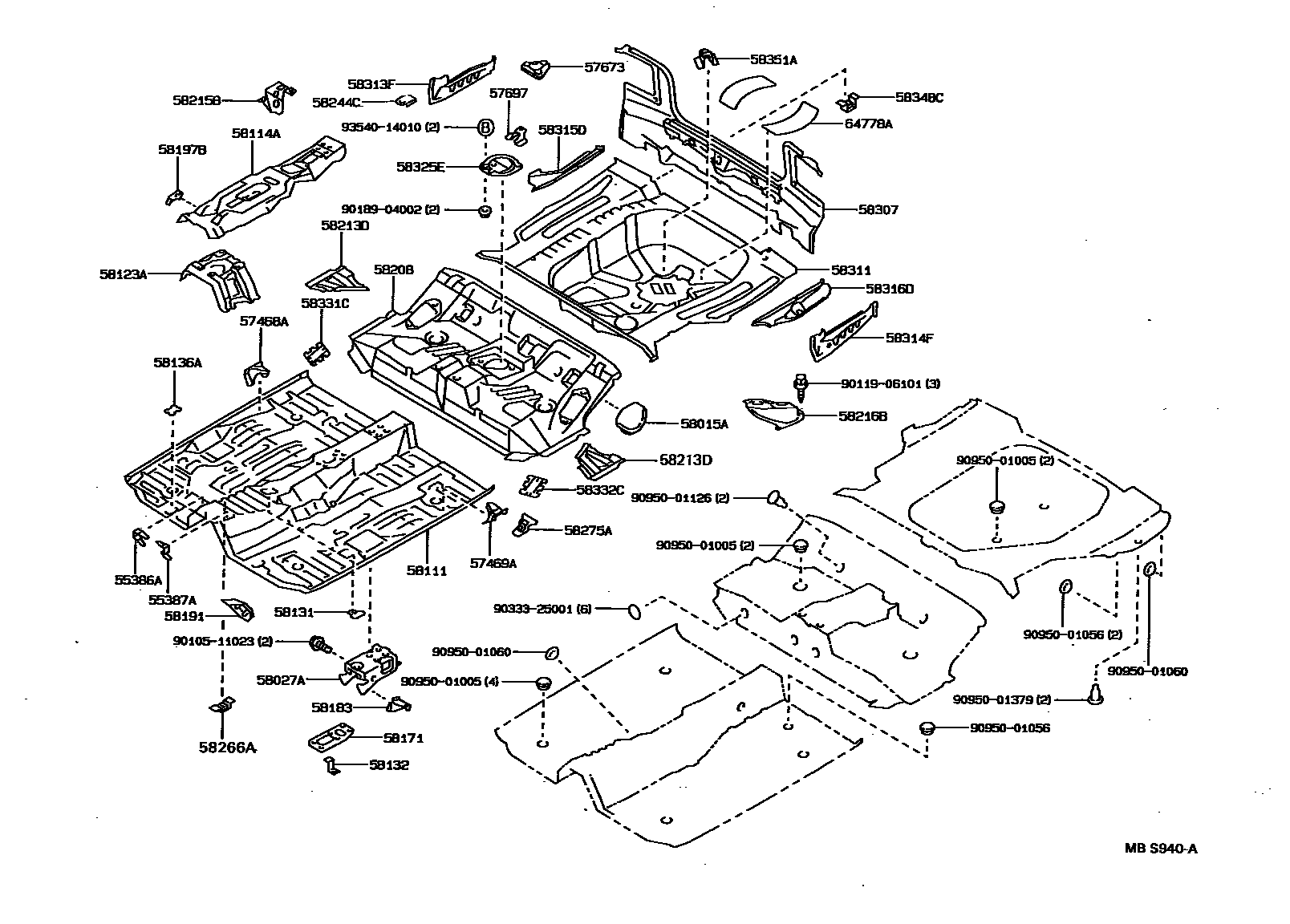

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 4 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55386A | No. 1 ECU mounting bracket | 55386-12040 · 55386-12050 |
| 55387A | No. 2 ECU mounting bracket | 55387-12020 · 55387-12050 |
| 57465A | Center floor right beam corner panel | 57465-12030 |
| 57466A | Center floor left transom corner panel | 57466-12010 |
| 57468A | Front right seat outer rear bracket | 57468-12030 · 57468-12040 |
| 57469A | Front left seat outer rear bracket | 57469-12030 · 57469-12040 |
| 57628C | Rear floor left longitudinal member cover | 57628-12051 |
| 57673 | Rear seat back hinge mounting bracket | 57607-12020 · 57607-12030 · 57673-12060 |
| 57697 | Rear seat cushion fixings | 57697-12020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12020 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12030 · 58027-12040 · 58027-12050 · 58027-12060 |
| 58034 | Rear exhaust pipe bracket sub-assembly | 58034-12020 |
| 58061B | Fuel tank right mounting bracket sub-assembly | 58061-12020 |
| 58062A | Fuel tank rear mounting bracket sub-assembly | 58062-12030 |
| 58111 | front floor pan | 58111-12200 · 58111-12210 · 58111-12211 |
| 58114A | front floor reinforcement | 58114-12050 · 58114-12060 · 58114-12061 |
| 58123A | shift lever bracket | 58123-12040 · 58123-12050 |
| 58131 | Front floor insulation pad bracket No. 1 | 58131-12050 · 58131-12060 |
| 58132 | Front floor insulation pad bracket No. 2 | 58132-32010 |
| 58136A | Front floor access hole cover | 58136-12020 |
| 58171 | Parking brake base reinforcement | 58171-12080 |
| 58183 | Front seat inner mounting bracket | 58183-12090 · 58183-12110 · 58184-12110 · 58184-12120 |
| 58191 | Front floor footrest | 58192-12040 · 58192-12050 |
| 58197B | Dashboard Bracket Mounting Bracket Fixture | 58197-12010 |
| 58207F | Right parking brake cable clip sub-assembly | 58207-12050 |
| 58208 | central floor base | 58211-12170 · 58211-12180 · 58211-12240 · 58211-12241 · 58211-12260 · 58211-12270 |
| 58208F | Left parking brake cable clip sub-assembly | 58208-12050 |
| 58209A | Drive shaft center bracket reinforcement sub-assembly | 58209-12030 |
| 58213D | Central floor reinforcement | 58213-12020 · 58214-12010 |
| 58215B | Rear right seat mounting bracket | 58215-16010 |
| 58216B | Rear left seat mounting bracket | 58216-16010 |
| 58233 | Exhaust pipe mounting bracket | 58233-12020 |
| 58244C | Rear right seat cushion mounting bracket | 58244-16030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12030 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12030 |
| 58264B | Parking brake cable guide bracket | 58264-12030 · 58264-12050 · 58264-12060 |
| 58266A | Fuel pipe clamp bracket | 58266-22040 |
| 58266E | Central fuel pipe clamp bracket | 58266-22040 |
| 58266F | Rear fuel pipe clamp bracket | 58266-22040 |
| 58275A | Rear seat back to center floor fixing | 58275-12010 · 58275-12020 |
| 58297 | Seat belt retractor to central floor fixing | 58297-12030 |
| 58298 | Center floor hole cover No. 2 | 58298-12020 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-12050 |
| 58307 | Body lower back panel sub-assembly | 58307-1A160 · 58307-1A161 · 58307-1A180 · 58307-1A181 |
| 58308 | Body inner lower back panel sub-assembly | 58308-12120 · 58308-13090 |
| 58311 | rear floor pan | 58311-12120 · 58311-12190 · 58311-12200 |
| 58313F | Rear floor pan to right side apron extension | 58313-12210 · 58313-12230 · 58313-12240 · 58313-13100 |
| 58314F | Rear floor pan to left side apron extension | 58314-12210 · 58314-12230 · 58314-12240 · 58314-13090 |
| 58315D | Rear floor pan right extension | 58315-12030 · 58315-12050 · 58315-12060 · 58315-13010 |
| 58316D | Rear floor pan left extension | 58316-12030 · 58316-12050 · 58316-12060 · 58316-13010 |
| 58325E | Rear floor access hole cover | 58325-12020 · 58325-12060 |
| 58331C | Rear floor right side access hole cover | 58331-12010 |
| 58332C | Rear floor left side access hole cover | 58332-12010 |
| 58335D | Rear floor right access hole seal | 58335-12010 |
| 58345A | Rear floor insulation pad bracket No. 1 | 58345-12040 |
| 58348C | Rear floor insulation pad bracket No. 3 | 58348-12010 |
| 58351A | Spare tire rack bracket | 58351-12020 |
| 58364B | fuel tank bracket | 58061-12030 · 58062-12050 |
| 58371C | Upper body and lower back panel | 58371-12710 |
| 58372B | Lower body panel | 58372-13060 |
| 58397D | Dust-proof sealing plate at the right end of the rear floor | 58397-13030 |
| 58398D | Dust-proof sealing plate at the left end of the rear floor | 58398-13020 |
| 58403A | Floor reinforcement sub-assembly | 58432-13030 |
| 58406A | Bottom plate bracket sub-assembly | 58406-13010 · 58407-13010 |
| 58428B | No. 5 bottom plate right bracket | 58428-13010 |
| 58429B | No. 5 base plate left bracket | 58428-13010 |
| 64778A | Spare tire protection device | 64778-12050 |
