Toyota COROLLA 后保险杠及附件 — Figure 5202

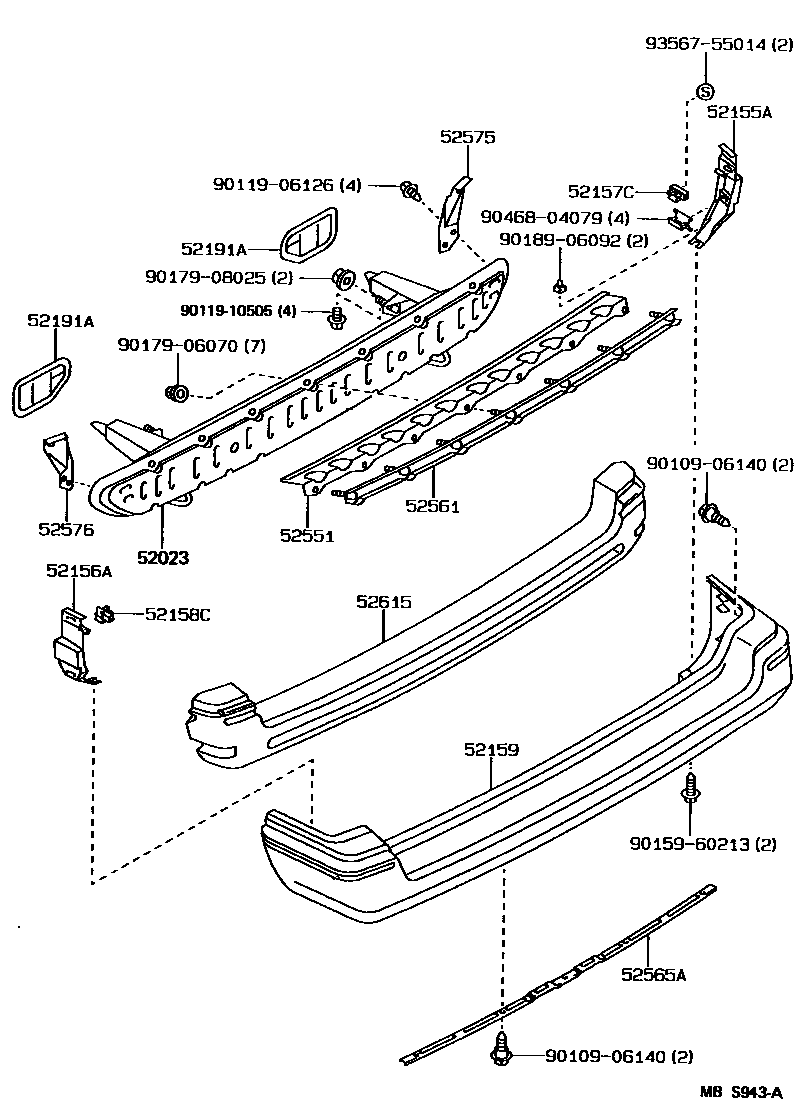

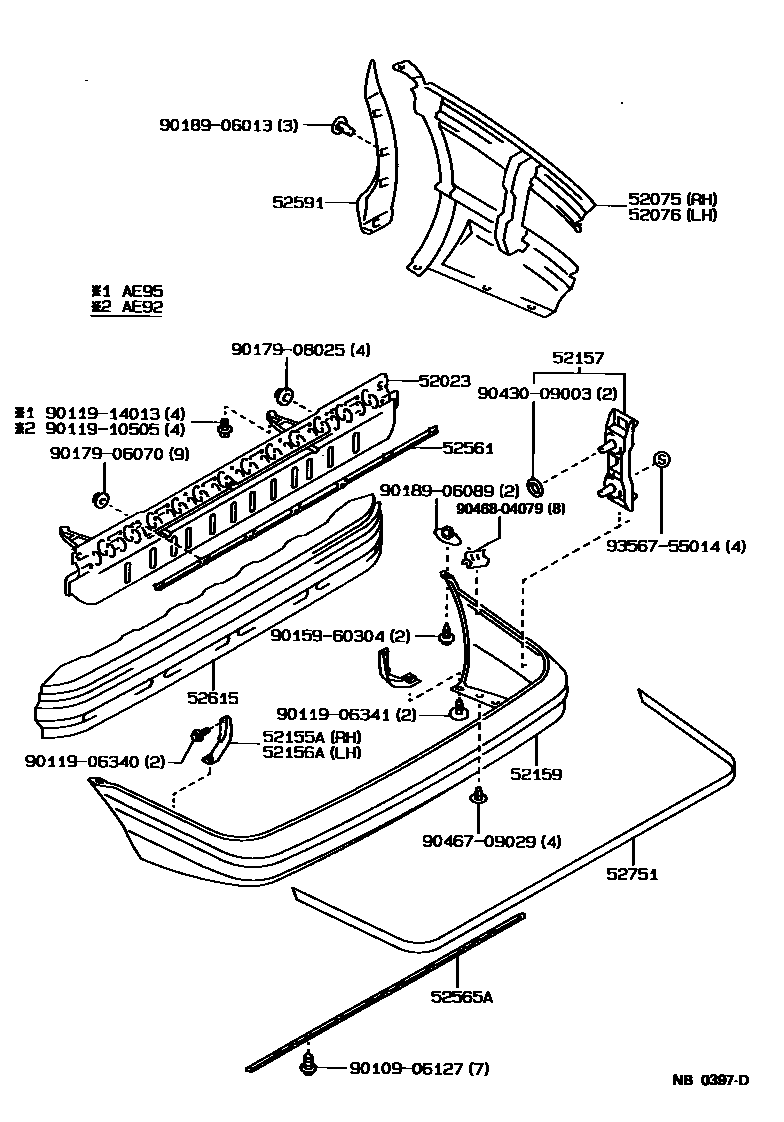

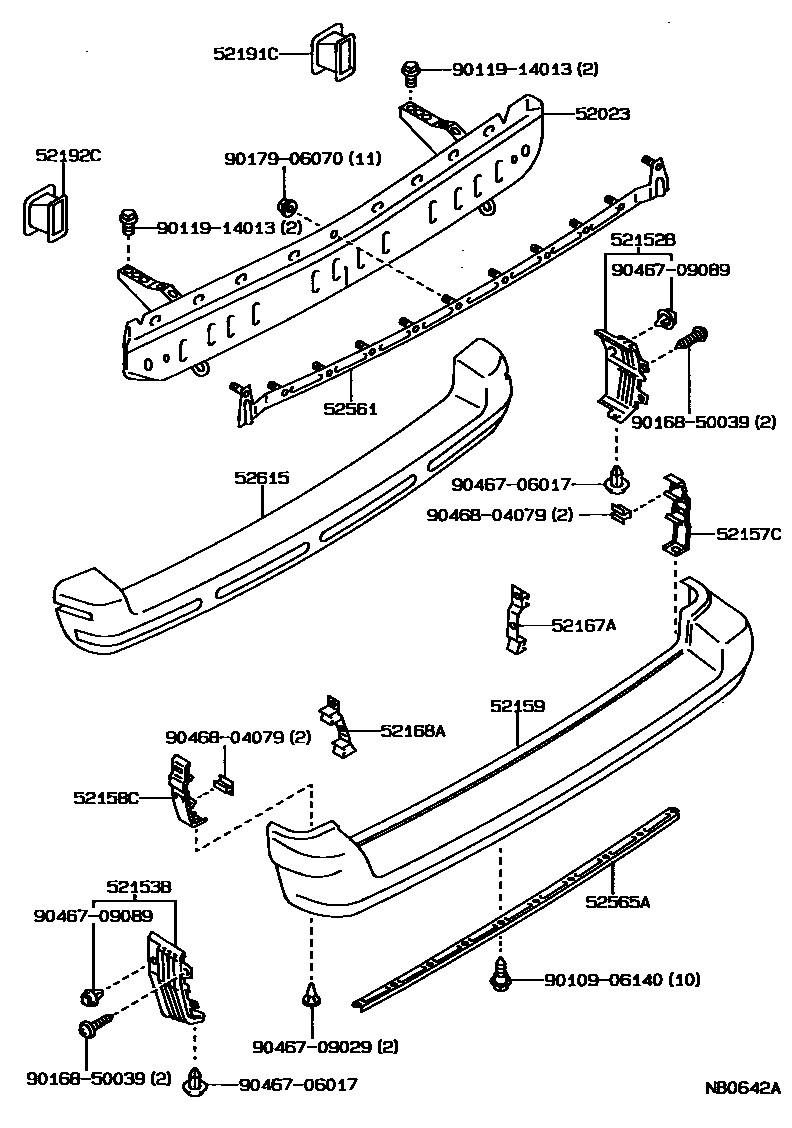

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12120 · 52023-12140 · 52023-12160 · 52023-13020 |
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-12010 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-12010 |
| 52152B | Rear bumper right extension | 52152-12250 |
| 52153B | Rear bumper left extension | 52153-12250 |
| 52155A | Rear bumper right side bracket | 52155-12150 · 52155-13040 |
| 52156A | Rear bumper left bracket | 52156-12140 · 52156-12170 · 52156-13040 |
| 52157 | Rear bumper No. 2 side bracket | 52157-12130 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-12110 · 52157-13020 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-12060 · 52158-13020 |
| 52159 | rear bumper cover | 52159-12730 · 52159-12840 · 52159-12917 · 52159-13040 · 52159-1A100 · 52159-1A900 |
| 52167A | Rear bumper No. 4 right side bracket | 52167-12030 |
| 52168A | Rear bumper No. 4 left side bracket | 52168-12020 |
| 52191A | Rear bumper arm seal | 52191-13110 · 52192-13100 |
| 52191C | Rear bumper right arm seal | 52191-12020 |
| 52192C | Rear bumper left arm seal | 52192-12010 |
| 52551 | Rear bumper curved filler | 52551-13030 |
| 52561 | Rear bumper upper center fixing bracket | 52508-12010 · 52561-12070 · 52561-13020 |
| 52565A | Rear bumper lower fixing bracket | 52565-12070 · 52565-12170 · 52565-13010 |
| 52575 | Rear bumper right side fixing bracket | 52575-13010 |
| 52576 | Rear bumper left side fixing bracket | 52576-13010 |
| 52591 | Rear bumper right seal | 52591-12050 · 52591-12051 |
| 52615 | Rear bumper energy absorber | 52615-12080 · 52615-12100 · 52615-13020 |
| 52751 | Rear bumper protection strip | 52751-12130 |
