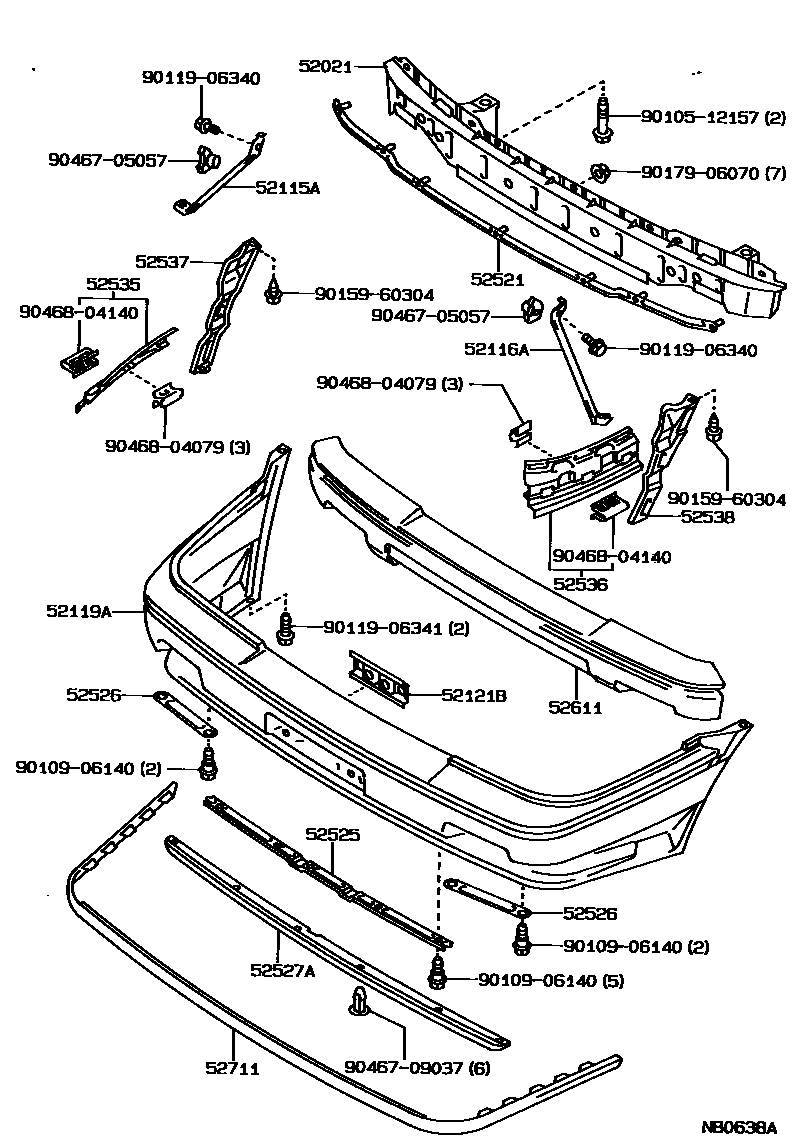

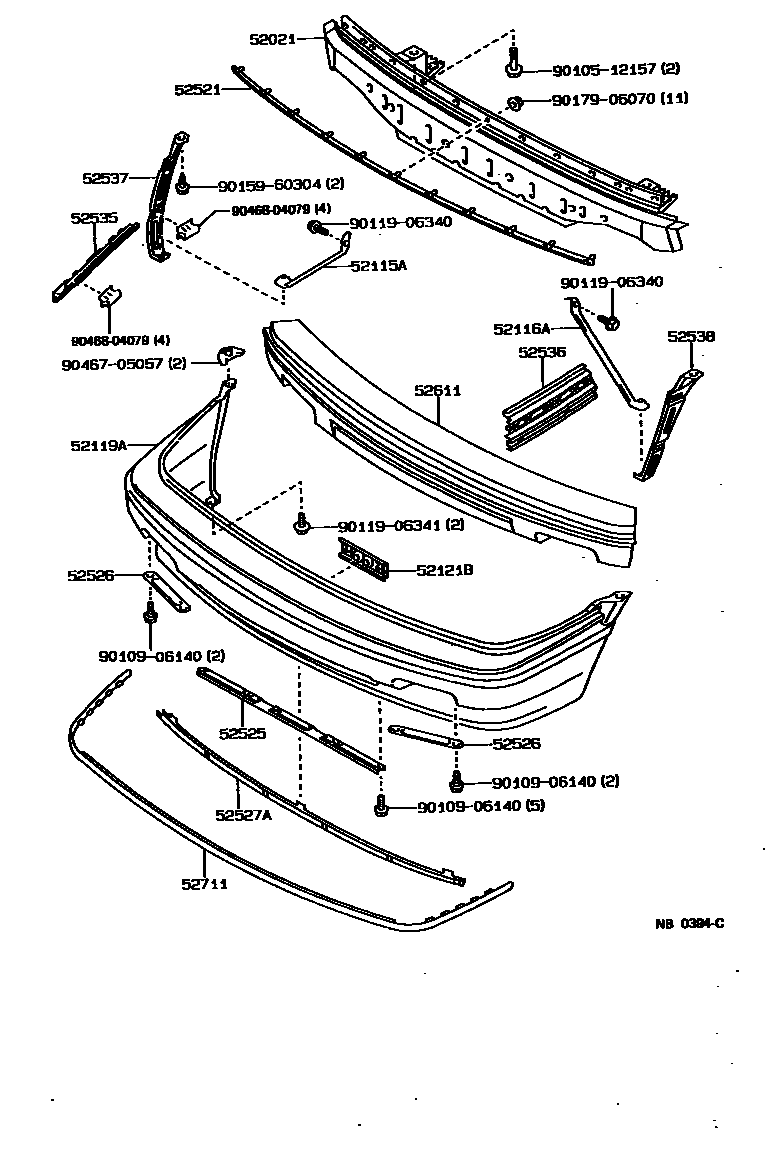

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12150 · 52021-12170 |
| 52115A | Front bumper right side bracket | 52115-12260 · 52115-12270 |
| 52116A | Front bumper left bracket | 52116-12200 · 52116-12210 |
| 52119A | front bumper cover | 52119-12350 · 52119-12917 · 52119-1A170 · 52119-1A320 · 52119-1A900 |
| 52121B | Front license plate mounting bracket | 52121-12110 |
| 52521 | Front bumper upper center fixing bracket | 52521-12080 · 52521-12090 · 52521-12091 |
| 52525 | Front bumper lower center fixing bracket | 52525-16050 |
| 52526 | Front bumper lower side fixing bracket | 52526-12030 |
| 52527A | Front bumper No. 2 lower center fixing bracket | 52527-12020 · 52527-12040 |
| 52535 | Front bumper right side fixing bracket | 52535-12030 · 52535-12040 |
| 52536 | Front bumper left fixed bracket | 52536-12030 · 52536-12050 |
| 52537 | Front bumper right end fixing bracket | 52537-12020 · 52537-12030 |
| 52538 | Front bumper left end fixing bracket | 52538-12010 · 52538-12020 |
| 52611 | front bumper energy absorber | 52611-12110 · 52611-12130 |
| 52711 | Front bumper protection strip | 52711-12110 |
