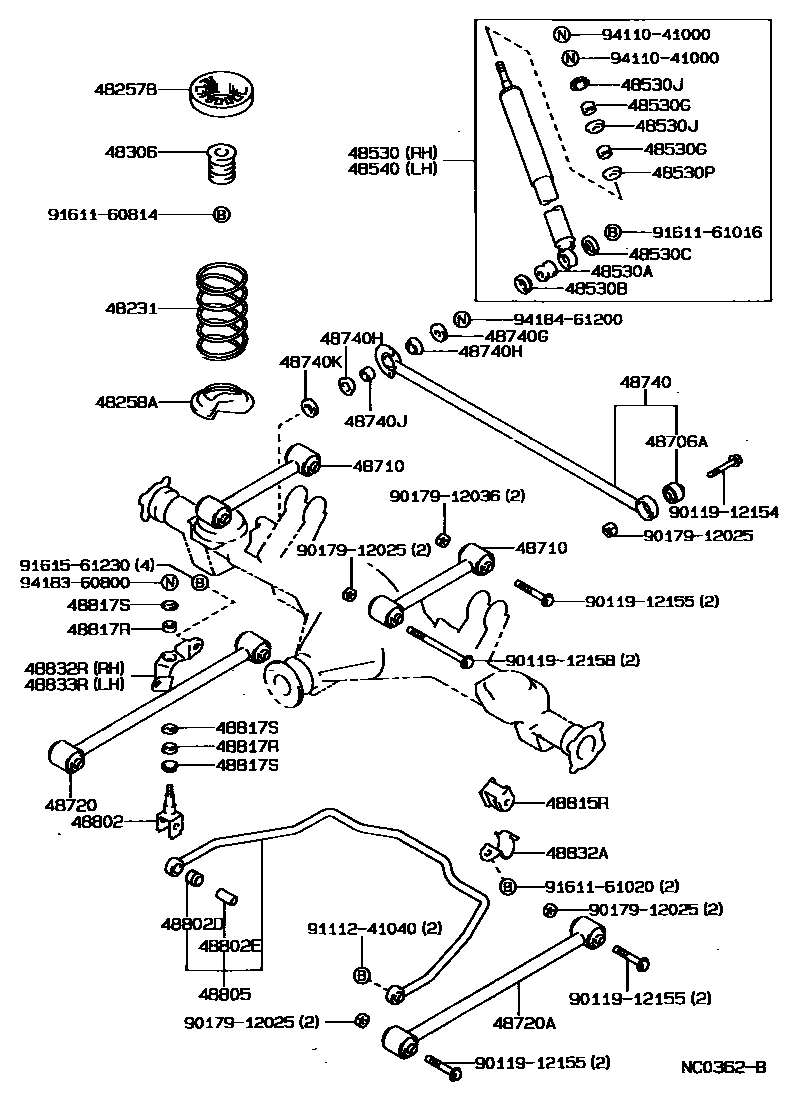

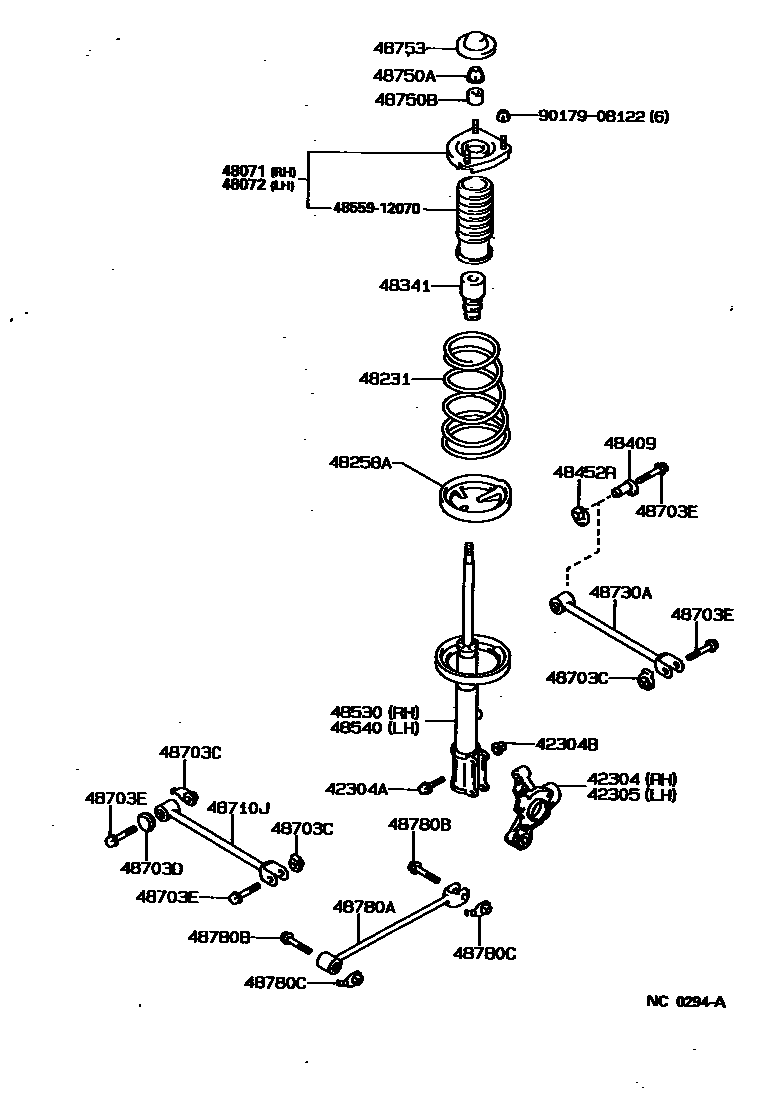

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-12020 |
| 42304A | Bolts (for rear axle bracket) | 90105-12102 |
| 42304B | Nut (for rear axle bracket) | 90179-12025 |
| 42305 | Rear axle left bracket sub-assembly | 42305-12020 |
| 48071 | Right rear suspension bearing sub-assembly | 48071-12030 · 48071-12100 |
| 48072 | Left rear suspension bearing sub-assembly | 48072-12030 · 48072-12100 |
| 48231 | rear coil spring | 48231-12890 · 48231-1A340 · 48231-1A440 · 48231-1A470 · 48231-1A550 · 48231-1A560 · 48231-1A610 · 48231-1A820 · 48231-1A860 · 48231-1E540 |
| 48257B | Rear coil spring upper vibration isolation pad | 48257-12020 |
| 48258A | Rear coil spring lower vibration isolation pad | 48258-12010 · 48258-12020 |
| 48306 | Rear spring buffer block sub-assembly | 48306-12070 |
| 48341 | Rear spring buffer block | 48341-12120 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-12040 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32020 |
| 48530 | Right rear shock absorber assembly | 48530-12160 · 48531-80080 · 48531-80085 · 48531-80099 · 48531-80101 |
| 48530A | Bushing (for rear shock absorber) | 90385-16004 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-02047 · 90948-03012 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01003 · 90948-01018 |
| 48530J | No. 1 cushion block (for rear shock absorber) | 90948-02002 |
| 48530P | No. 2 buffer pad block (for rear shock absorber) | 90948-02007 |
| 48540 | Left rear shock absorber assembly | 48531-80080 · 48531-80085 · 48531-80099 · 48531-80101 · 48540-12100 |
| 48703C | Nut (for rear suspension arm) | 90179-12063 · 90179-12064 |
| 48703D | Washers (for rear suspension arms) | 90209-13005 |
| 48703E | Bolts (for rear suspension arms) | 90119-12145 · 90119-12146 · 90119-12150 · 90119-12152 |
| 48706A | Rear transverse control rod bushing sub-assembly | 48706-14010 |
| 48710 | Upper control arm assembly | 48710-12140 |
| 48710J | Rear suspension No. 1 arm assembly | 48710-12040 |
| 48720 | Right lower control arm assembly | 48720-12080 |
| 48720A | Left rear suspension No. 1 arm assembly | 48720-12080 |
| 48730A | Rear suspension No. 2 arm assembly | 48730-12010 |
| 48740 | Rear transverse control rod assembly | 48740-12040 |
| 48740G | No. 1 flat washer (for rear transverse control lever) | 90201-12010 |
| 48740H | Bushing No. 1 (for rear transverse control rod) | 90385-20001 · 90385-20007 |
| 48740J | Bushing No. 2 (for rear transverse control rod) | 90386-20001 |
| 48740K | No. 2 flat washer (for rear transverse control lever) | 94612-12000 |
| 48750A | Nut (for rear mount to rear shock absorber) | 90179-14015 |
| 48750B | Collar (for rear mount to rear shock absorber) | 90387-15012 |
| 48753 | Rear suspension mount cover | 48753-12010 |
| 48780A | Rear support rod assembly | 48780-12010 |
| 48780B | Bolts (for support rods) | 90119-12146 · 90119-12152 |
| 48780C | Nut (for support rod) | 90179-12062 · 90179-12063 |
| 48802 | Stabilizer bar connecting rod sub-assembly | 48802-12040 |
| 48802D | Stabilizer bar connecting rod bushing | 90385-11021 |
| 48802E | Spacer (for rear stabilizer bar) | 90560-10275 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-12050 · 48805-12070 · 48805-12090 |
| 48815R | Rear stabilizer bar bushing | 48815-14050 · 48815-20020 · 48815-30070 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-12010 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02024 · 90948-02025 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-22020 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-12011 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-12011 |
