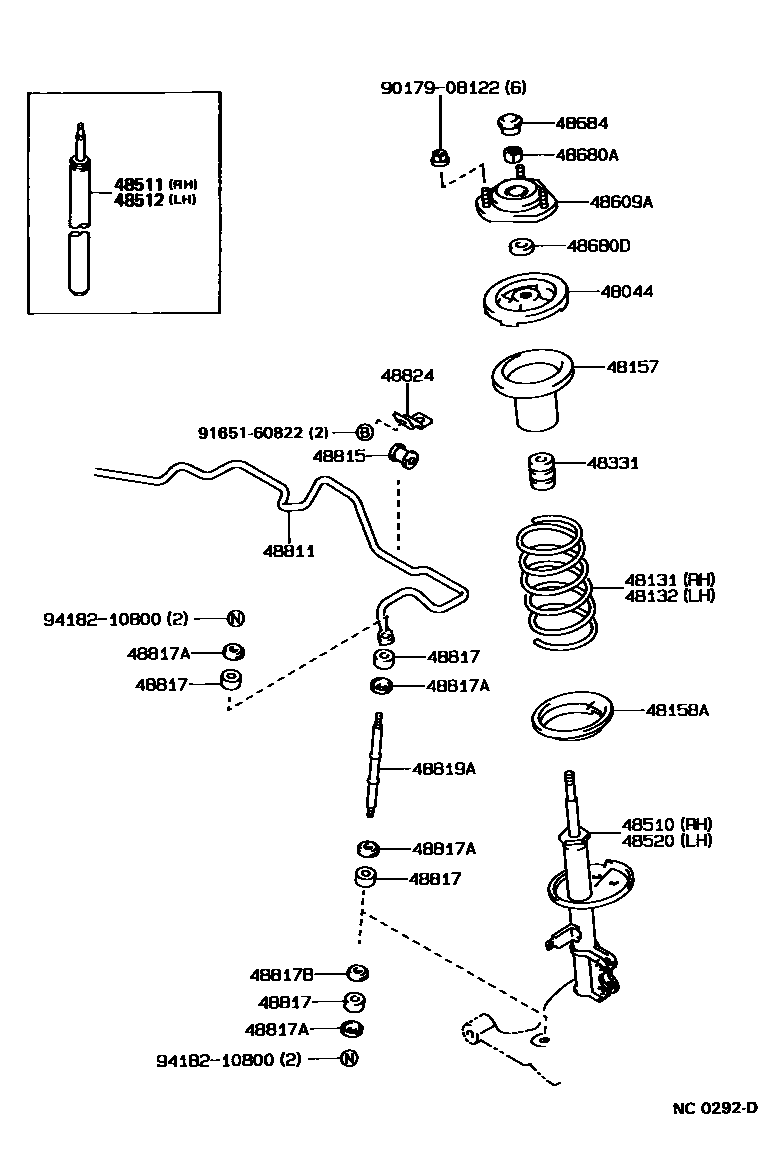

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48044 | No. 1 front spring seat sub-assembly | 48044-12090 |
| 48131 | Right front coil spring | 48131-1E720 · 48131-1E740 · 48131-1E760 · 48131-1E780 · 48131-1H260 · 48131-1H370 · 48131-1H550 · 48131-1H650 · 48131-1H670 · 48131-1H690 · 48131-1H710 · 48131-1K040 · 48131-1K060 · 48131-1K080 |
| 48132 | Left front coil spring | 48131-1E720 · 48131-1E740 · 48131-1E760 · 48131-1E780 · 48131-1E800 · 48131-1H550 · 48131-1H650 · 48131-1H670 · 48131-1H690 · 48131-1H710 · 48131-1H730 · 48131-1K060 · 48131-1K080 · 48131-1K100 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-12060 |
| 48158A | Front coil spring lower vibration isolation pad | 48158-12030 |
| 48331 | No. 1 front spring buffer block | 48331-12100 · 48331-12120 · 48331-12130 |
| 48510 | Right front shock absorber assembly | 48510-12520 · 48510-12650 · 48510-12651 · 48510-12660 · 48510-12661 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-12310 · 48511-12360 · 48511-12370 · 48511-12420 · 48511-12430 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-12310 · 48511-12360 · 48511-12370 · 48511-12420 · 48511-12430 |
| 48520 | Left front shock absorber assembly | 48520-12390 · 48520-12520 · 48520-12521 · 48520-12530 · 48520-12531 |
| 48609A | Front suspension support sub-assembly | 48609-12190 · 48609-12191 · 48609-12192 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-12580 · 48811-12670 · 48811-12690 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12140 · 48815-12180 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48819A | front stabilizer bar bolt | 48819-20030 |
| 48824 | front stabilizer bar bracket | 48824-12090 |
